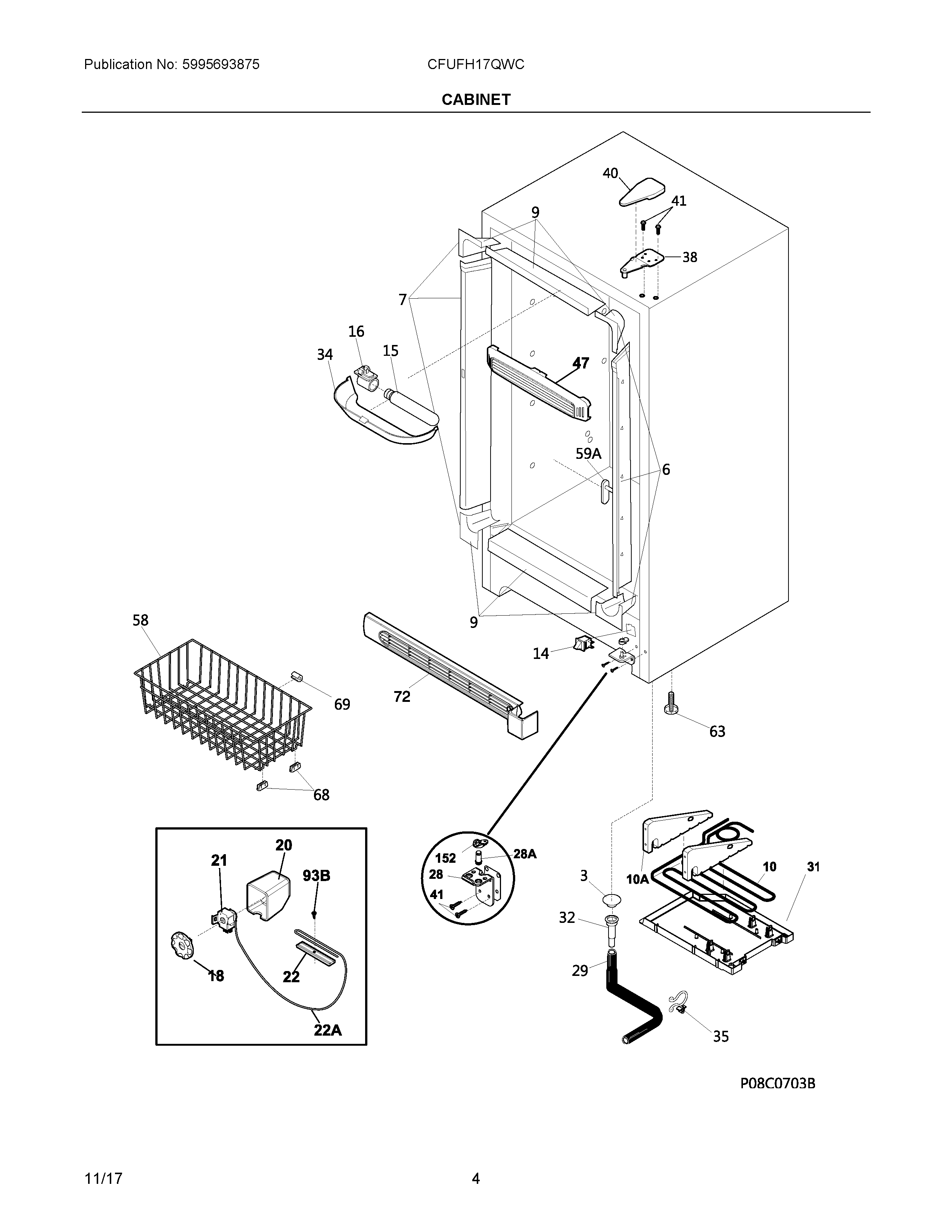

CFUFH17QWC 03 – CABINET

Products

Position	Product
NI	WCI 5303313703
NIA	Bracket,LH leg levelor
NI	5304498525 Frigidaire Service Data Sheet
NI	WCI 5304508301
NI	216502400 Frigidaire Refrigerator Grommet Unit
NIB	Bracket,RH leg levelor
NI	297001704 Frigidaire Refrigerator Insulation
NI	216858001 Frigidaire Refrigerator Screw
3	216503100 Frigidaire Refrigerator Screen-Drain
5	5304513294 Frigidaire Refrigerator Freezer Fan Blade
6	297435601 Frigidaire Breaker
7	297435600 Frigidaire Refrigerator Breaker
9	297403901 Frigidaire Refrigerator Breaker
10	297403902 Frigidaire Refrigerator Breaker
11A	WCI 297177400
11	WCI 297334500
12	WCI 242115804
13	EVAP FAN MOTOR – 115V
14	216822900 Frigidaire Refrigerator Switch
15	5304517886 Frigidaire Refrigerator Light
16	297139501 Frigidaire Refrigerator Socket
18	216707200 Frigidaire Refrigerator Cold Control Knob
19	216204902 Frigidaire Refrigerator Gasket-Evaporator Cover
20	216967201 Frigidaire Refrigerator Temp Control Cover
21	5304513033 Frigidaire Refrigerator Temperature Control
22A	TUBE
22	CLAMP, CAP TUBE, COLD CONTROL
24	Screw,type A ,10-24 x 3/8
25	WCI 297099250
26	297415900 Frigidaire Door Closer Ramp
27	216337701 Frigidaire Refrigerator Screw
28	297416301 Frigidaire Refrigerator Hinge
28A	297438300 Frigidaire Refrigerator Pin
29A	5304510353 Frigidaire Refrigerator Hose
29	5304512272 Frigidaire Hose Drain
31A	297165804 Frigidaire Refrigerator Pan-Drain
32	5304511843 Frigidaire Refrigerator Sleeve
34	WCI 297184400
35	216273000 Frigidaire Refrigerator Strap
37	297273904 Frigidaire Refrigerator Corner Cabinet Trim
38	297283803 Frigidaire Freezer Upper Door Hinge
40	297164400 Frigidaire Refrigerator Hinge Cover
41	240578902 Frigidaire Screw Mounting Hinge
42A	297441901 Frigidaire Refrigerator Shelf
42	WCI 297441905
47	297192903 Frigidaire Refrigerator Baffle
50	216394050 Frigidaire Refrigerator Bracket
58	808618002 Frigidaire Refrigerator Basket
59A	STOP-BASKET, (2)
63	216396900 Frigidaire Dryer Adjustable Leveling Foot Leg
71A	Screw,8-18AB x.470 QX
72	297387930 Frigidaire Refrigerator Kickplate Grille
80	WCI 06594601
93B	216036601 Frigidaire Refrigerator Screw
93A	241853202 Frigidaire Refrigerator Screw
152	5304511026 Frigidaire Refrigerator Freezer Hinge Bearing
169	216912401 Frigidaire Refrigerator Screw
170	297280400 Frigidaire Refrigerator Valve
