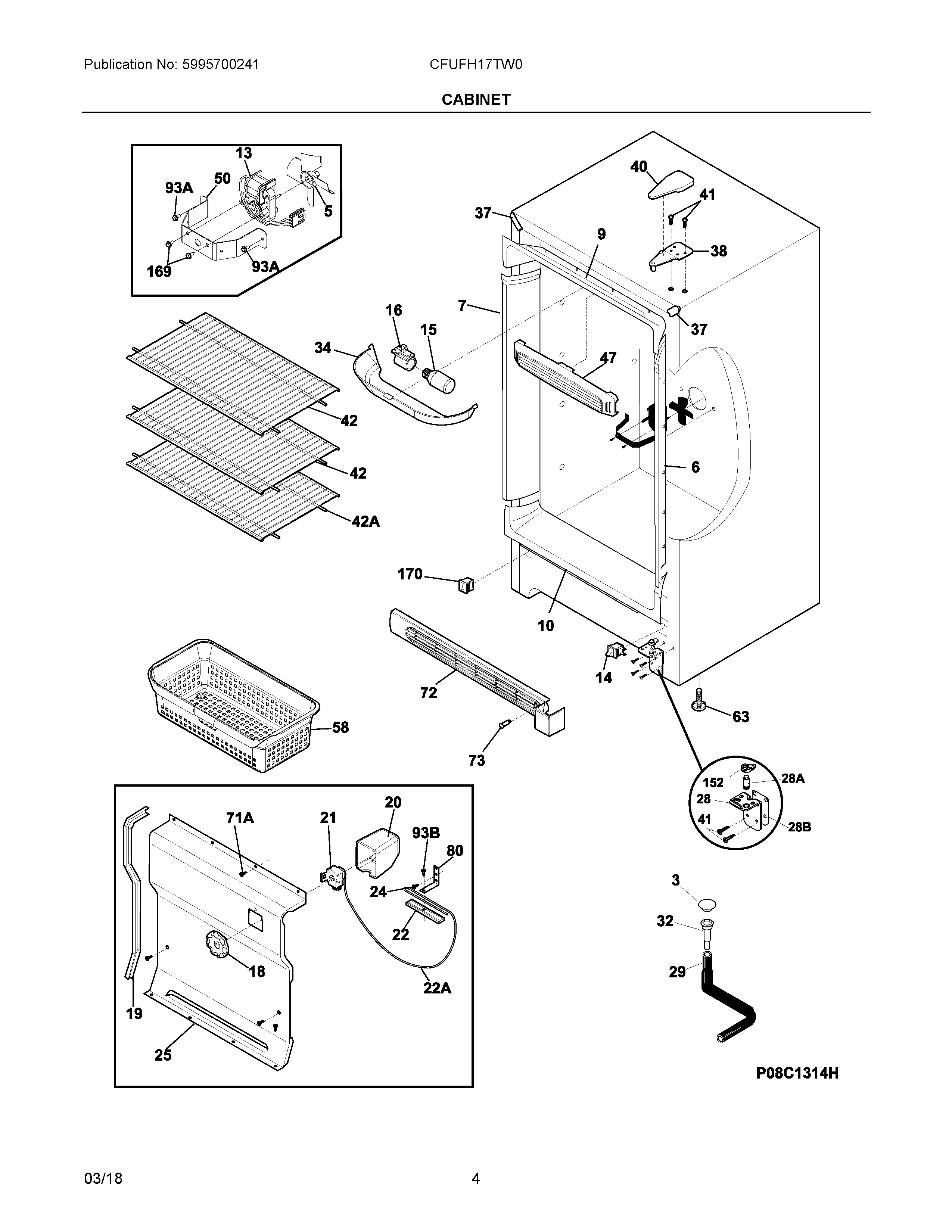

CFUFH17TW0 03 – CABINET

CFUFH17TW0 03 – CABINET

Written by

in

CFUFH17TW0 03 – CABINET

Products

Position	Product
NIA	Bracket,LH leg levelor
NIB	Bracket,RH leg levelor
NI	297001704 Frigidaire Refrigerator Insulation
NI	216502400 Frigidaire Refrigerator Grommet Unit
NI	INSULATION, DRAIN TUBE
NI	WCI 5304514058
NI	WCI 5303313703
NI	5304498525 Frigidaire Service Data Sheet
3	216503100 Frigidaire Refrigerator Screen-Drain
5	5304513294 Frigidaire Refrigerator Freezer Fan Blade
6	297435601 Frigidaire Breaker
7	297435600 Frigidaire Refrigerator Breaker
9	297403901 Frigidaire Refrigerator Breaker
10	297403902 Frigidaire Refrigerator Breaker
13	EVAP FAN MOTOR – 115V
14	216822900 Frigidaire Refrigerator Switch
15	5304517886 Frigidaire Refrigerator Light
16	297139501 Frigidaire Refrigerator Socket
18	216707200 Frigidaire Refrigerator Cold Control Knob
19	216204902 Frigidaire Refrigerator Gasket-Evaporator Cover
20	216967201 Frigidaire Refrigerator Temp Control Cover
21	5304513033 Frigidaire Refrigerator Temperature Control
22	CLAMP, CAP TUBE, COLD CONTROL
22A	TUBE
24	Screw,type A ,10-24 x 3/8
25	WCI 297099250
26	297415900 Frigidaire Door Closer Ramp
27	216337701 Frigidaire Refrigerator Screw
28A	297438300 Frigidaire Refrigerator Pin
28	297416301 Frigidaire Refrigerator Hinge
29	5304510353 Frigidaire Refrigerator Hose
32	5304511843 Frigidaire Refrigerator Sleeve
34	WCI 297184400
37	297273904 Frigidaire Refrigerator Corner Cabinet Trim
38	297283803 Frigidaire Freezer Upper Door Hinge
40	297164400 Frigidaire Refrigerator Hinge Cover
41	240578902 Frigidaire Screw Mounting Hinge
42	297441901 Frigidaire Refrigerator Shelf
42A	WCI 5304509721
47	297192903 Frigidaire Refrigerator Baffle
50	216394050 Frigidaire Refrigerator Bracket
58	808618002 Frigidaire Refrigerator Basket
59A	STOP-BASKET, (2)
63	216396900 Frigidaire Dryer Adjustable Leveling Foot Leg
71A	Screw,8-18AB x.470 QX
72	297387930 Frigidaire Refrigerator Kickplate Grille
73	5304495394 Frigidaire Refrigerator Light Signal
80	BRACKET, CONTROL
93A	241853202 Frigidaire Refrigerator Screw
93	216858001 Frigidaire Refrigerator Screw
93B	216036601 Frigidaire Refrigerator Screw
152	5304511026 Frigidaire Refrigerator Freezer Hinge Bearing
169	216912401 Frigidaire Refrigerator Screw
170	297280400 Frigidaire Refrigerator Valve
