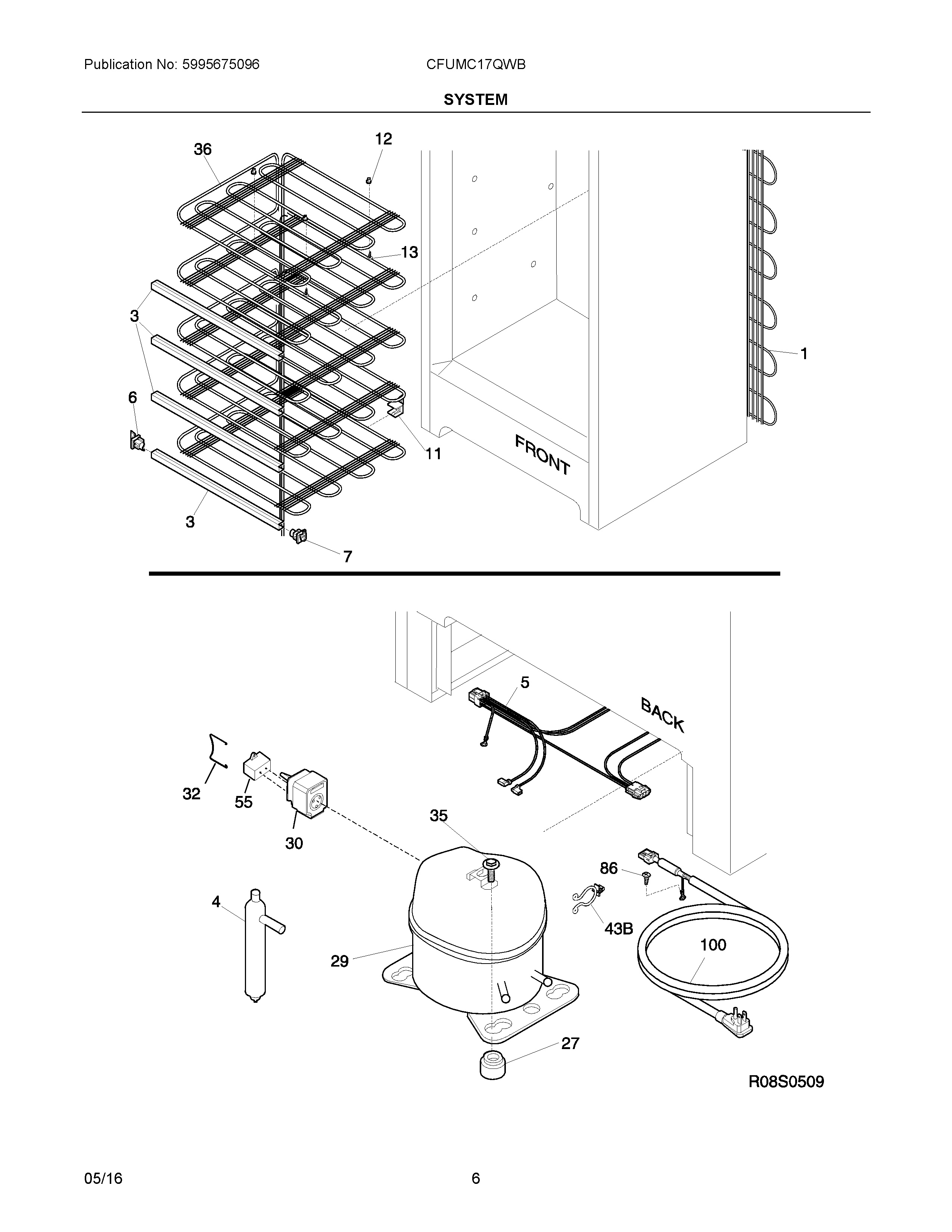

CFUMC17QWB 04 – SYSTEM

CFUMC17QWB 04 – SYSTEM

Written by

in

CFUMC17QWB 04 – SYSTEM

Products

PositionProduct
NI241853202 Frigidaire Refrigerator Screw
NI240555002 Frigidaire Refrigerator Screw #8-32 X 3/8
NIWCI 297102800
1CONDENSER
35304509723 Frigidaire Refrigerator Trim
45303305677 Frigidaire Replacement Filter Dryer Filters
5297171900 Frigidaire Refrigerator Main Harness
6297001600 Frigidaire Shelf Support
7297001500 Frigidaire Shelf Support
11SUPPORT-REAR SHELF
12GROMMET-SPACER
13SCREW, HEX SEMS, 8-18AB X 1.00, EVAP
27216337701 Frigidaire Refrigerator Screw
295304507766 Frigidaire Refrigerator Compressor Kit
30297259515 Frigidaire Refrigerator Start Relay
32216954300 Frigidaire Refrigerator Clip
35297368501 Frigidaire Bolt
36297234500 Frigidaire Refrigerator Evaporator
43B297315800 Frigidaire Refrigerator Clip
55WCI 297286802
86216036601 Frigidaire Refrigerator Screw
100WCI 297366806
