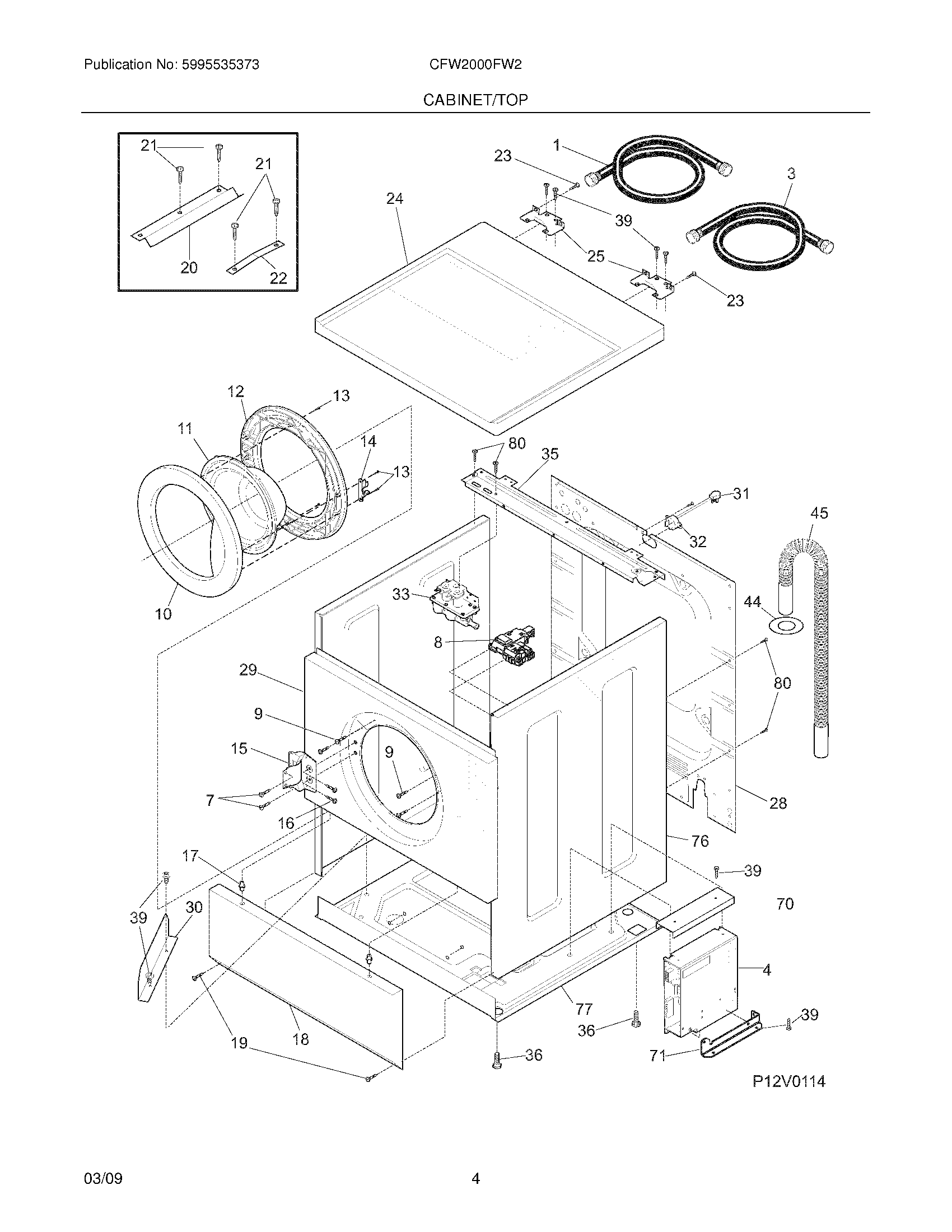

CFW2000FW2 05 – CABINET/TOP

CFW2000FW2 05 – CABINET/TOP

Written by

in

CFW2000FW2 05 – CABINET/TOP

Products

PositionProduct
NIWCI 131931201
NIWCI 5303937142
15303912532 Frigidaire Hose Inlet 60"
4WCI 134149220
7131205300 Frigidaire Screw
8DOOR LOCK/SWITCH ASSY
9131302800 Frigidaire Drum Vane Screw
10131278700 Frigidaire Outer Door
11Panel,door glass
12134426500 Frigidaire Inner Door Panel Ki
13WCI 134227100
14131763302 Frigidaire Washer Door Strike
15134264600 Frigidaire Hinge
16131696300 Frigidaire Screw 10-16 X 0.312 Qu
17WCI 131346400
18Panel,Service ,white ,kick plate
19218362501 Frigidaire Refrigerator Screw
20Bracket,top panel mtg. ,front
21131243700 Frigidaire Screw
22Retainer,spring steel
23131243800 Frigidaire Screw
24WCI 134086842
25Bracket,top panel mtg.
28WCI 134896900
29WCI 131752030
30WCI 131859600
315304505407 Frigidaire Cord
325303209428 Frigidaire Serv.Cord Bushing
33131900200 Frigidaire Primary Valve
35WCI 134897000
36134548800 Frigidaire Washer Leg Levelling
39134178901 Frigidaire Screw
44131707800 Frigidaire Drain Hose Ring
45134592700 Frigidaire Washer Drain Hose
70WCI 134048600
71WCI 134048400
76WCI 134390701
77WCI 134773000
80131168200 Frigidaire Dryer Screw
