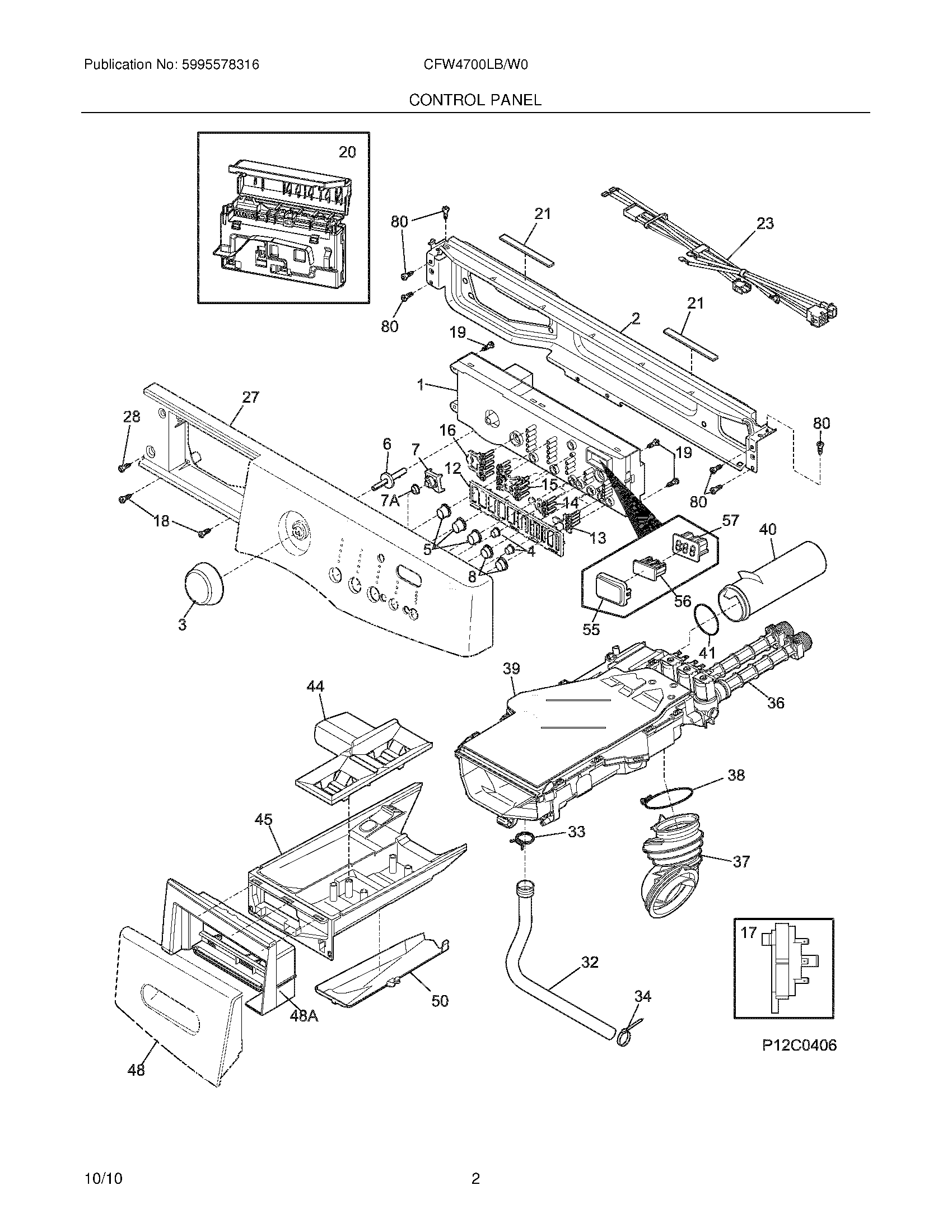

CFW4700LW0 03 – CONTROL PANEL

Products

Position	Product
NI	134371300 DISPENSER TO VALVE GASKET
1	137035240NH Frigidaire Control
2	134887400 Frigidaire Bracket
3	WCI 137314625
4	WCI 137320825
5	WCI 137314725
6	WCI 134347700
7A	WCI 137360300
7	WCI 134885100
8	WCI 137314825
12	WCI 137320500
13	WCI 134557500
14	WCI 134557400
15	WCI 134552800
16	WCI 134600000
17	134762010 Frigidaire Washer Switch
18	131302800 Frigidaire Drum Vane Screw
19	131302901 Frigidaire Screw
20	137208014NH Frigidaire Control Board
21	134407900 Frigidaire Dampener
23	137288500 Frigidaire Harness
27	PANEL, CONTROL CONSOLE, WHITE
28	131205300 Frigidaire Screw
32	WCI 134586500
33	134737300 Frigidaire Clamp
34	5304464772 Frigidaire Refrigerator Wire Tie
36	134959340 Frigidaire Valve
37	134372300 Frigidaire Hose
38	134372400 Frigidaire Clamp
39	WCI 134446140
40	WCI 134372100
41	134372200 Frigidaire O-Ring
44	134370200 Frigidaire Washer Dispenser Drawer Cover
45	134370000 Frigidaire Washer Detergent Dispenser Drawer
48A	137314510 Frigidaire Drawer Handle Frame Dispenser
48	WCI 137393210
50	134409320 Frigidaire Dispenser Assembly
55	WCI 137320700
56	WCI 134557300
57	WCI 134503300
80	131168200 Frigidaire Dryer Screw
