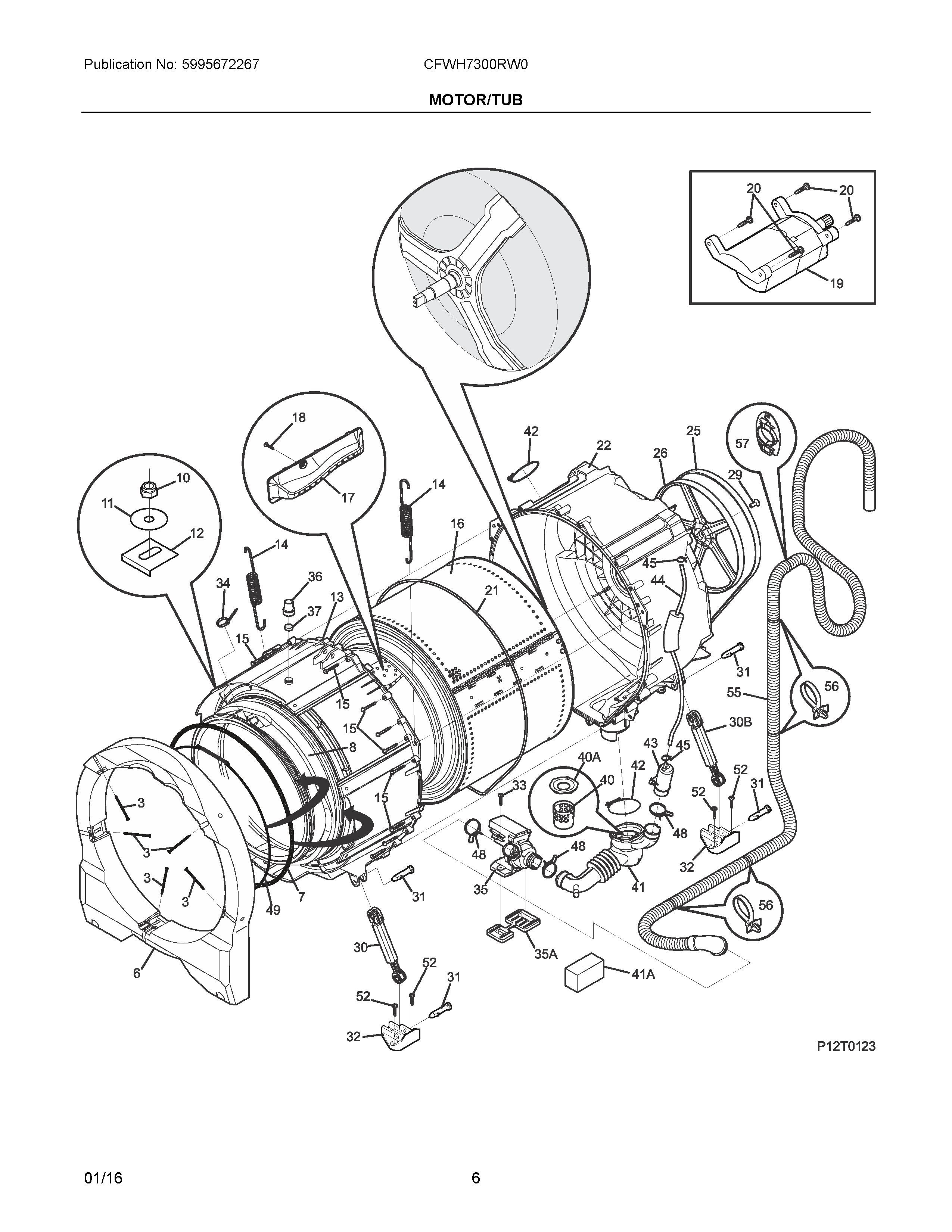

CFWH7300RW0 04 – MOTOR/TUB

Products

Position	Product
NIA	137110800 Frigidaire Cushion
NI	5304464772 Frigidaire Refrigerator Wire Tie
NIA	134261300 Frigidaire Clip
NIA	WCI 137290700
NIA	137385100 Frigidaire Ring
3	WCI 131793303
6	WCI 134362210
7	134365300 Frigidaire Spring
8	DOOR BOOT BELLOWS GASKET
10	Nut,hex ,1/4-20 UNC-2B
11	131276900 Frigidaire Washer Spring
12	WCI 134430600
13	134955100 Frigidaire Shell Assembly
14	134957000 Frigidaire Spring Assembly
15	131303900 Frigidaire Screw
16	WCI 134950434
17	134952702 Frigidaire Vane Assembly
18	131302800 Frigidaire Drum Vane Screw
19	134638900 Frigidaire Washer Motor
20	131303500 Frigidaire Screw
21	5304520351 Frigidaire Washer O-Ring
22	WCI 134956210
25	134616700 Frigidaire Belt
26	WCI 137317100
29	134408400 Frigidaire Screw
30B	5304491700 Frigidaire Kit-Shock
30	5304491701 Frigidaire Shock Kit
31	131268300 Frigidaire Leveling Pin
32	134363200 Frigidaire Bracket
33	134637200 Frigidaire Screw
34	134737300 Frigidaire Clamp
35	137624500 Frigidaire Pump
35A	134618100 Frigidaire Pad
36	WCI 137322400
37	WCI 137322500
40	134640200 Frigidaire Filter
40A	134640300 Frigidaire Cover
41	TUB TO PUMP HOSE
41A	WCI 137340800
43	WCI 134636800
44	137089000 Frigidaire Air Chamber
45	137087500 Frigidaire Clamp
48	131306234 Frigidaire Clamp Pump
49	134527100 Frigidaire Washer Clamp
52	131202300 Frigidaire Screw
55	137628100 Frigidaire Hose
56	137003500 Frigidaire Cable Tie
57	134641100 Frigidaire Bracket
