CG11000ADV 01 – DOOR/DRAWER – Aparts

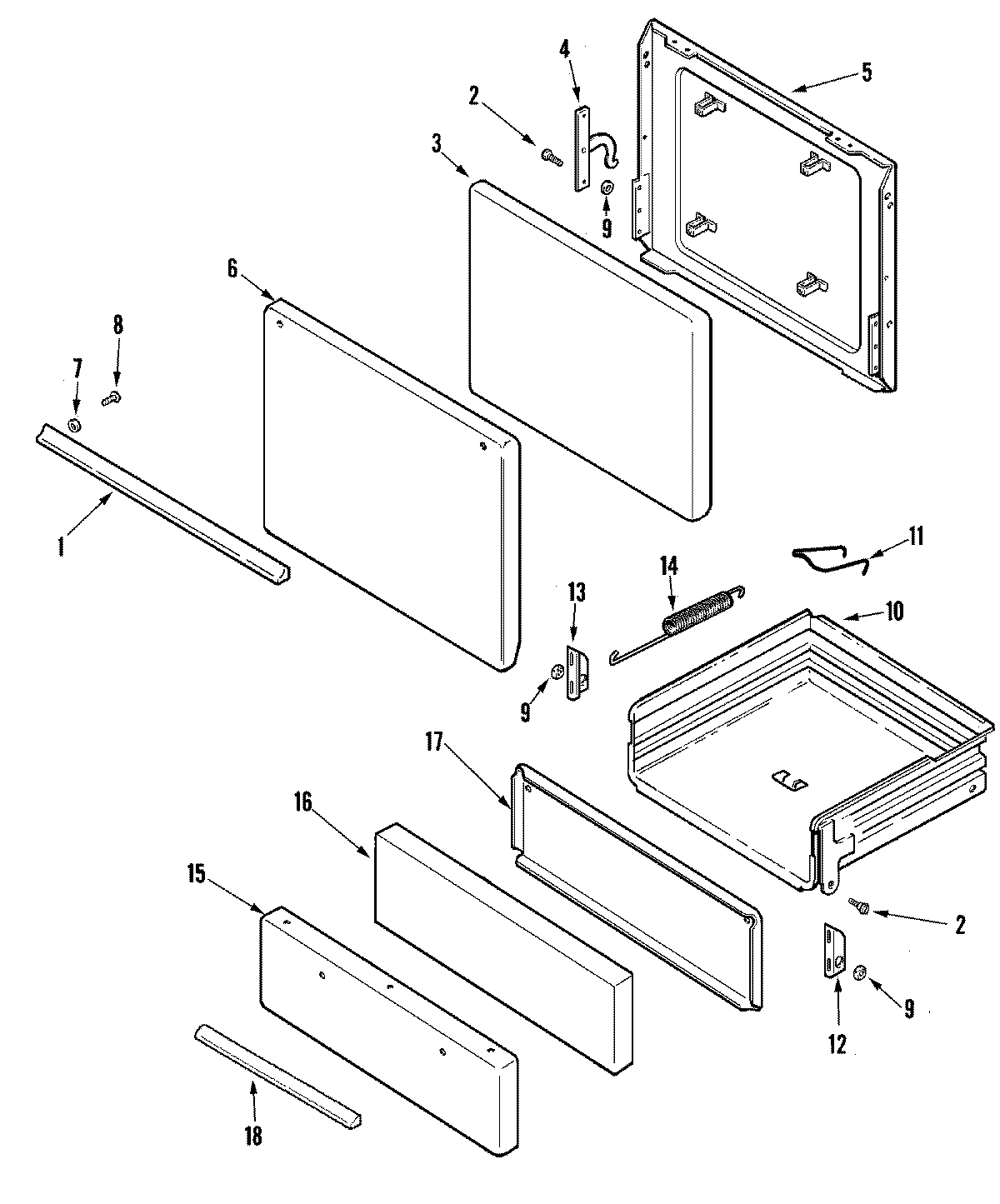

CG11000ADV 01 – DOOR/DRAWER

Products

Position	Product
1	MAY 74010477
3	MAY 74009878
4	MAY 74004004
4	MAY 3418F053-34
5	MAY 2402W102-19
5	MAY 7101P356-60
6	SCREW
6	MAY 2401W059-71
7	MAY 74005232
7	WP74005233 Whirlpool Screw
8	WP3387230 Whirlpool Screw
9	MAY 7103P072-60
10	MAY 3407W005-19
11	MAY 7809P004-60
12	MAY 74004038
13	MAY 74004037
14	MAY 7803P068-60
15	MAY 2403W019-71
16	MAY 7002P067-60
17	MAY 74004036
18	MAY 74010424
18	74002481 Whirlpool Screw
