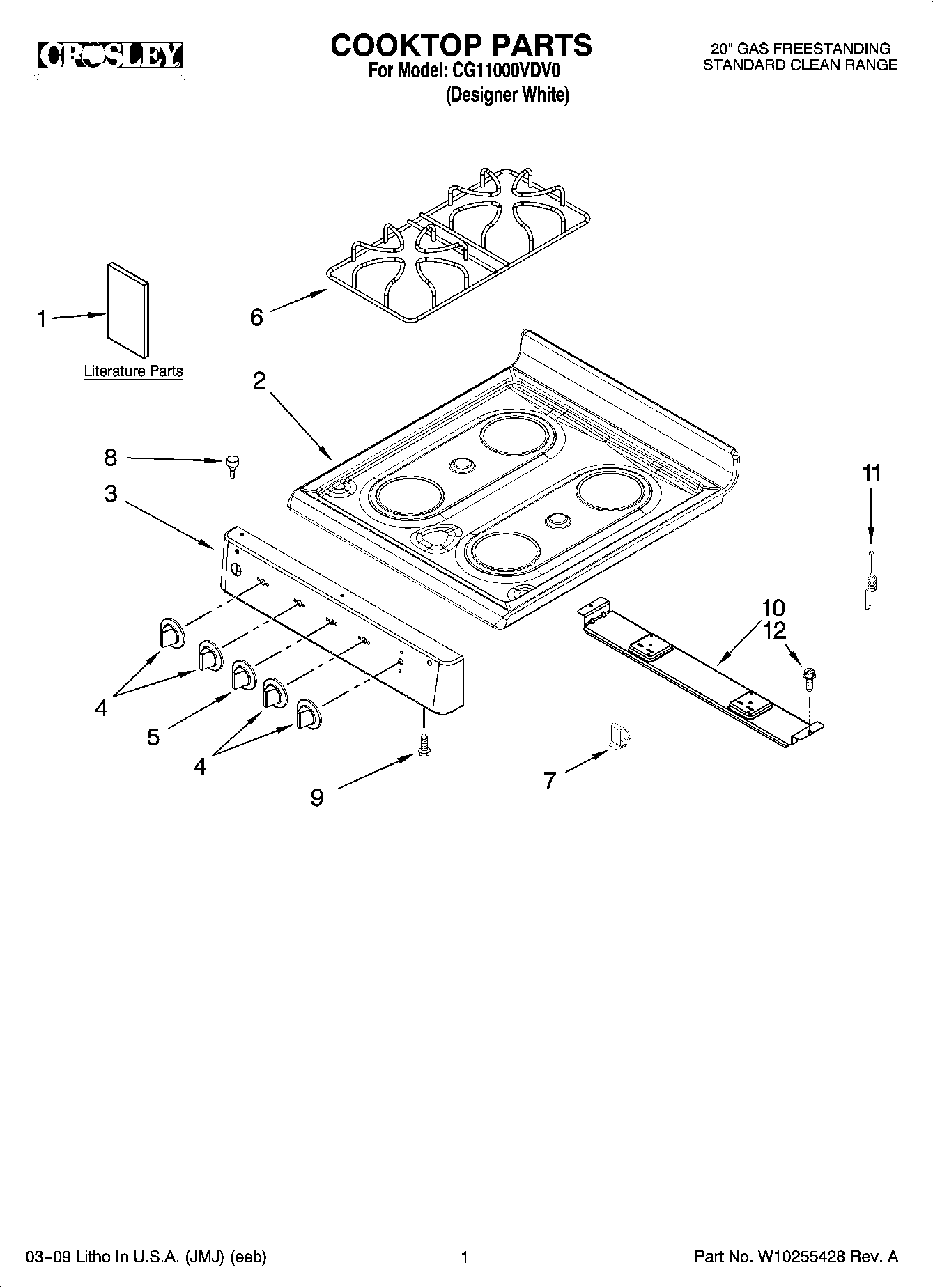

CG11000VDV0 01 – COOKTOP PARTS

Written by

Products

Position	Product
1	Instructions, Installation
1	Guide, Use & Care
1	Safer Cooking Tips
1	Installation Instr (Template)
2	Cooktop
3	Panel, Manifold
4	WP98006102 Whirlpool Knob
5	W10218615 Whirlpool Knob
6	WPW10180089 Whirlpool Burner Grate
7	CLIP, COOKTOP
8	W10207167 Whirlpool Bumper
9	SCREW
10	Support, Burner
11	Spring, Cooktop (2)
12	W10837731 Whirlpool Screw Assembly
