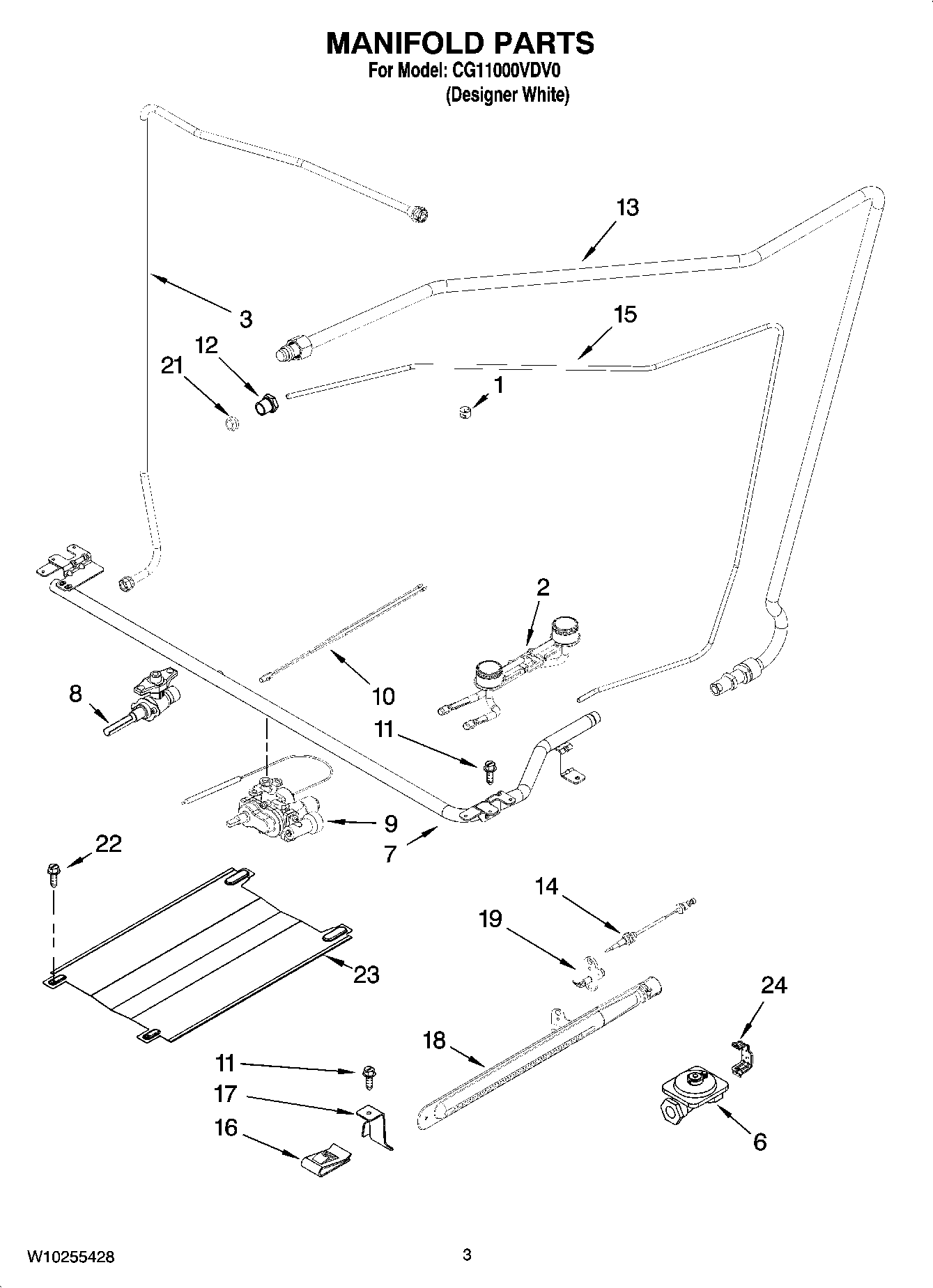

CG11000VDV0 03 – MANIFOLD PARTS

CG11000VDV0 03 – MANIFOLD PARTS

Written by

in

CG11000VDV0 03 – MANIFOLD PARTS

Products

PositionProduct
Washer, Cut-Off
Following Parts Not Illustrated
LP Spud Kit (For Use With LP)
1W10128110 Whirlpool Air Shutter
2WPW10119798 Whirlpool Burner Assembly Top
3WP98017171 Whirlpool Gas Tubing
6Regulator
7W10172095 Whirlpool Manifold Pipe
8W10121580 Whirlpool Burner Valve
9WPW10121631 Whirlpool Thermostat
10WPW10119799 Whirlpool Tubing
11W10837731 Whirlpool Screw Assembly
1298005514 Whirlpool Oven Nut
13Tubing, Oven (TSTAT to Burner)
14WPW10206112 Whirlpool Oven Pilot Burner
15WP98004310 Whirlpool Gas Tubing
1698009179 Whirlpool Oven Nut
1798013314 Whirlpool Oven Support Bracket
18W10086560 Whirlpool Burner
2198007116 Whirlpool Oven 3/16" Ball Sleeve
22SCREW
23W10212101 Whirlpool Burner Baffle
2498007410 Whirlpool Oven Mounting Bracket
