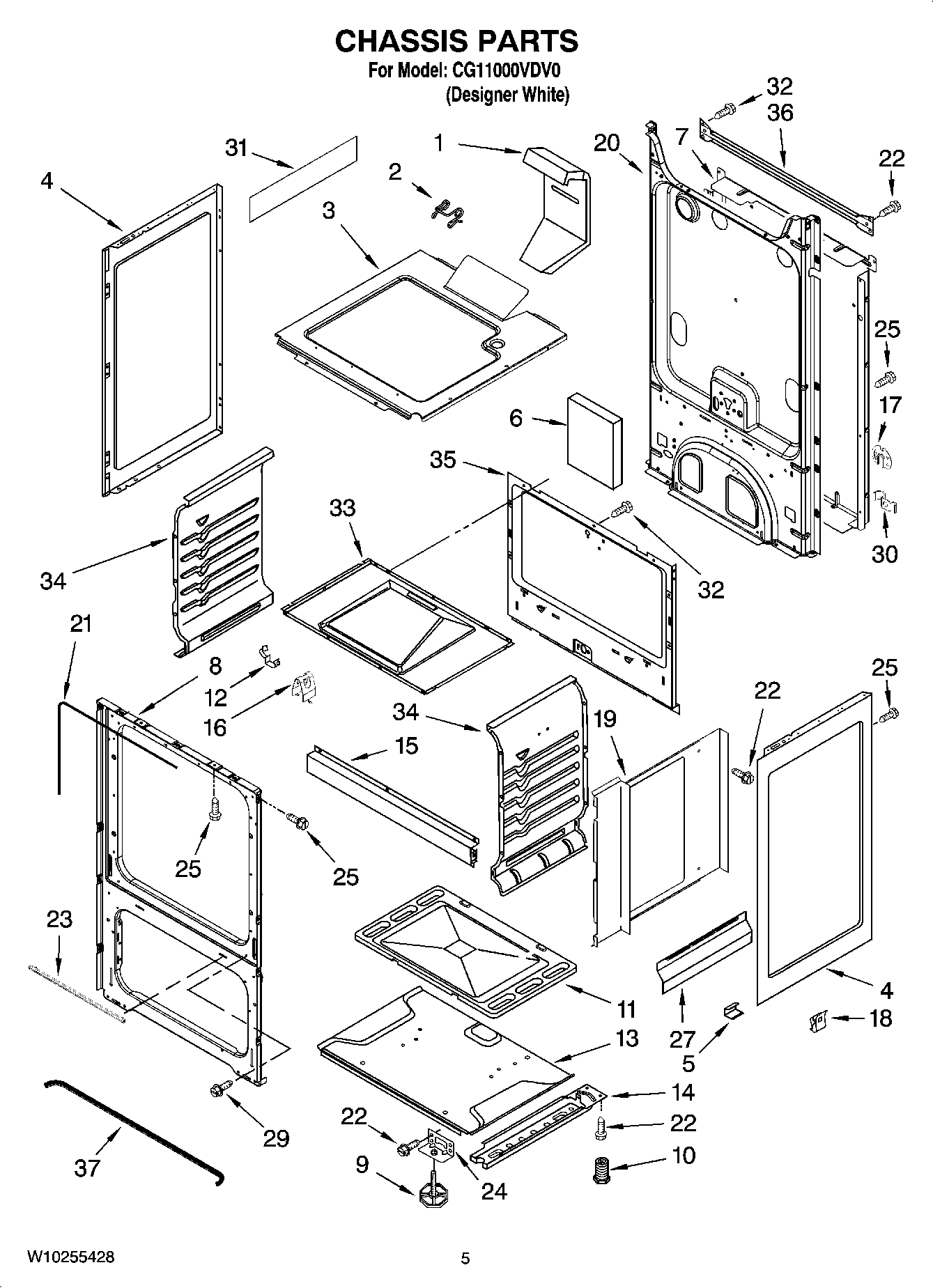

CG11000VDV0 04 – CHASSIS PARTS

Products

Position	Product
	Insulation
	W11684896 Whirlpool Insulation
	W11684895 Whirlpool Insulation
1	WPW10116396 Whirlpool Flue Box
2	98013690 Whirlpool Clip
3	Box, Burner
4	W11501467 Whirlpool Side Panel
5	CLIP, OVEN BOTTON
6	COUNTER WEIGHT
7	W10165402 Whirlpool Rear Cover
8	W10212614 Whirlpool Front Frame
9	WP3196037 Whirlpool Leveling Foot
10	WPW10058460 Whirlpool Appliance Levelling Leg
11	98004450 Whirlpool Oven Bottom
12	98005642 Whirlpool Clip
13	98003945 Whirlpool Burner Baffle
14	98003830 Whirlpool Rail Base
15	98012912 Whirlpool Support
16	Retainer, Thrmocpl
17	Retainer, Burner
18	98009179 Whirlpool Oven Nut
19	Baffle, Side (2)
20	98003944 Whirlpool Rear Cover
21	W10170595 Whirlpool Gasket Door
22	W10837731 Whirlpool Screw Assembly
23	W10209302 Whirlpool Door Gasket
24	98007126 Whirlpool Oven Stand Bracket
25	SCREW
27	98007191 Whirlpool Oven Heat Shield
29	WP98008545 Whirlpool Screw
30	98005026 Whirlpool Oven Clip
31	98015346 Whirlpool Insulation
32	Screw
33	98004448 Whirlpool Burner Box
34	98004451 Whirlpool Oven Side Panel
34	98004452 Whirlpool Oven Side
35	Back, Oven
36	98010054 Whirlpool Oven Support
37	W10555328 Whirlpool Door Gasket
