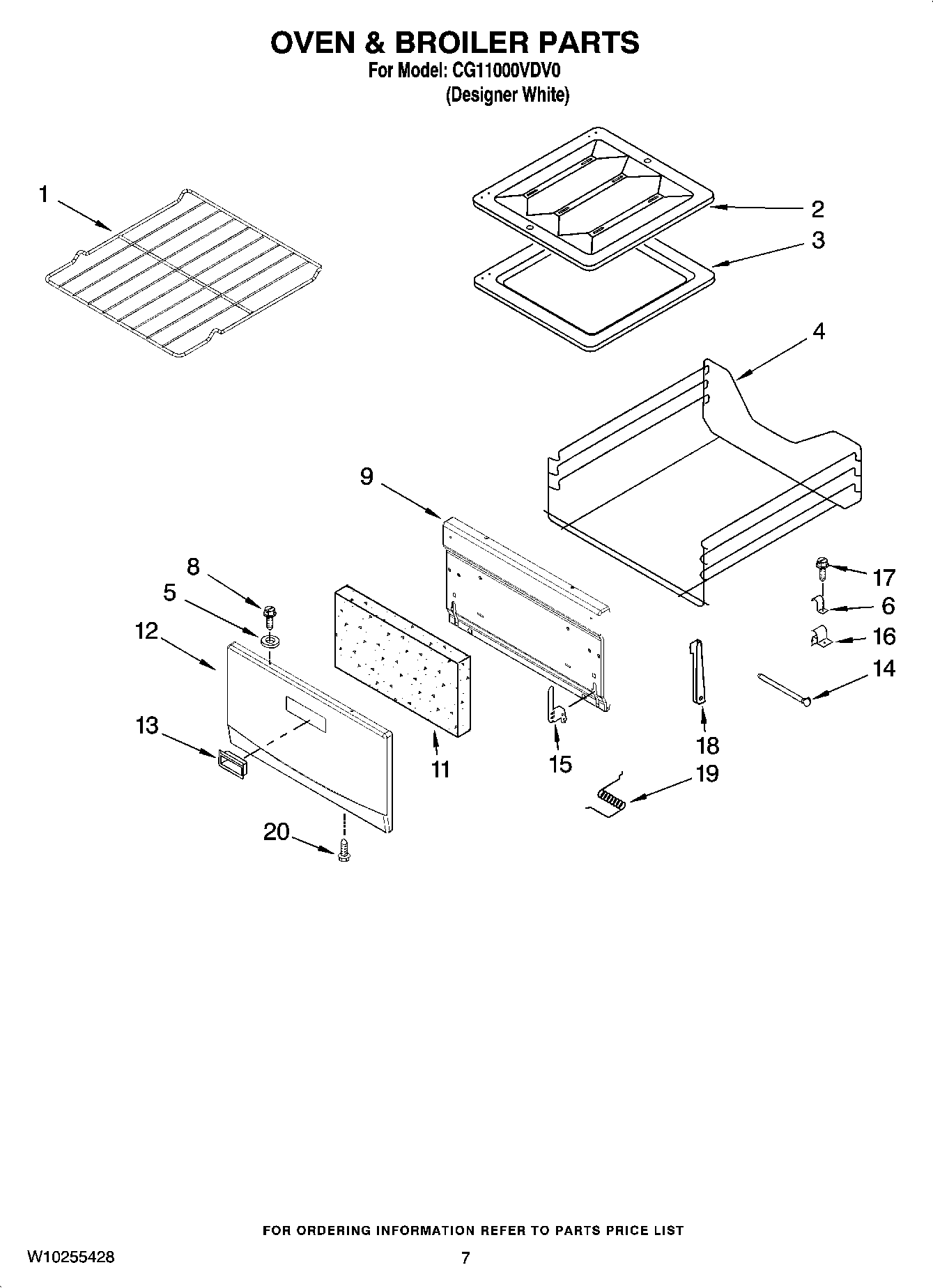

CG11000VDV0 05 – OVEN & BROILER PARTS

Written by

Products

Position	Product
1	W11223841 Whirlpool Oven Rack
2	WP98003480 Whirlpool Grill Pan
3	WP98016005 Whirlpool Broiler Pan
4	98016570 Whirlpool Oven Rack
5	W10216805 Whirlpool Washer
6	98004715 Whirlpool Drawer Guide
8	WP98008544 Whirlpool Screw Assembly
9	98004700 Whirlpool Oven Broiler Liner
11	W11688784 Whirlpool Insulation
12	98017156W Whirlpool Drawer Panel
13	WP3405184 Whirlpool White Door Handle
14	98004053 Whirlpool Oven Hinge Pin
15	W11499074 Whirlpool Hinge Bracket
16	98008341 Whirlpool Clip
17	W10837731 Whirlpool Screw Assembly
18	Support, Hinge
19	98009248 Whirlpool Door Spring
19	98009249 Whirlpool Door Spring
20	WP3400805 Whirlpool Screw Assembly
