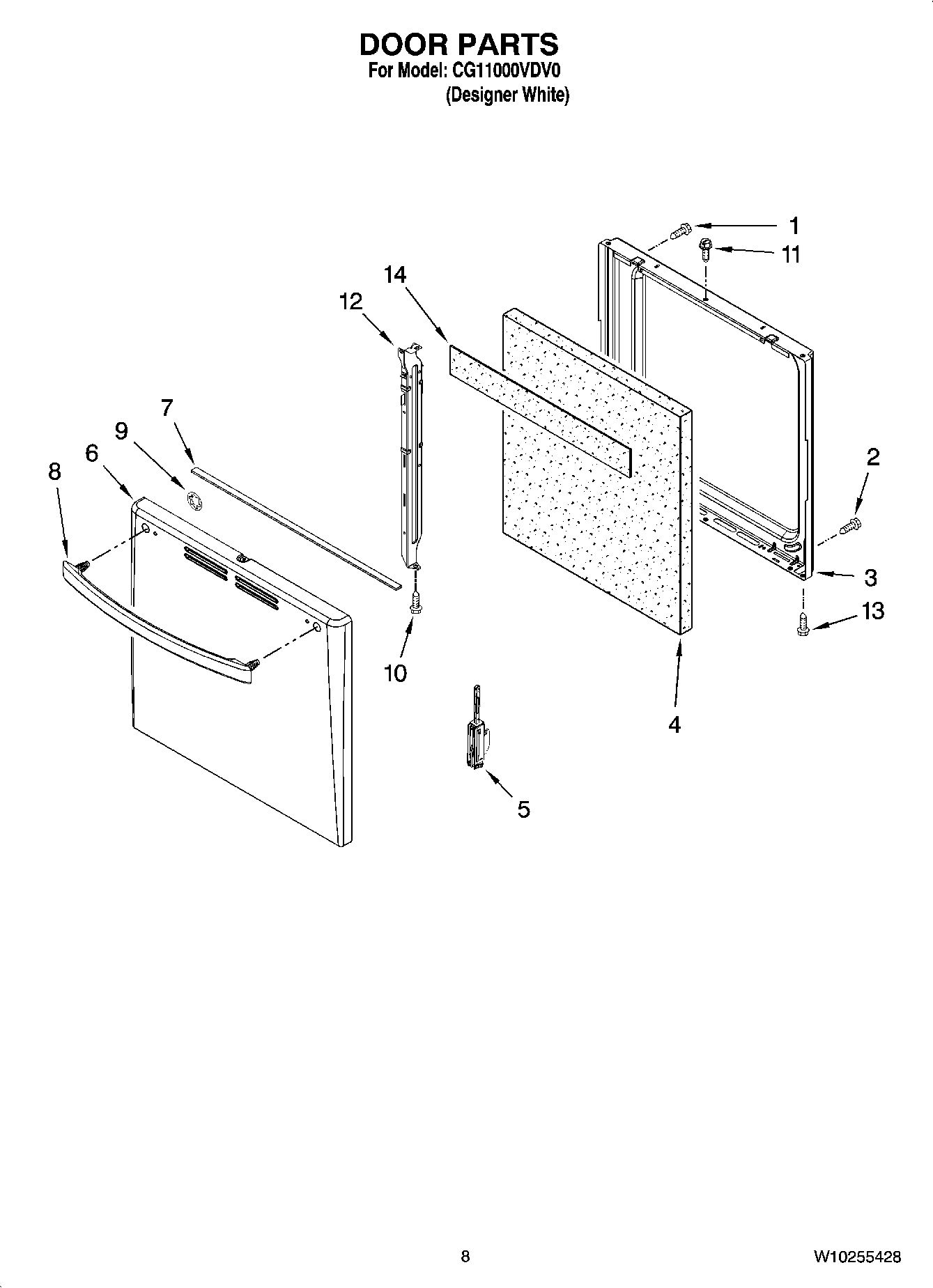

CG11000VDV0 06 – DOOR PARTS

Products

Position	Product
1	SCREW
2	W11206744 Whirlpool Screw
3	98010414 Whirlpool Door Liner
4	Insulation, Door
5	98017873 Whirlpool Oven Door Hinge
6	Panel, Door
7	Seal, Oven Door
8	WP98004947 Whirlpool Door Handle
9	WP98004650 Whirlpool Nut
10	WP59002061 Whirlpool Microwave Screw
11	3196166 Whirlpool Screw
12	98004564 Whirlpool Oven Retainer
12	98004629 Whirlpool Oven Retainer
13	WP3400805 Whirlpool Screw Assembly
14	Retainer, Insulation (7)
