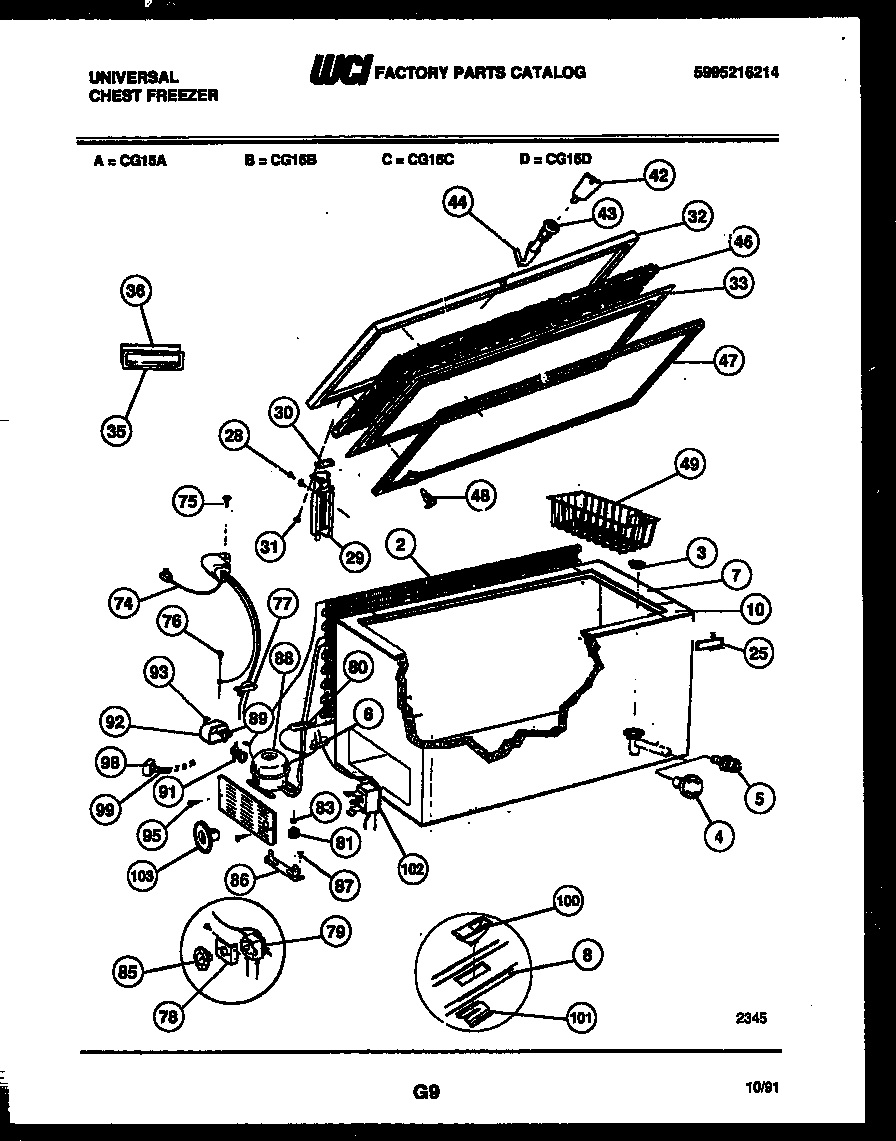

CG15A 02 – CHEST FREEZER PARTS

Products

Position	Product
2	WCI 5300120781
3	PLUG, DRAIN, LINER
4	WCI 5300128045
5	RETAINER POWER CORD (NOT ORIGINAL EQUIPMENT. CUSTOMER PU
6	WCI 06599967
7	WCI 08017009
8	WCI 5300900261
25	FRAME-NAMEPLATE
28	WCI 5309950602
29	297321900 Frigidaire Refrigerator Hinge Assembly
30	WCI 08037853
31	SCREW HINGE BASE
32	LID-PANEL (WHITE)
33	WCI 5303209029
35	WCI 08037955
36	GASKET, WHITE
42	297147700 Frigidaire Freezer Plastic Door Key
43	WCI 5300190358
44	WCI 5300300791
46	INSULATION
47	WCI 3017645
48	5303212828 Frigidaire Refrigerator Primary Clip
49	WCI 5303204811
74	WCI 08017013
76	216036601 Frigidaire Refrigerator Screw
77	5303212614 Frigidaire Refrigerator Clip
78	WCI 5308016760
79	THERMOSTAT TEMP (2 TERM)
80	5303305677 Frigidaire Replacement Filter Dryer Filters
81	218513300 Frigidaire Refrigerator Compressor Mount Grommet
83	CLIP (3)
84	ACCESS PANEL-WHITE
85	WCI 5303091432
86	SUPPORT (2)
87	SCREW-COMPRESOR,IND HEX WSHR HD ,10-32T X 1/2,SUPPORT
88	COMPRESSOR WITH ELECTRICALS
89	WCI 5303017753
90	WCI 3017760
91	CLIP
92	WCI 08016583
93	STRAP-BALE
95	216858001 Frigidaire Refrigerator Screw
