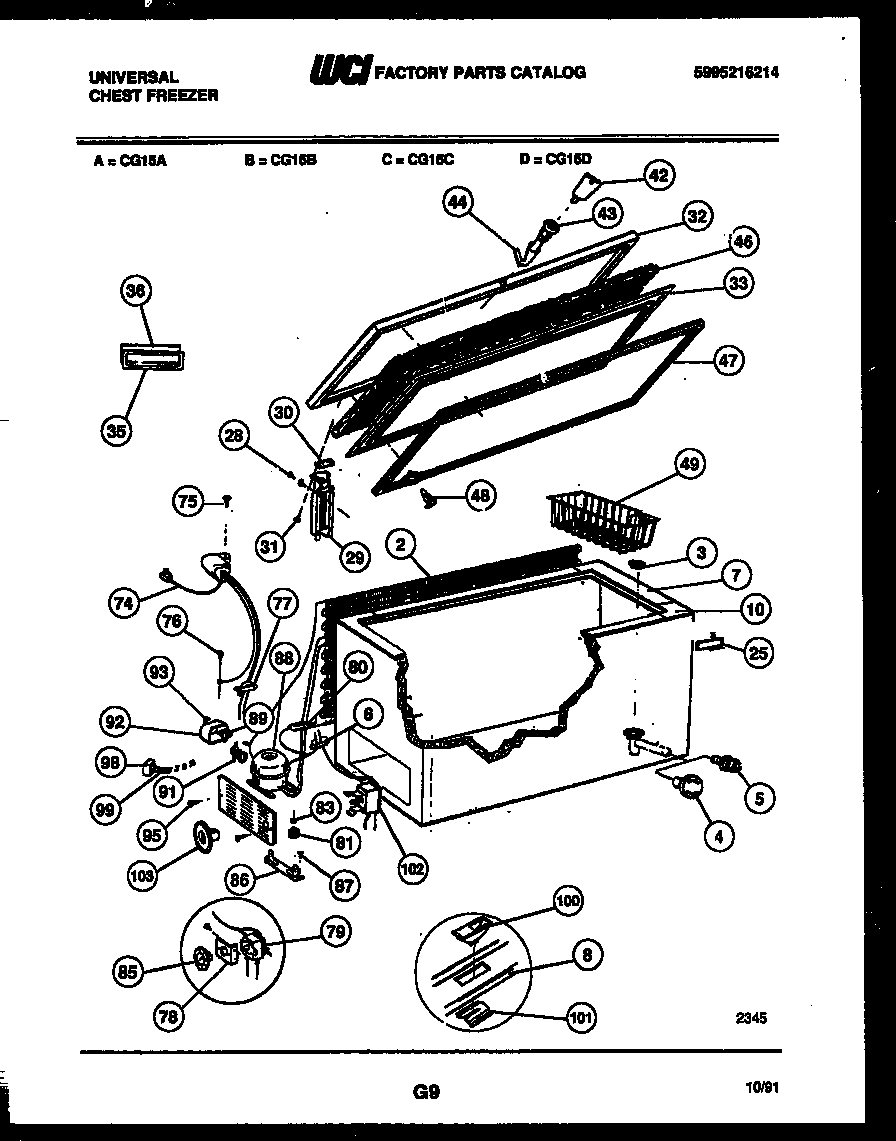

CG15C 02 – CHEST FREEZER PARTS

CG15C 02 – CHEST FREEZER PARTS

Written by

in

CG15C 02 – CHEST FREEZER PARTS

Products

PositionProduct
2WCI 5300120781
3PLUG, DRAIN, LINER
4WCI 5300128045
5RETAINER POWER CORD (NOT ORIGINAL EQUIPMENT. CUSTOMER PU
6WCI 06599967
7WCI 08017009
8BREAKER REAR
10WCI 5303207302
25FRAME-NAMEPLATE
28WCI 5309950602
29297321900 Frigidaire Refrigerator Hinge Assembly
30WCI 08037853
31SCREW HINGE BASE
32LID-PANEL (WHITE)
33WCI 5303209029
35WCI 08037955
36GASKET, WHITE
42297147700 Frigidaire Freezer Plastic Door Key
43WCI 5300190358
44WCI 5300300791
46INSULATION
47WCI 3017645
485303212828 Frigidaire Refrigerator Primary Clip
49WCI 5303204811
74WCI 5303212629
76216036601 Frigidaire Refrigerator Screw
775303212614 Frigidaire Refrigerator Clip
805303305677 Frigidaire Replacement Filter Dryer Filters
81218513300 Frigidaire Refrigerator Compressor Mount Grommet
83CLIP (3)
84WCI 5303212647
86SUPPORT (2)
87SCREW-COMPRESOR,IND HEX WSHR HD ,10-32T X 1/2,SUPPORT
88COMPRESSOR WITH ELECTRICALS
89WCI 5303017753
90WCI 3017760
91CLIP
92WCI 08016583
93STRAP-BALE
95216858001 Frigidaire Refrigerator Screw
100LATCH, DOOR
101LATCH CATCH SUPPORT
1025304496560 Frigidaire Refrigerator Cold Control Kit
103WCI 5303270910
