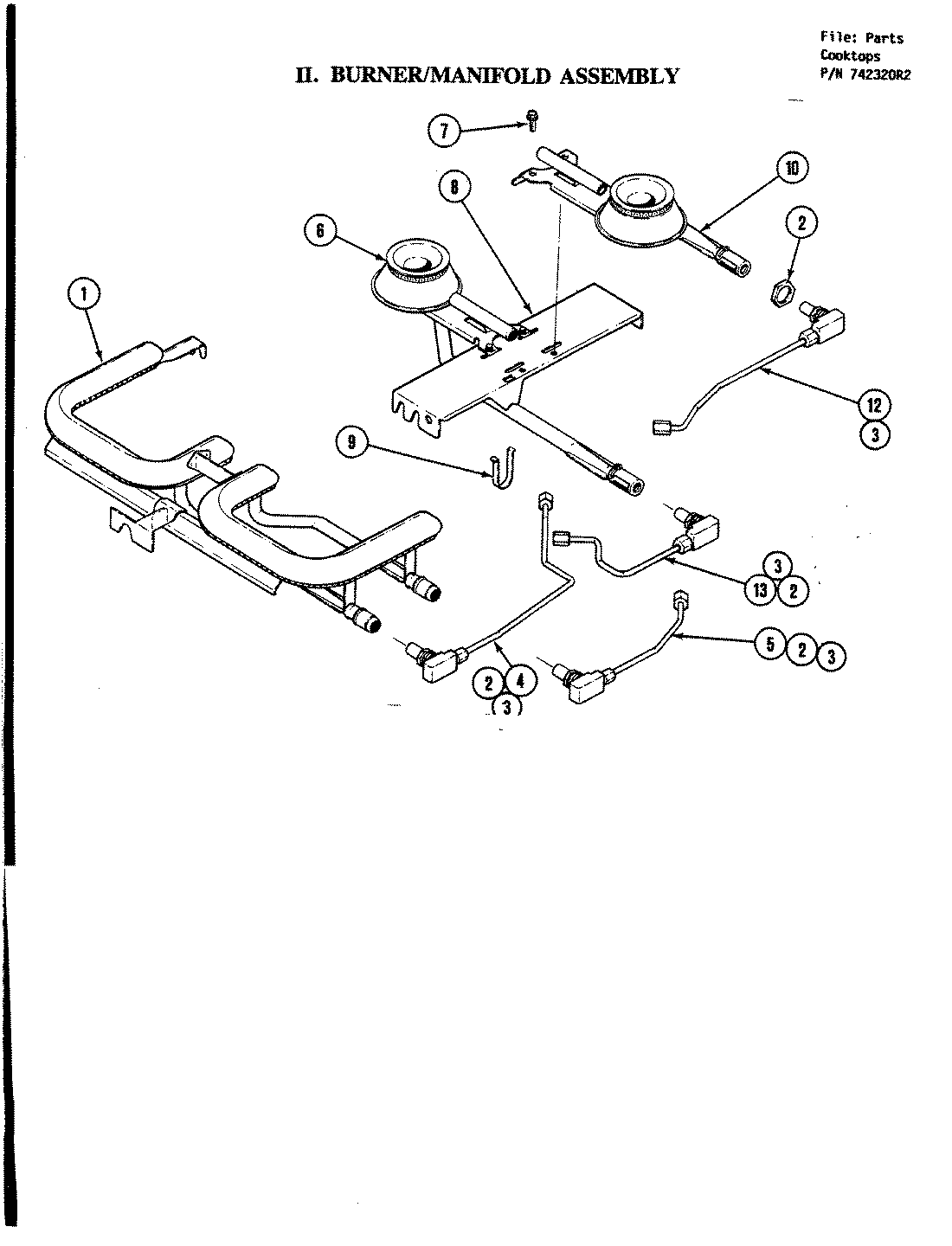

CG200L 02 – BURNER ASSEMBLY

Products

PositionProduct
NIMAY 704590
1Y712601 Whirlpool Burner Grille
1MAY Y712301
2MAY Y704588
3MAY Y704589
4MAY 704701
5MAY Y704702
6MAY Y704518
6MAY Y705402
7WP90767 Whirlpool Screw
8WP3801F403-80 Whirlpool Bracket
9MAY 704549
10MAY Y704517
10MAY Y705401
12MAY 704700
13MAY 704699
