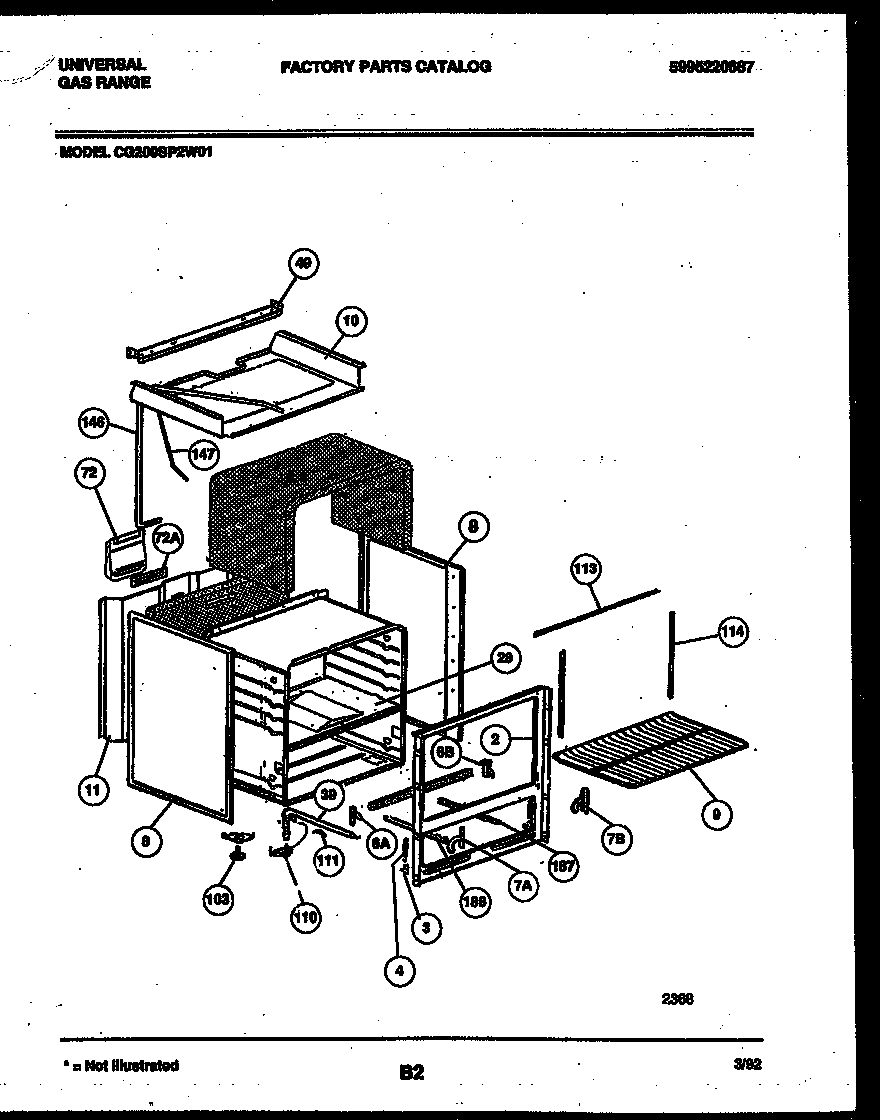

CG200SP2D1 04 – BODY PARTS

Products

PositionProduct
*23893WCI 5303285771
*23893WCI 5303285923
*23893INSULATION-OVEN WRAPPER
*23893WCI 5303285776
*23893WCI 5303285922
*23893WCI 5303285775
3WCI 5303285746
4WCI 5303285924
6BHINGE-RH-OVEN BODY
7BHINGE-RH-OVEN DOOR
8PANEL-SIDE LH/RH (ALMOND)
9WCI 5303285927
10WCI 5303285928
11WCI 5303285929
28WCI 5303285930
39WCI 5303285753
49WCI 5303285931
72VENT BOX
72AWCI 5303285761
103WCI 5303285762
110WCI 5303285749
111PILOT ASSEMBLY-OVEN
113SEAL-TOP OVEN DOOR
114SEAL-DOOR SIDES (2)
146WCI 5303285933
147WCI 5303285768
187WCI 5303285769
188WCI 5303285770
