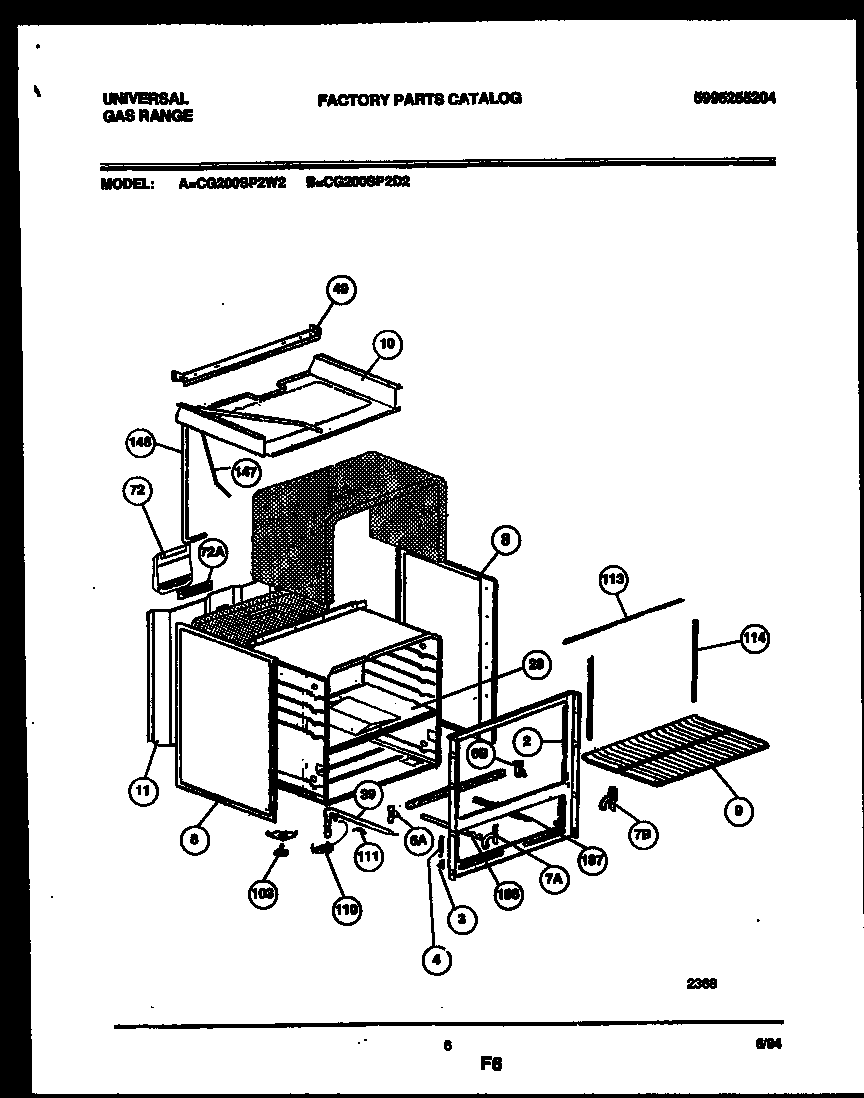

CG200SP2D2 04 – BODY PARTS
Written by
in
CG200SP2D2 04 – BODY PARTS
Products
| Position | Product |
|---|---|
| *10325 | WCI 5303285776 |
| *10325 | INSULATION-OVEN WRAPPER |
| *10325 | WCI 5303285922 |
| *10325 | WCI 5303285775 |
| *10325 | WCI 5303285771 |
| *10325 | CORD-POWER |
| *10325 | WCI 5303285923 |
| *10325 | WCI 5303305212 |
| 3 | WCI 5303285746 |
| 4 | WCI 5303285924 |
| 6B | HINGE-RH-OVEN BODY |
| 7B | HINGE-RH-OVEN DOOR |
| 8 | PANEL-SIDE LH/RH (ALMOND) |
| 9 | WCI 5303285927 |
| 10 | WCI 5303285928 |
| 11 | WCI 5303285929 |
| 28 | WCI 5303285930 |
| 39 | WCI 5303285753 |
| 49 | WCI 5303285931 |
| 72 | VENT BOX |
| 72A | WCI 5303285761 |
| 103 | WCI 5303285762 |
| 110 | WCI 5303285749 |
| 111 | PILOT ASSEMBLY-OVEN |
| 113 | SEAL-TOP OVEN DOOR |
| 114 | SEAL-DOOR SIDES (2) |
| 146 | WCI 5303285933 |
| 147 | WCI 5303285768 |
| 187 | WCI 5303285769 |
| 188 | WCI 5303285770 |
