CG206L 04 – TOP ASSEMBLY
Written by
in

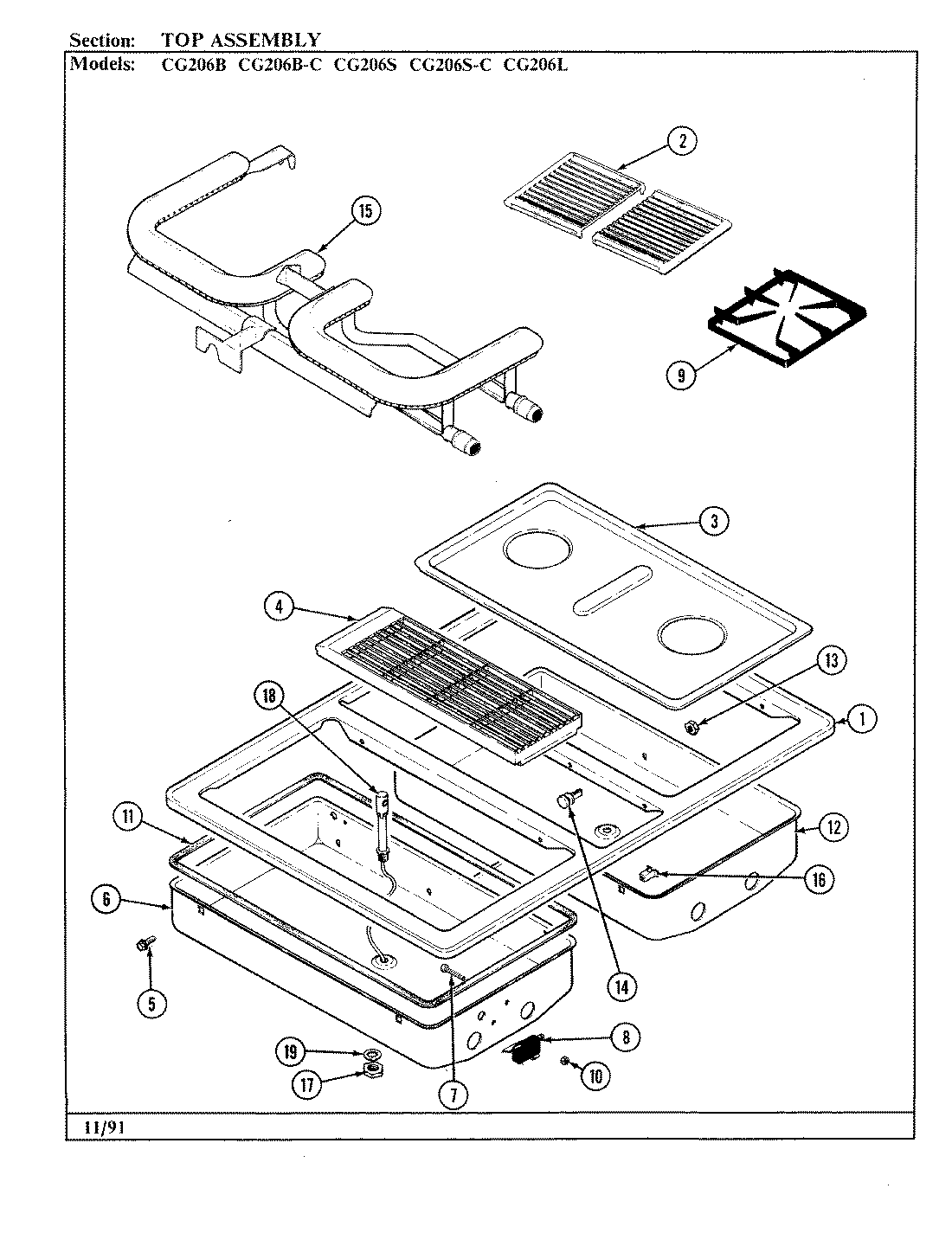

CG206L 04 – TOP ASSEMBLY
Products
Position
Product
1
MAY 712523
2
MAY Y704544
2
MAY Y04100054
3
3401X055-09 Whirlpool Pan
4
MAY Y704570
5
MAY Y707347
6
MAY 704528
6
MAY Y704924
7
MAY 702380
8
MAY 715617
8
7403P620-60 Whirlpool Switch
9
MAY Y704543
9
MAY Y705021
9
MAY Y705483
10
MAY Y704522
10
MAY Y704534
11
MAY Y704979
12
MAY 704529
13
MAY Y704553
14
MAY 704536
15
MAY Y712301
15
Y712601 Whirlpool Burner Grille
15
WP90767 Whirlpool Screw
16
MAY Y700503
17
WPY703856 Whirlpool Nut
18
MAY 704535
19
MAY 704568
←
