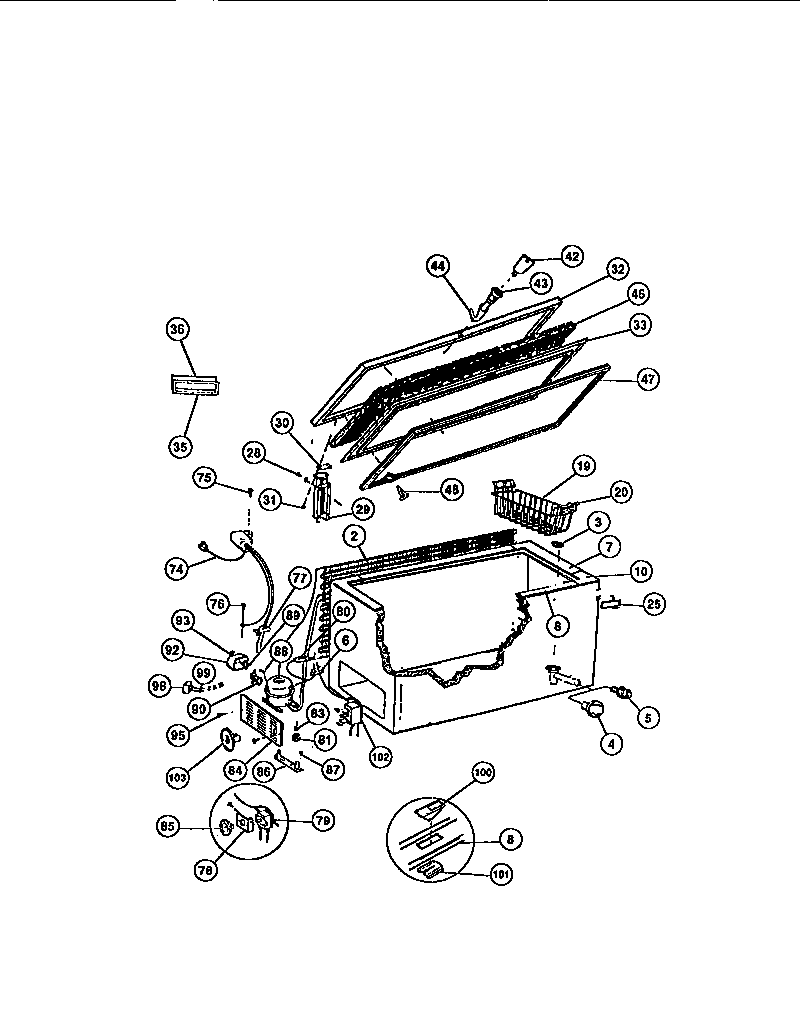

CG20A 02 – CHEST FREEZER PARTS

Products

Position	Product
*44722	HOSE ADAPTER
3	PLUG, DRAIN, LINER
4	WCI 5300128045
6	WCI 06599967
7	WCI 08017009
9	WCI 5300900261
19	BASKET
20	WCI F129037
25	FRAME-NAMEPLATE
28	WCI 5309950602
29	297321900 Frigidaire Refrigerator Hinge Assembly
30	WCI 08037853
31	SCREW HINGE BASE
32	LID-EXTERIOR
33	PANEL-INNER LID
35	WCI 08037955
36	GASKET, WHITE
42	297147700 Frigidaire Freezer Plastic Door Key
43	WCI 5300190358
44	WCI 5300300791
46	WCI 5300128901
47	WCI 5300128155
48	5303212828 Frigidaire Refrigerator Primary Clip
74	WCI 08017013
75	216036601 Frigidaire Refrigerator Screw
77	5303212614 Frigidaire Refrigerator Clip
78	WCI 5308016760
79	THERMOSTAT TEMP (2 TERM)
80	5303305677 Frigidaire Replacement Filter Dryer Filters
81	218513300 Frigidaire Refrigerator Compressor Mount Grommet
83	CLIP (3)
84	ACCESS PANEL-WHITE
85	WCI 5303091432
86	SUPPORT (2)
87	SCREW-COMPRESOR,IND HEX WSHR HD ,10-32T X 1/2,SUPPORT
88	WCI 5303916020
89	WCI 5303017753
90	WCI 5303206836
93	5303006412 Frigidaire Refrigerator Cover Mounting Strap
95	216858001 Frigidaire Refrigerator Screw
98	CAPACITOR
99	WCI 5303091425
