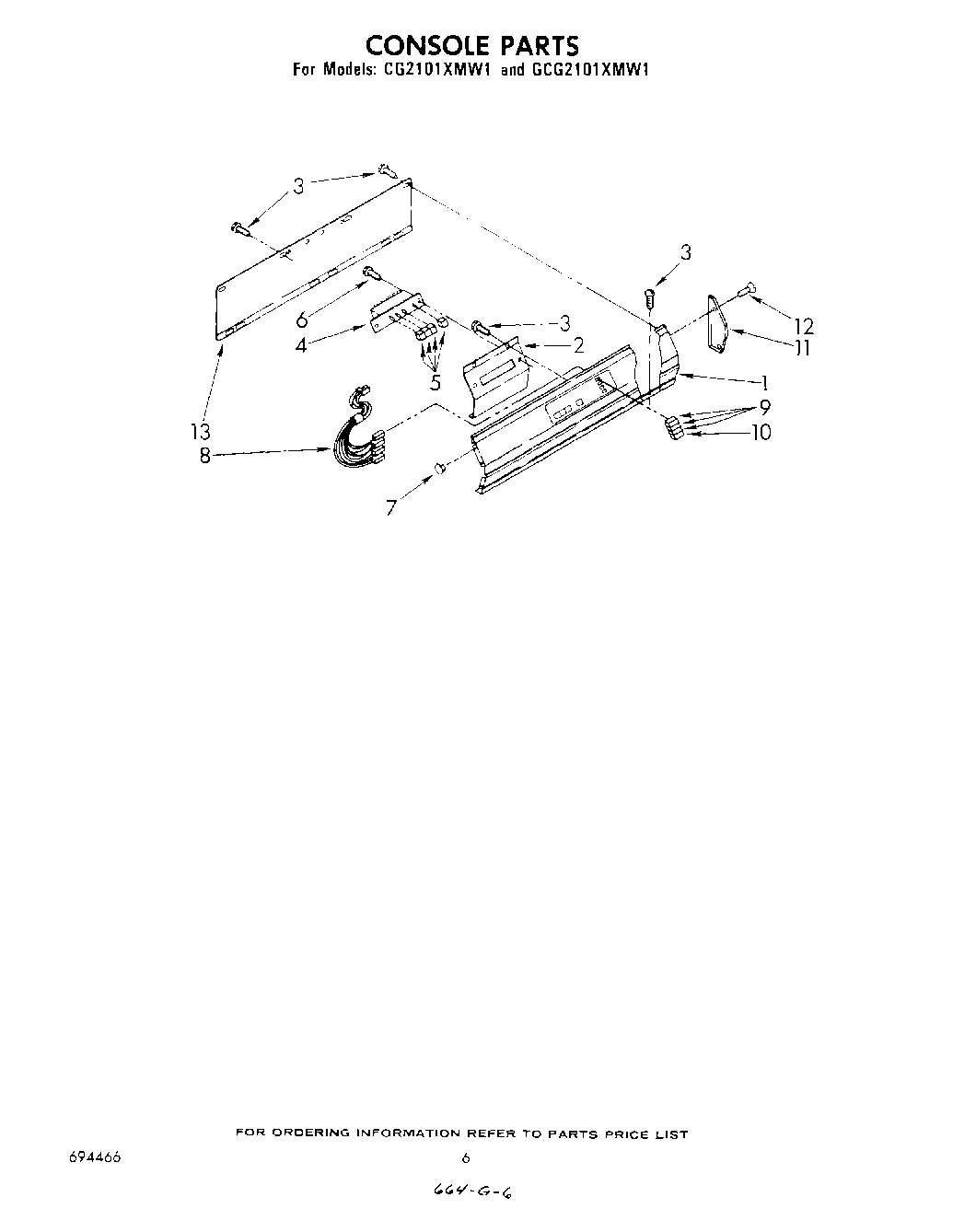

CG2101XMW1 04 – CONSOLE

Written by

Products

Position	Product
1	Billboard, Console
2	Bracket, Control
3	SCREW
4	Switch, Pushbutton
5	Pushbutton (4)
6	WP965173 Whirlpool Dishwasher Screw
7	Plug, Button
8	Indicator Lights Assembly
9	Lens, Amber (3)
10	Lens, Yellow (1)
11	Cap, End (R.H.)
12	WP488627 Whirlpool Refrigerator Screw
13	Panel, Rear Billboard
