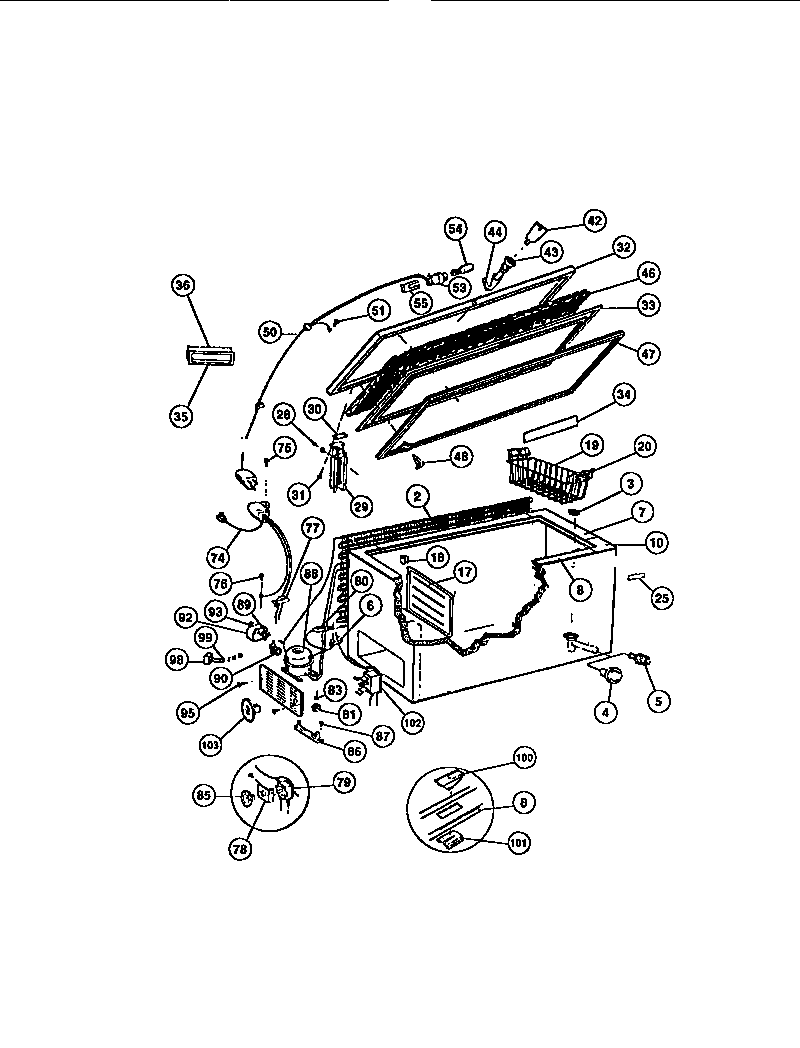

CG23A 02 – DOOR, CABINET & UNIT

CG23A 02 – DOOR, CABINET & UNIT

Written by

in

CG23A 02 – DOOR, CABINET & UNIT

Products

PositionProduct
25300300173 Frigidaire Refrigerator Condenser (O/S2)
3PLUG, DRAIN, LINER
4WCI 5300128045
5RETAINER POWER CORD (NOT ORIGINAL EQUIPMENT. CUSTOMER PU
6WCI 06599967
7WCI 5303207301
8BREAKER REAR
10WCI 5303207302
17WCI 5303283552
18WCI 5306594584
19BASKET
20WCI 5303283650
25FRAME-NAMEPLATE
28WCI 5309950602
29297321900 Frigidaire Refrigerator Hinge Assembly
30CLIP-PANEL (40)
31SCREW HINGE BASE
32WCI 5303283651
33WCI 3201585
34WCI 3204438
35WCI 08037955
36GASKET, WHITE
42297147700 Frigidaire Freezer Plastic Door Key
43WCI 5300190358
44WCI 5300300791
46WCI 5300128901
47GASKET LID-WHITE
485303212828 Frigidaire Refrigerator Primary Clip
50HARNESS LID
53WCI 5306599955
545304517886 Frigidaire Refrigerator Light
55PLATE, BACKUP, LIGHT SWITCH
74WCI 5303212612
76216036601 Frigidaire Refrigerator Screw
775303212614 Frigidaire Refrigerator Clip
78WCI 5308016760
79THERMOSTAT TEMP (2 TERM)
805303305677 Frigidaire Replacement Filter Dryer Filters
81218513300 Frigidaire Refrigerator Compressor Mount Grommet
83CLIP (3)
84WCI 5303273113
85WCI 5303091432
86SUPPORT (2)
87SCREW-COMPRESOR,IND HEX WSHR HD ,10-32T X 1/2,SUPPORT
88COMPRESSOR W/ ELECTRICALS-SERVICE
89WCI 5303017753
90WCI 5303206836
935303006412 Frigidaire Refrigerator Cover Mounting Strap
95216858001 Frigidaire Refrigerator Screw
98CAPACITOR
99WCI 5303091425
100LATCH, DOOR
101LATCH CATCH SUPPORT
