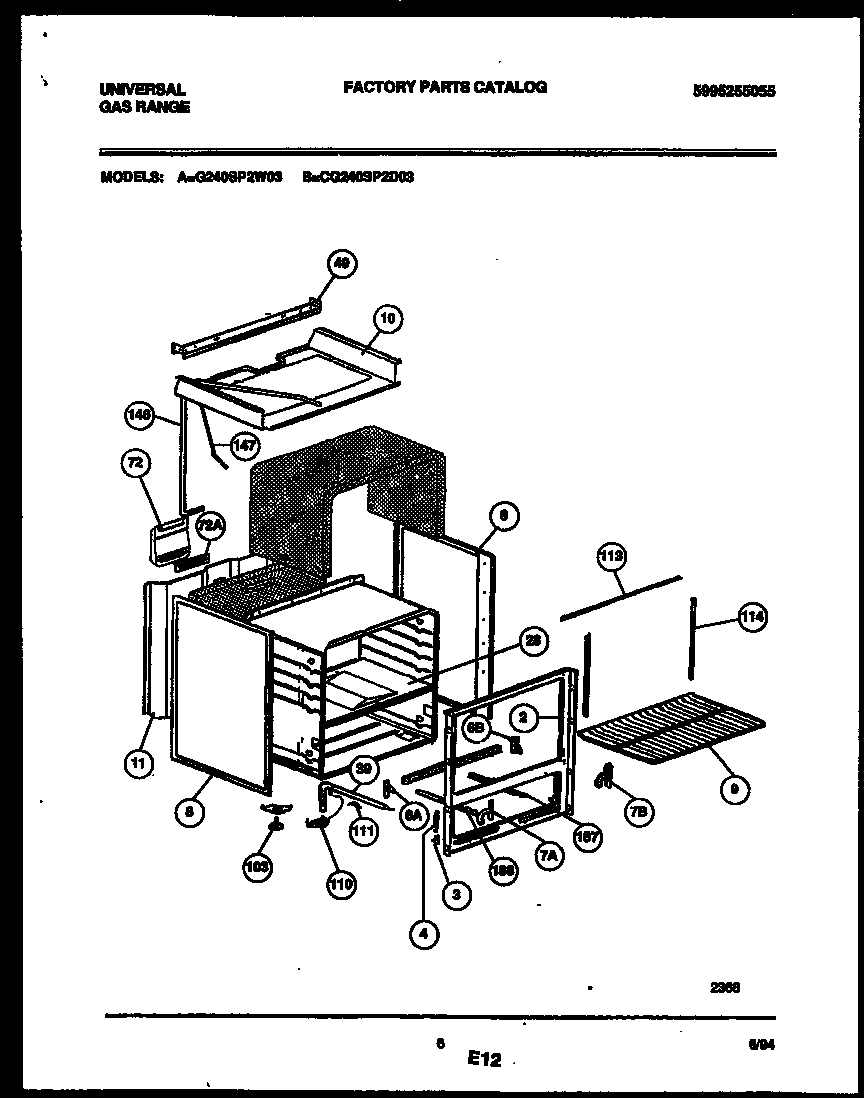

CG240SP2D3 04 – BODY PARTS

CG240SP2D3 04 – BODY PARTS

Written by

in

CG240SP2D3 04 – BODY PARTS

Products

PositionProduct
*10321PLUG-JUMPER
*10321WCI 5303285773
*10321INSULATION-OVEN FRONT
*10321INSULATION-OVEN WRAPPER
*10321WCI 5303285776
*10321WCI 5303285775
*10321WCI 5303285771
*10321CORD-POWER
*10321Seal,heat ,door frame-btm
3WCI 5303285746
4WCI 5303285747
6AWCI 5303285750
6BWCI 5303285751
7BHINGE-RH-OVEN DOOR
8PANEL-SIDE LH/RH (ALMOND)
9WCI 5303285756
10WCI 5303285748
11WCI 5303285754
28WCI 5303285755
39WCI 5303285753
49WCI 5303285758
72AWCI 5303285761
72VENT BOX
103WCI 5303285762
110WCI 5303285749
111PILOT ASSEMBLY-OVEN
113WCI 5303285765
114SEAL-DOOR SIDES (2)
146WCI 5303285767
147WCI 5303285768
187WCI 5303285769
188WCI 5303285770
