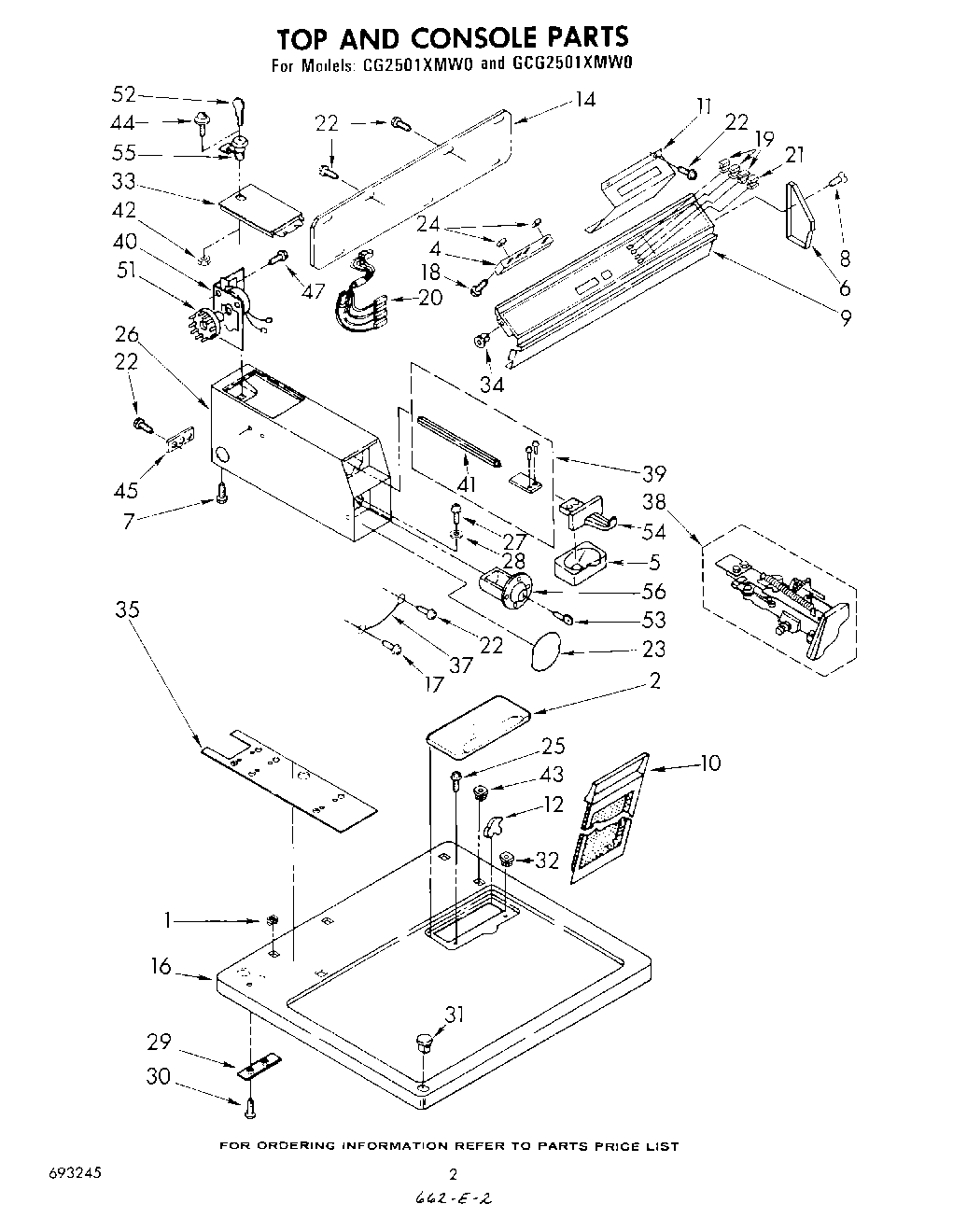

CG2501XMW0 02 – TOP AND CONSOLE

Products

Position	Product
1	Nut, Push-In (2)
2	Cover, Lint Screen (Almond)
2	Cover, Lint Screen (New Avocado)
2	Cover, Lint Screen (White)
2	Cover, Lint Screen (Golden Harvest)
4	Switch, Pushbutton
5	WP385421 Whirlpool Coin Operated Laundry Funnel
6	Cap, End (R.H.)
7	Screw
8	WP488627 Whirlpool Refrigerator Screw
9	Billboard, Console
10	339392V Whirlpool Dryer Lint Filter Screen
11	Bracket, Control
12	WPW10044480 Whirlpool Hinge Assembly
12	WPW10044470 Whirlpool Hinge Assembly
14	WPL 356441
16	Top (New Avocado)
16	Top (White)
16	Top (Golden Harvest)
16	Top (Almond)
17	WP90767 Whirlpool Screw
18	WP965173 Whirlpool Dishwasher Screw
19	Lens, Amber (3)
20	Indicator Lights Assembly
21	Lens, Yellow (1)
22	SCREW
23	WPL 376429
24	Pushbutton (4)
25	W11693756 Whirlpool Screw Assembly
26	Case, Meter (White)
26	Case, Meter (New Avocado)
26	Case, Meter (Golden Harvest)
26	Case, Meter (Almond)
27	Bolt, 5/16-24 x 3/4
28	Lockwasher, 5/16
29	Plate & Nut Assembly
30	W10841059 Whirlpool Screw
31	WP387371 Whirlpool Plug
32	98460 Whirlpool Nut
33	Door, Service (New Avocado)
33	Door, Service (Golden Harvest)
33	Door, Service (Almond)
33	W11283272 Whirlpool Washer Dryer Meter Case Access Door
34	Plug, Button
35	WP3954812 Whirlpool Cushion
37	Wire, Ground
38	Slide & Extension
39	Slide Extension Bag Assembly
40	279737 Whirlpool Dryer Load Timer
41	WP8576635 Whirlpool Bolt
42	WP90406 Whirlpool Nut
43	NUT, PUSH IN
44	Screw & Washer
45	WPL 357856
47	339805 Whirlpool Screw
51	WP339855 Whirlpool Cam
51	WP343777 Whirlpool Cam
51	WP339854 Whirlpool Cam
