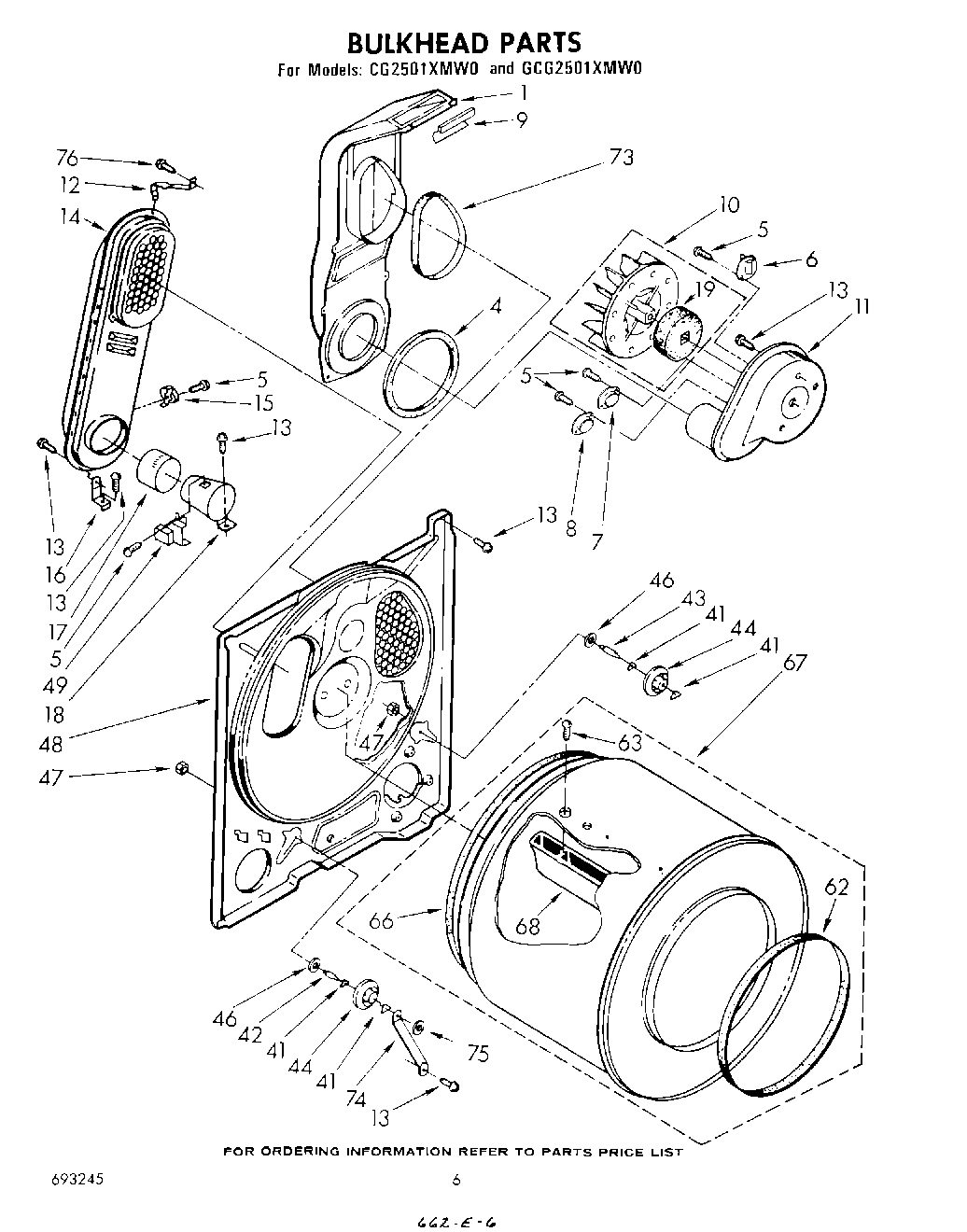

CG2501XMW0 04 – BULKHEAD, LITERATURE AND OPTIONAL

CG2501XMW0 04 – BULKHEAD, LITERATURE AND OPTIONAL

Written by

in

CG2501XMW0 04 – BULKHEAD, LITERATURE AND OPTIONAL

Products

PositionProduct
Golden Harvest (Uncut)
Enamel, New Avocado (1 Qt. Uncut)
799344 Whirlpool Refrigerator Paint
Almond (Uncut)
1279505 Whirlpool Chute
4W11415783 Whirlpool Seal
5WP90767 Whirlpool Screw
6WP3390719 Whirlpool Dryer Thermal Fuse
7WP694674 Whirlpool Cycling Thermostat
9686770 Whirlpool Support Bracket
10WP694089 Whirlpool Dryer Blower Wheel
11Housing, Blower (Export)
12279771 Whirlpool Clip
13SCREW
15Thermostat, 205 F (96 C)
15(Alt.)
15Thermostat SPST (205)
16Support, Heater Box (2)
17279900 Whirlpool Box O/S1
19Seal, Blower
41WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
42SHAFT SUPPORT ROLLER DRYER
43SHAFT SUPPORT ROLLER DRYER
44349241T Whirlpool Dryer Drum Support Roller Kit
46WP348197 Whirlpool Washer Assembly
47WP358160 Whirlpool Nut
48Bulkhead
49WP338906 Whirlpool Dryer Gas Sensor
62WP3394508 Whirlpool Bearing Ring
63Screw, 11-16 x 7/8
66239087 Whirlpool Dryer Rear Drum Seal Green Stitches
673396775 Whirlpool Drum Assembly
68WP342847 Whirlpool Drum Baffle
73SEAL
74Bracket, Support
75WP90296 Whirlpool Clip
76Instructions, Ins
76Instructions, Multi-Venting
76350938 Whirlpool Spray Gun
76WPL 692257
76350956 Whirlpool Spray Assembly
76Leveler (Thinner)
7672017 Whirlpool Appliance Touch-Up Paint White
76WP72107 Whirlpool Touchup
76WPL 799351
7672110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
76350930 Whirlpool White Spray Paint
76Golden Harvest
76Paint, Spray 13 Oz. (Avocado)
7672109 Whirlpool Dacor Avocado Touch-Up Paint
76WPL 693245
