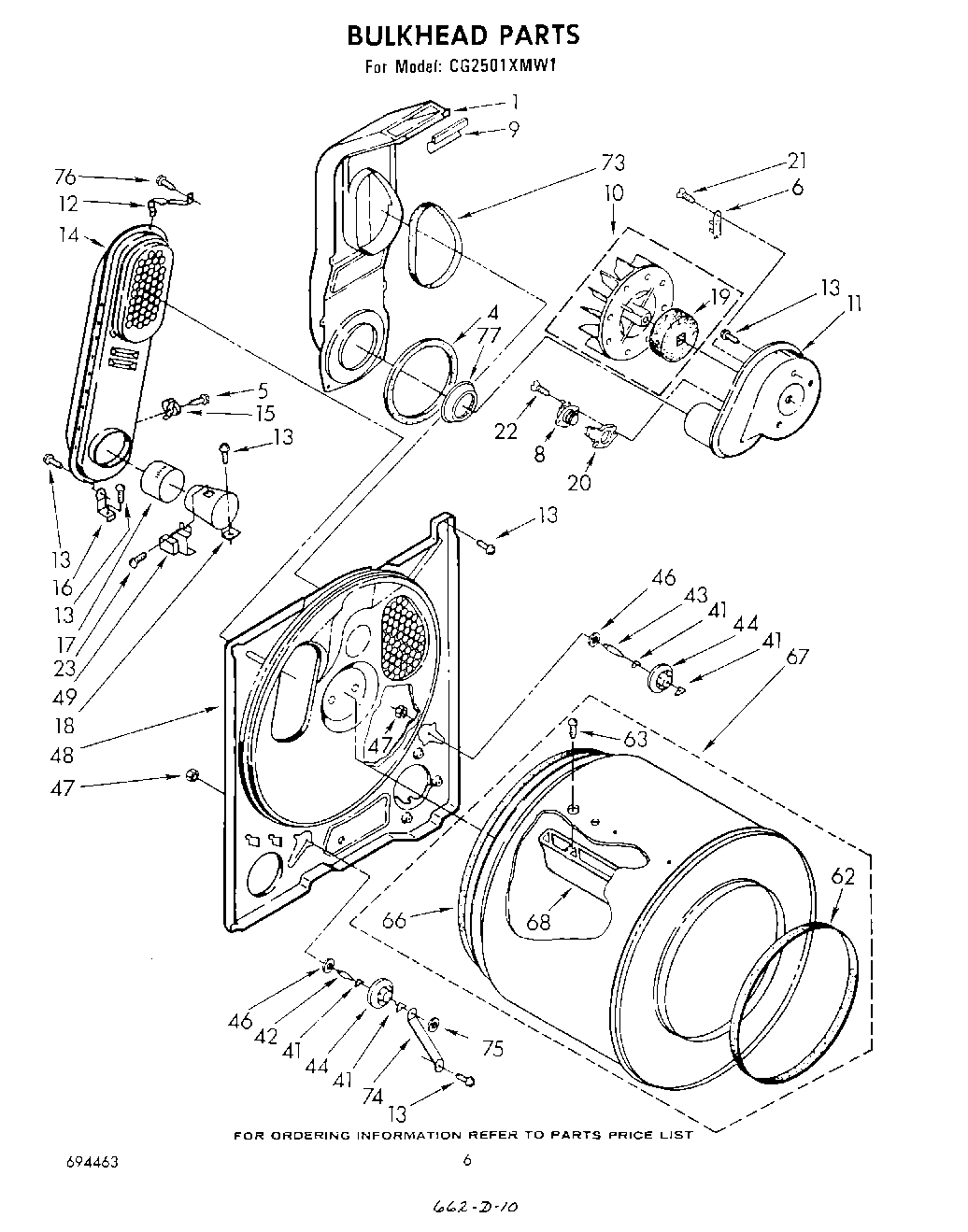

CG2501XMW1 04 – BULKHEAD, LITERATURE AND OPTIONAL

CG2501XMW1 04 – BULKHEAD, LITERATURE AND OPTIONAL

Written by

in

CG2501XMW1 04 – BULKHEAD, LITERATURE AND OPTIONAL

Products

PositionProduct
1279505 Whirlpool Chute
4W11415783 Whirlpool Seal
5WP90767 Whirlpool Screw
6WP3392519 Whirlpool Dryer Thermal Fuse
8WP694674 Whirlpool Cycling Thermostat
9686770 Whirlpool Support Bracket
10WP694089 Whirlpool Dryer Blower Wheel
11Housing, Blower
12279771 Whirlpool Clip
13SCREW
15Thermostat SPST (205)
15Thermostat, 205 F (96 C)
16Support, Heater Box (2)
17279900 Whirlpool Box O/S1
19Seal, Blower
20Thermostat, Heater
21WP965173 Whirlpool Dishwasher Screw
22WP488729 Whirlpool Refrigerator Door Screw
23WP3390631 Whirlpool Screw
41WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
42SHAFT SUPPORT ROLLER DRYER
43SHAFT SUPPORT ROLLER DRYER
44349241T Whirlpool Dryer Drum Support Roller Kit
46WP348197 Whirlpool Washer Assembly
47WP358160 Whirlpool Nut
48Bulkhead
49WP338906 Whirlpool Dryer Gas Sensor
62WP3394508 Whirlpool Bearing Ring
63Screw, 11-16 x 7/8
66239087 Whirlpool Dryer Rear Drum Seal Green Stitches
673396775 Whirlpool Drum Assembly
68WP342847 Whirlpool Drum Baffle
73SEAL
74Bracket, Support
75WP90296 Whirlpool Clip
77Instructions, Multi-Venting
77Leveler (Thinner)
77350956 Whirlpool Spray Assembly
77350938 Whirlpool Spray Gun
77Instructions, Ins
77WPL 692257
77Golden Harvest (Uncut)
7772017 Whirlpool Appliance Touch-Up Paint White
77Golden Harvest
7772110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
77350930 Whirlpool White Spray Paint
77Almond (Uncut)
77W11233063 Whirlpool Shield Assembly
77WP72107 Whirlpool Touchup
7772109 Whirlpool Dacor Avocado Touch-Up Paint
77Paint, Spray 13 Oz. (Avocado)
77799344 Whirlpool Refrigerator Paint
77Enamel, New Avocado (1 Qt. Uncut)
77List, Service Parts
