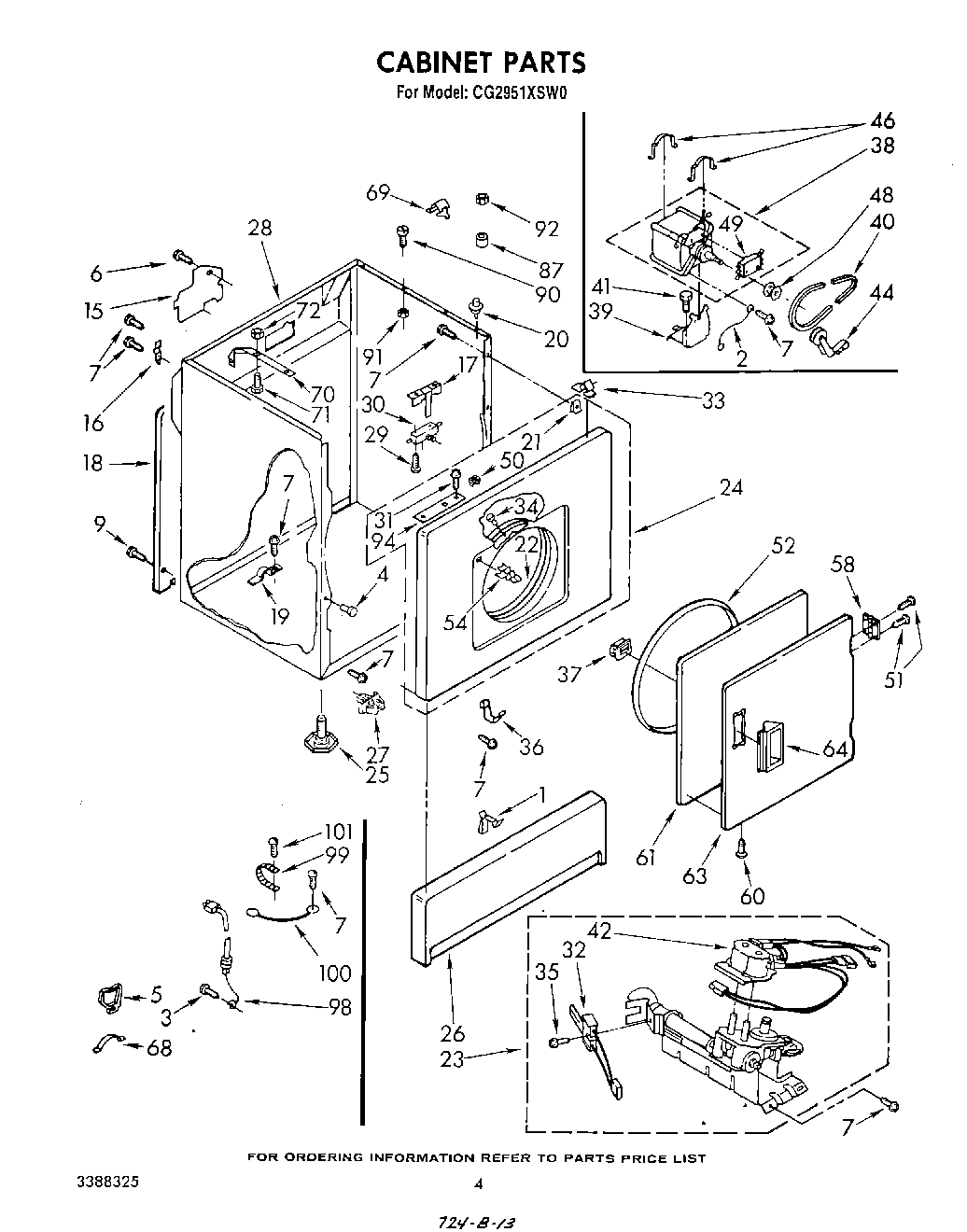

CG2951XSW0 03 – CABINET

CG2951XSW0 03 – CABINET

Written by

in

CG2951XSW0 03 – CABINET

Products

PositionProduct
1WPL 341776
2Wire, Ground (Motor)
4238614 Whirlpool Bumper Hinge
5Clip, Harness (Rear Bulkhead Area)
7SCREW
9WP489069 Whirlpool Compactor Screw
15W11736322 Whirlpool Cover Assembly
16WP8066217 Whirlpool Hinge
17WP691581 Whirlpool Actuator
18Panel, Rear
19341029 Whirlpool Clamp
20Locator, Top
20Locator, Top
21WP98234 Whirlpool Nut
22279264 Whirlpool Bearing and Seal Kit
23Burner Assembly, 60 Hz. (Refer To Burner Assembly Parts Page For Further Breakdown)
24Front Panel Assembly (Almond)
24Front Panel Assembly (Golden Harvest)
24Front Panel Assembly (White)
2549621 Whirlpool Leveling Feet
26Panel, Toe (White)
26Panel, Toe (Almond)
26WPL 697097
27Clip, Toe Panel (2)
28Cabinet (White)
28Cabinet (Golden Harvest)
28Cabinet (Almond)
29WP98129 Whirlpool Screw
30W10820036 Whirlpool Door Switch Kit
31WP90767 Whirlpool Screw
32279311 Whirlpool Dryer Flat Igniter with Bracket
34279220 Whirlpool Clip
35WPW10366705 Whirlpool Screw
36WP297092 Whirlpool Clip
37279570 Whirlpool Dryer Door Latch Kit
39WP348780 Whirlpool Base
40341241 Whirlpool Dryer Drum Belt
413400500 Whirlpool Screw
42279923 Whirlpool Gas Valve
44WP691366 Whirlpool Dryer Idler Pulley Assembly
46WP660658 Whirlpool Clamp
48WP8066184 Whirlpool Dryer Motor Pulley
49279827 Whirlpool Dryer Drive Motor
50WP90406 Whirlpool Nut
52W11613302 Whirlpool Door Seal
58WP348023 Whirlpool Hinge
60WP694091 Whirlpool Screw
61280077 Whirlpool Door
63WP348205 Whirlpool Door
63Door, Front (Almond)
63WPL 689319
64Handle, Door (Golden Harvest)
64Handle, Door (Almond)
64WP686711 Whirlpool Door Handle
688528351 Whirlpool Clip
69WP18776 Whirlpool Lock
70Bracket, Top Lock
71BOLT, 5/16-18 X 2 3/4
87WPL 356674
90WPL 427190
91WP487939 Whirlpool Refrigerator Nut
9290984 Whirlpool Nut
94Bracket
98W11222083 Whirlpool Power Cord
99Strap, Ground
100WPL 364089
101Screw, Ground (10-24 x 1)
