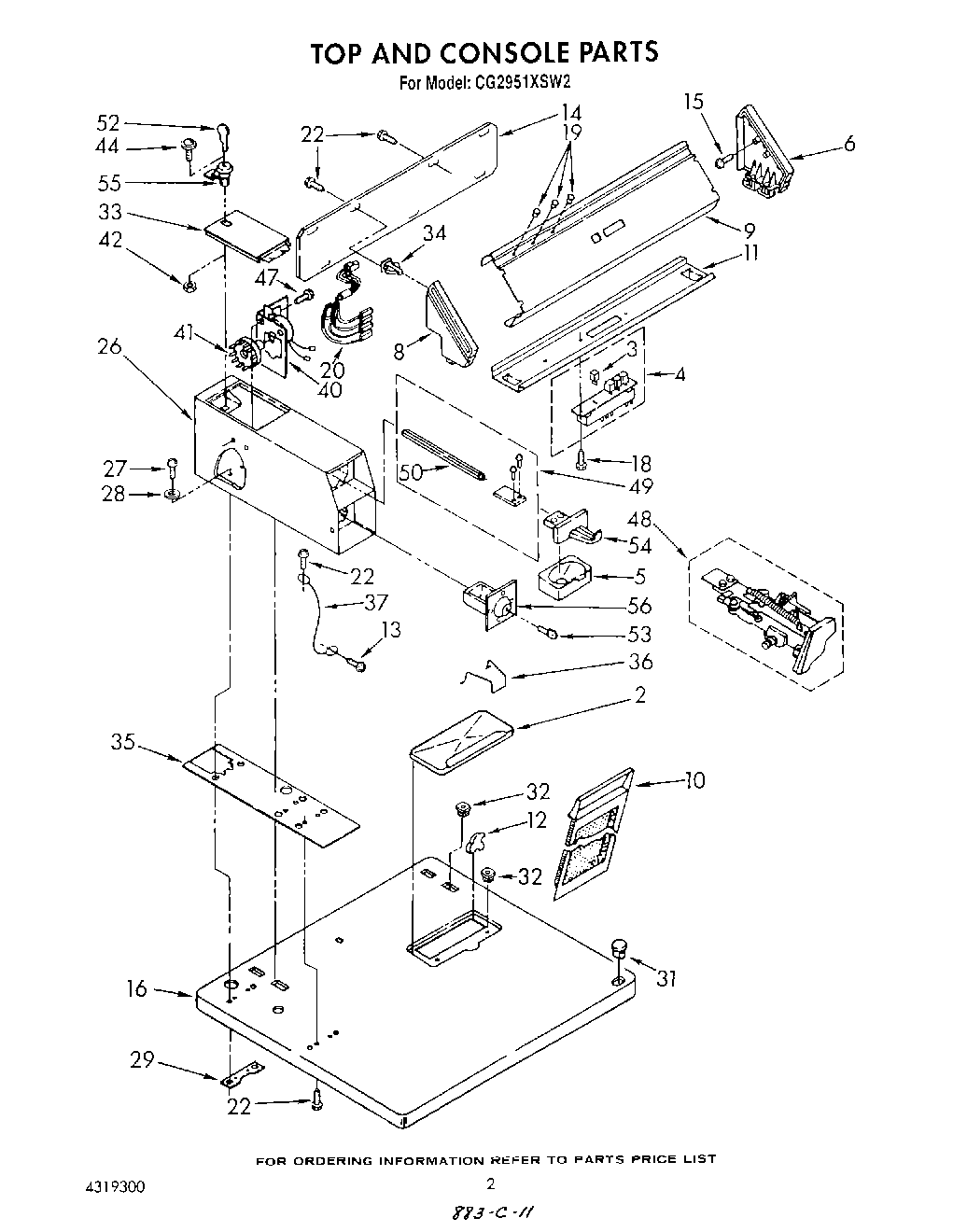

CG2951XSW2 02 – TOP AND CONSOLE

CG2951XSW2 02 – TOP AND CONSOLE

Written by

in

CG2951XSW2 02 – TOP AND CONSOLE

Products

PositionProduct
2Cover, Lint Screen (White)
2Cover, Lint Screen (Almond)
3Button (4)
4SWITCH-PB
5WP385421 Whirlpool Coin Operated Laundry Funnel
6WPL 63795
8End Cap (L.H.)
9Panel, Control
10339392V Whirlpool Dryer Lint Filter Screen
11Bracket, Control
12WPW10044470 Whirlpool Hinge Assembly
12WPW10044480 Whirlpool Hinge Assembly
14Panel, Rear
15WPL 355326
16Top (Almond)
16Top (White)
18WP965173 Whirlpool Dishwasher Screw
19WP3348109 Whirlpool Light Lens
20Lights, Indicator
22SCREW
26Meter Case (Almond)
26Case, Meter (White)
27Bolt, 5/16-24 x 1
28Washer, 5/16
293347825 Whirlpool Plate
31WP387371 Whirlpool Plug
3298460 Whirlpool Nut
33W11283272 Whirlpool Washer Dryer Meter Case Access Door
33Door, Service (Almond)
34WP689559 Whirlpool Nut
35WP3954812 Whirlpool Cushion
36Guide, Drawer
37Wire, Ground
40279737 Whirlpool Dryer Load Timer
41WP343777 Whirlpool Cam
41WP339855 Whirlpool Cam
41WP3387974 Whirlpool Cam
42Nut, Cage
44Screw & Washer
47339805 Whirlpool Screw
