CG2951XSW2 03 – CABINET

CG2951XSW2 03 – CABINET

Written by

in

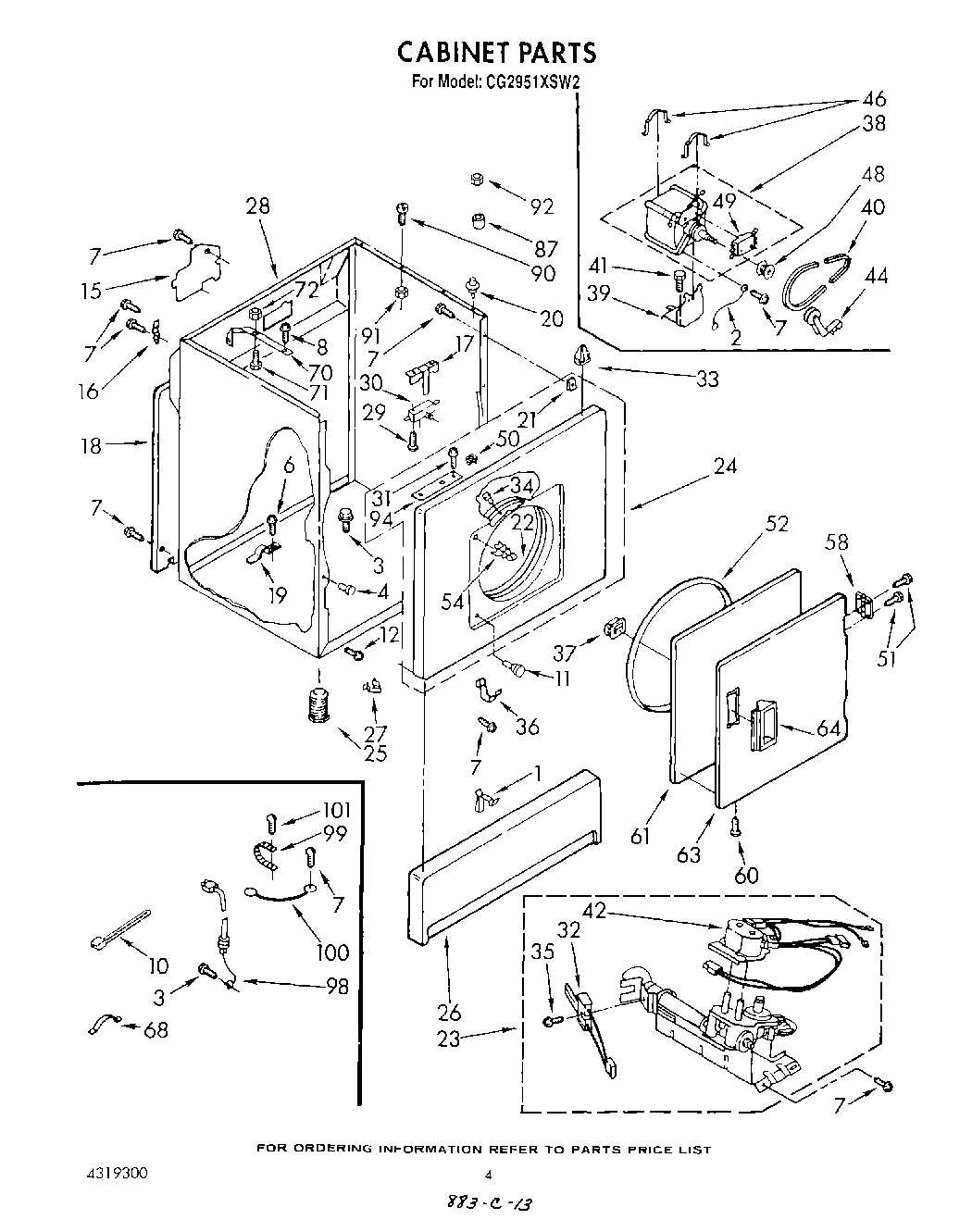

CG2951XSW2 03 – CABINET

Products

PositionProduct
1WPL 341776
2Wire, Ground (Motor)
7SCREW
8WP489128 Whirlpool Refrigerator Screw
10WPW10339879 Whirlpool Wire Tie
11238614 Whirlpool Bumper Hinge
15W11736322 Whirlpool Cover Assembly
16WP8066217 Whirlpool Hinge
17WP691581 Whirlpool Actuator
18Panel, Rear
19341029 Whirlpool Clamp
20Locator, Top
20Locator, Top
21WP98234 Whirlpool Nut
22279264 Whirlpool Bearing and Seal Kit
23Burner Assembly, 60 Hz. (Refer To Burner Assembly Parts Page For Further Breakdown)
24Front Panel Assembly (White)
24Front Panel Assembly (Almond)
2549621 Whirlpool Leveling Feet
26Panel, Toe (Almond)
26Panel, Toe (White)
27Clip, Toe
28Cabinet (Almond)
28Cabinet (White)
29WP98129 Whirlpool Screw
30W10820036 Whirlpool Door Switch Kit
31WP965173 Whirlpool Dishwasher Screw
32279311 Whirlpool Dryer Flat Igniter with Bracket
33WP18776 Whirlpool Lock
34279220 Whirlpool Clip
35WPW10366705 Whirlpool Screw
36WP297092 Whirlpool Clip
37WP3389441 Whirlpool Door Catch
39WP348780 Whirlpool Base
40341241 Whirlpool Dryer Drum Belt
413400500 Whirlpool Screw
42279923 Whirlpool Gas Valve
44WP691366 Whirlpool Dryer Idler Pulley Assembly
46WP660658 Whirlpool Clamp
48WP8066184 Whirlpool Dryer Motor Pulley
49279827 Whirlpool Dryer Drive Motor
50WP90406 Whirlpool Nut
52W11613302 Whirlpool Door Seal
54279570 Whirlpool Dryer Door Latch Kit
58WP348023 Whirlpool Hinge
60WP694091 Whirlpool Screw
61Door, Rear
63Door, Front (White)
63Door, Front (Almond)
64WP3405184 Whirlpool White Door Handle
64Handle, Door (Almond)
688528351 Whirlpool Clip
70WPL 688022
71BOLT, 5/16-18 X 2 3/4
87WPL 356674
91WP487939 Whirlpool Refrigerator Nut
9290984 Whirlpool Nut
94Bracket
98W11222083 Whirlpool Power Cord
99Strap, Ground
100WPL 364089
101Screw, Ground (10-24 x 1)
