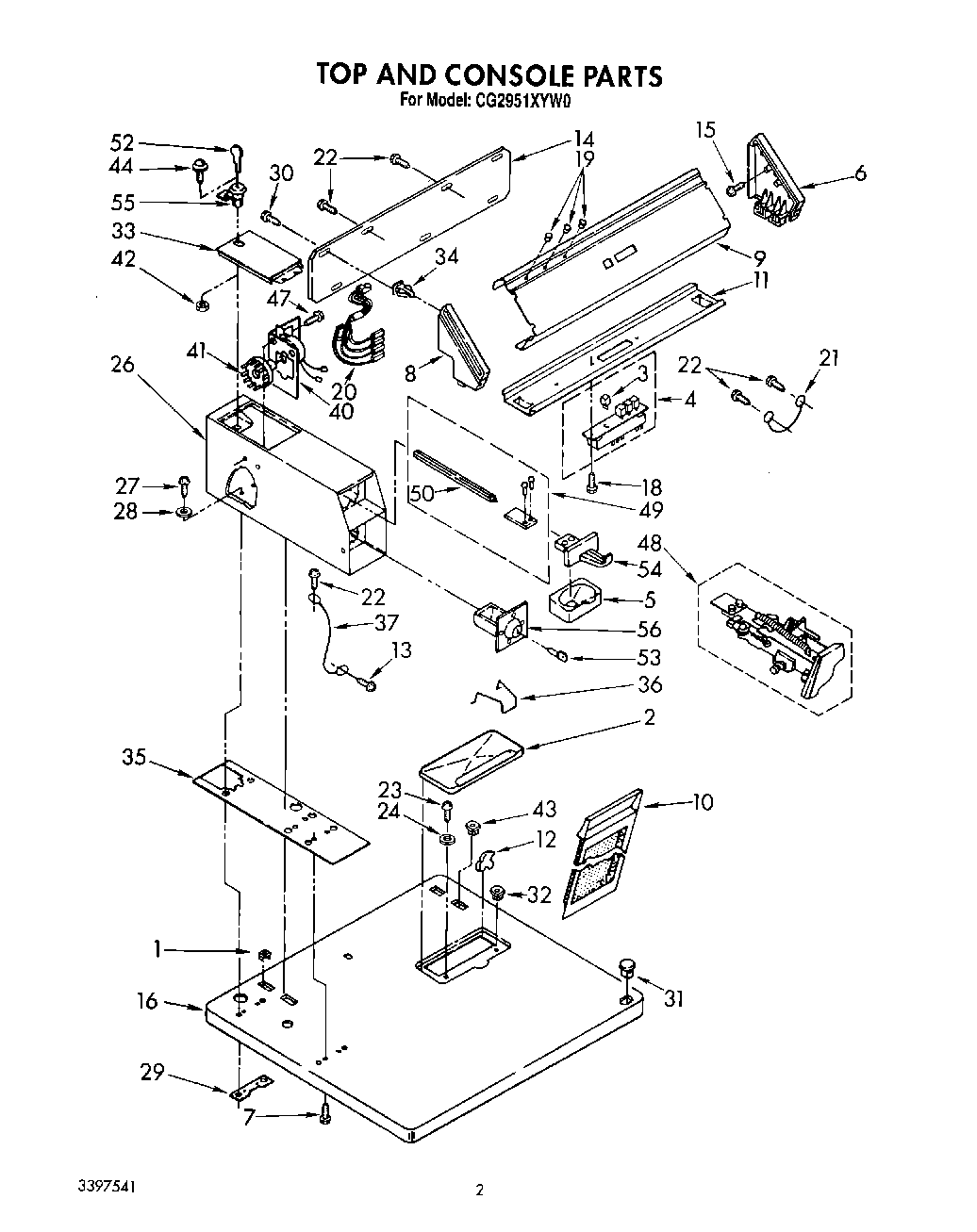

CG2951XYG0 02 – TOP AND CONSOLE

Products

Position	Product
1	Stop, Push-In Top
2	Cover, Lint Screen (Almond)
2	Cover, Lint Screen (Golden Harvest)
2	Cover, Lint Screen (White)
3	Button (4)
4	SWITCH-PB
5	WP385421 Whirlpool Coin Operated Laundry Funnel
6	WPL 63795
7	W10841059 Whirlpool Screw
8	End Cap (L.H.)
9	Panel, Control
10	339392V Whirlpool Dryer Lint Filter Screen
11	Bracket, Control
12	WPW10044470 Whirlpool Hinge Assembly
12	WPW10044480 Whirlpool Hinge Assembly
14	Panel, Rear
15	WPL 355326
16	Top (Golden Harvest)
16	Top (White)
16	Top (Almond)
18	WP965173 Whirlpool Dishwasher Screw
19	WP3348109 Whirlpool Light Lens
20	Lights, Indicator
21	Wire, Ground
22	SCREW
23	W11693756 Whirlpool Screw Assembly
24	Washer
26	Case, Meter (New Gold)
26	Case, Meter (White)
26	Case, Meter (Almond)
27	W11715721 Whirlpool Screw Assembly
28	Lockwasher, 5/16
29	3347825 Whirlpool Plate
30	WPL 64211
31	WP387371 Whirlpool Plug
32	98460 Whirlpool Nut
33	Door, Service (New Gold)
33	W11283272 Whirlpool Washer Dryer Meter Case Access Door
33	Door, Service (For Almond Model)
34	WP689559 Whirlpool Nut
35	WP3954812 Whirlpool Cushion
36	Guide, Drawer
37	Wire, Ground
40	279737 Whirlpool Dryer Load Timer
41	WP343777 Whirlpool Cam
41	WP3387974 Whirlpool Cam
42	WP90406 Whirlpool Nut
43	Nut, Push-In (2)
44	Screw & Washer
47	339805 Whirlpool Screw
