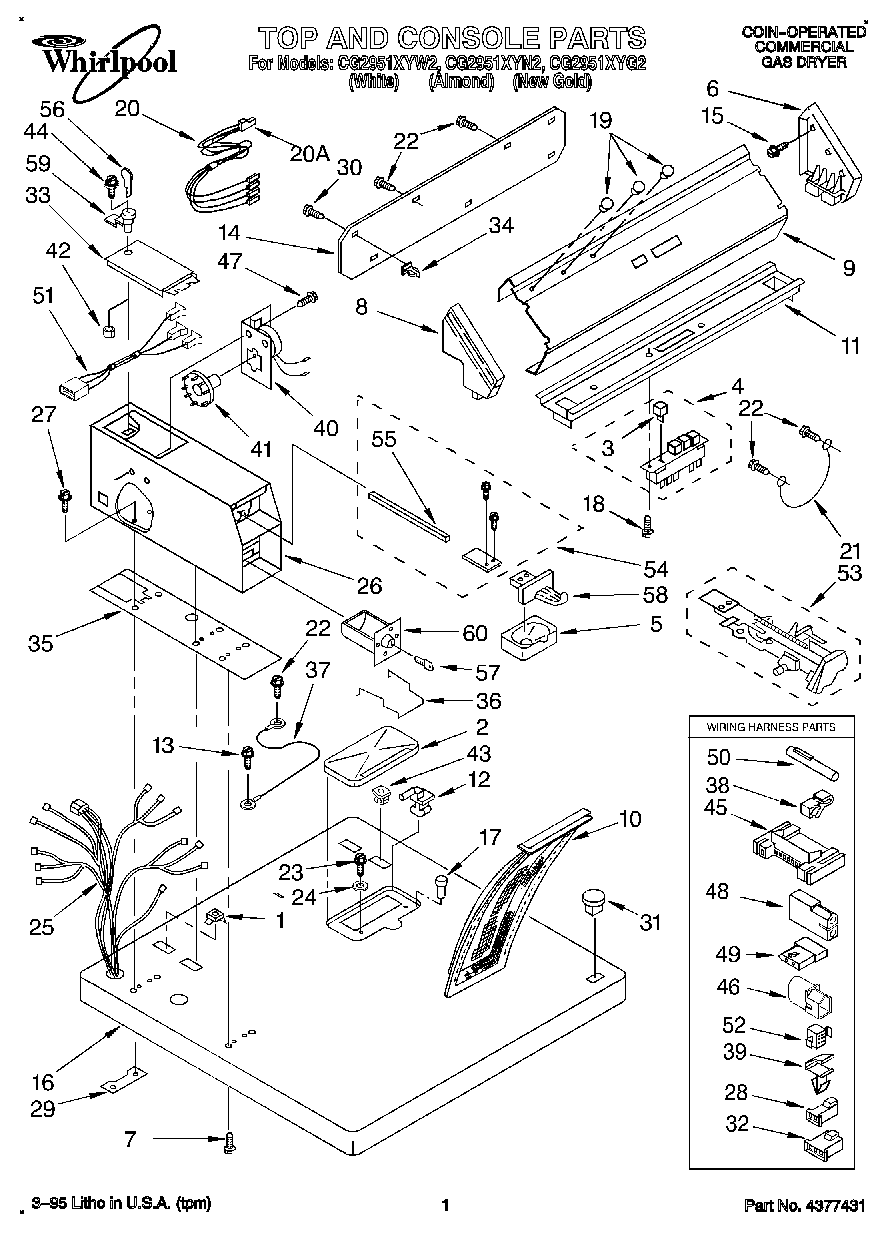

CG2951XYG2 01 – TOP AND CONSOLE

Products

Position	Product
1	Stop, Push-In Top
2	Cover, Lint Screen
3	Button (4)
4	Switch, Pushbutton
5	WP385421 Whirlpool Coin Operated Laundry Funnel
6	WPL 63795
7	W10841059 Whirlpool Screw
8	End Cap (L.H.)
9	Panel, Control
10	339392V Whirlpool Dryer Lint Filter Screen
11	Bracket, Control
12	WPW10044470 Whirlpool Hinge Assembly
12	WPW10044480 Whirlpool Hinge Assembly
14	Panel, Rear
15	WPW10109200 Whirlpool Screw
16	Top (White)
16	Top (Almond)
16	Top (New Gold)
17	Bumper, Lint Lid
18	WP965173 Whirlpool Dishwasher Screw
19	WP3348109 Whirlpool Light Lens
20	Lights, Indicator (240 Volts)
20A	Plug
21	Wire, Ground
22	SCREW
23	W11693756 Whirlpool Screw Assembly
24	Washer
25	Harness, Wiring
26	Case, Meter (White)
26	Case, Meter (New Gold)
26	Case, Meter (Almond)
27	W11715721 Whirlpool Screw Assembly
28	Connector, 2-Position (Gas Valve)
29	3347825 Whirlpool Plate
30	WPL 64211
31	WP387371 Whirlpool Plug
32	Connector, 3-Position (Gas Valve)
33	Door, Service (For Almond Model)
33	Door, Service (New Gold)
33	W11283272 Whirlpool Washer Dryer Meter Case Access Door
34	WP689559 Whirlpool Nut
35	WP3954812 Whirlpool Cushion
36	Guide, Drawer
37	Wire, Ground
38	Clip, Retainer
39	WP3394427 Whirlpool Clip
40	279737 Whirlpool Dryer Load Timer
41	WP343777 Whirlpool Cam
41	WP3387974 Whirlpool Cam
42	WP90406 Whirlpool Nut
43	Nut, Push-In (2)
44	Screw & Washer
45	3395683 Whirlpool Connector
47	339805 Whirlpool Screw
48	Receptacle, Latching (2-Way) (Uses Terminal 94614)
49	WP717253 Whirlpool Dishwasher Connector
50	Receptacle
51	3401126 Whirlpool Wire Harness
52	Plug
