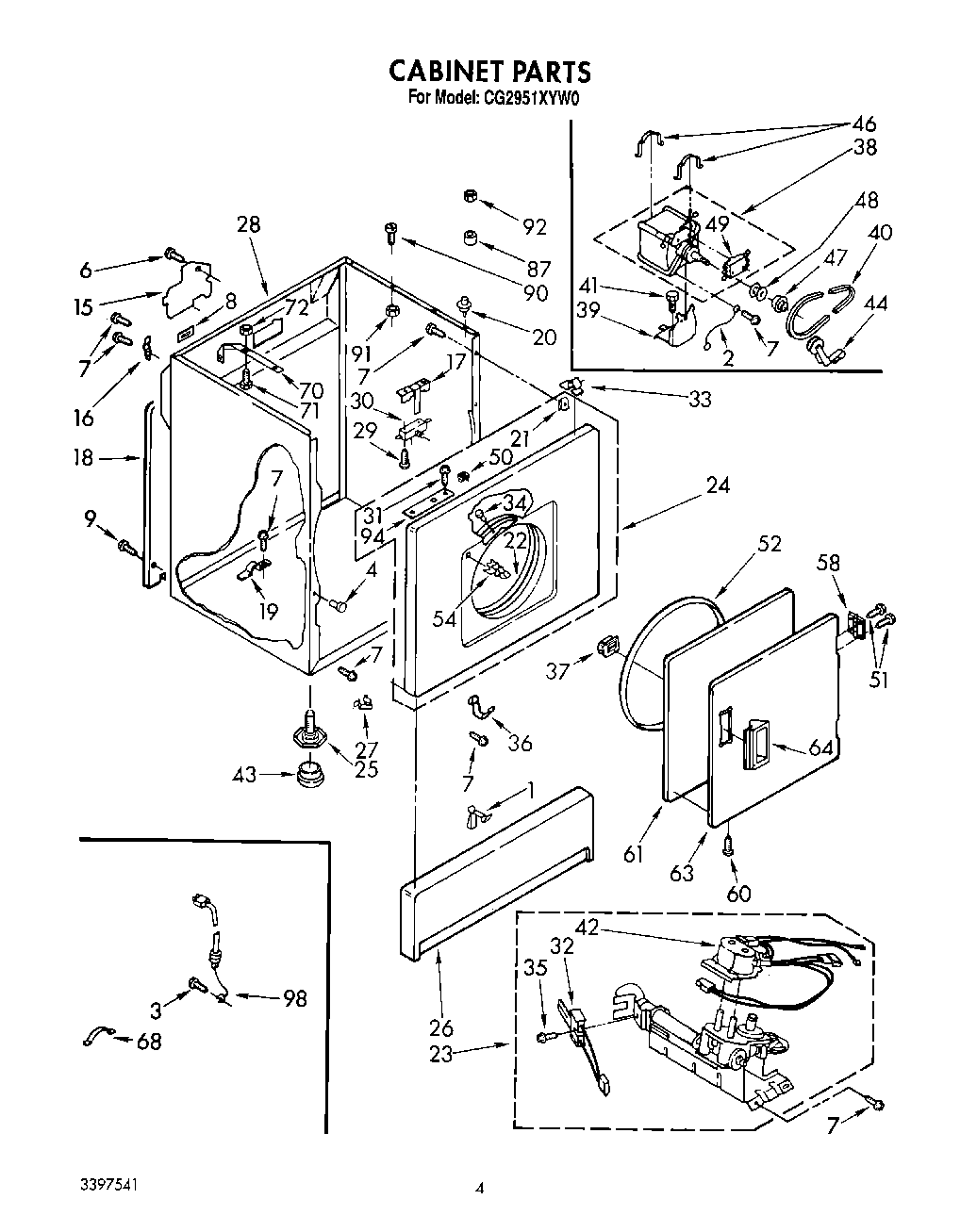

CG2951XYN0 03 – CABINET

CG2951XYN0 03 – CABINET

Written by

in

CG2951XYN0 03 – CABINET

Products

PositionProduct
1WP3388229 Whirlpool Dryer Spring Clip
2Wire, Ground (Motor)
3W10850756 Whirlpool Screw
4238614 Whirlpool Bumper Hinge
7SCREW
818849 Whirlpool Pad
9WP489069 Whirlpool Compactor Screw
15W11736322 Whirlpool Cover Assembly
16WP8066217 Whirlpool Hinge
17WP691581 Whirlpool Actuator
18Panel, Rear
19341029 Whirlpool Clamp
20Locator, Top
20Locator, Top
21WP98234 Whirlpool Nut
22279264 Whirlpool Bearing and Seal Kit
23Burner Assembly, 60 Hz. (Refer To Burner Assembly Parts Page For Further Breakdown)
24Front Panel Assembly (White)
24Front Panel Assembly (Golden Harvest)
24Front Panel Assembly (Almond)
2549621 Whirlpool Leveling Feet
26WPL 697097
26Panel, Toe (Almond)
26Panel, Toe (White)
27Clip, Toe
28Cabinet (Golden Harvest)
28Cabinet (Almond)
28Cabinet (White)
29WP98129 Whirlpool Screw
30W10820036 Whirlpool Door Switch Kit
31WP90767 Whirlpool Screw
32279311 Whirlpool Dryer Flat Igniter with Bracket
33WP18776 Whirlpool Lock
34279220 Whirlpool Clip
35WPW10366705 Whirlpool Screw
36WP297092 Whirlpool Clip
37WP3389441 Whirlpool Door Catch
39WP348780 Whirlpool Base
40341241 Whirlpool Dryer Drum Belt
413400500 Whirlpool Screw
42279923 Whirlpool Gas Valve
43WP3391943 Whirlpool Foot Boot
44WP691366 Whirlpool Dryer Idler Pulley Assembly
46WP660658 Whirlpool Clamp
47WP3393657 Whirlpool Belt Retainer
48WP8066184 Whirlpool Dryer Motor Pulley
49279827 Whirlpool Dryer Drive Motor
50WP90406 Whirlpool Nut
52W11613302 Whirlpool Door Seal
54279570 Whirlpool Dryer Door Latch Kit
58WP348023 Whirlpool Hinge
60WP694091 Whirlpool Screw
61280077 Whirlpool Door
63WPL 689319
63WP348205 Whirlpool Door
63Door, Front (Almond)
64WPL 689586
64WP686711 Whirlpool Door Handle
64Handle, Door (Almond)
688528351 Whirlpool Clip
70Bracket, Top Lock
71BOLT, 5/16-18 X 2 3/4
87WPL 356674
90WPL 427190
91WP487939 Whirlpool Refrigerator Nut
9290984 Whirlpool Nut
94Bracket, Front Top Lock
98W11222083 Whirlpool Power Cord
