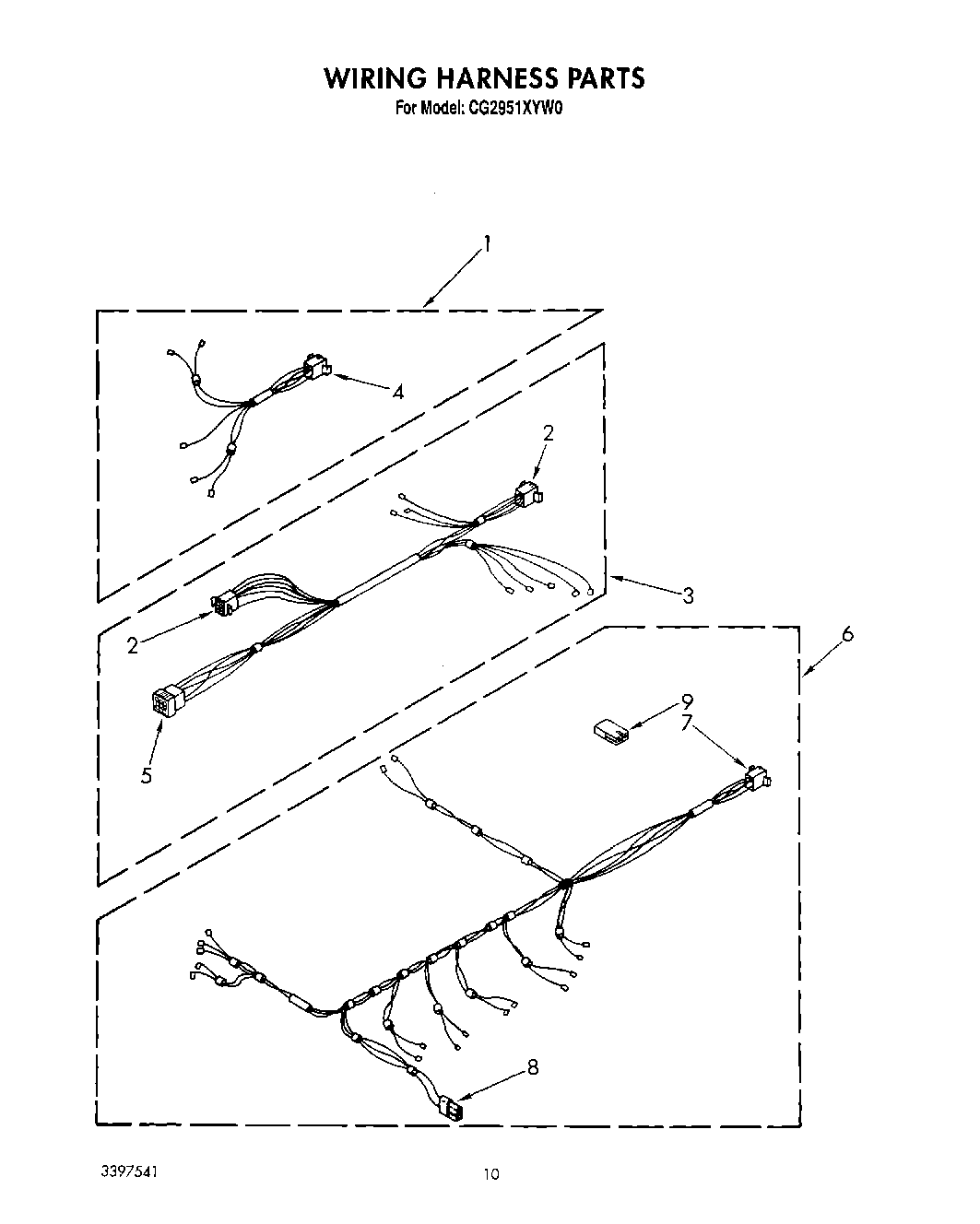

CG2951XYN0 06 – WIRING HARNESS

Written by

Products

Position	Product
1	Harness, Timer
2	Plug, Terminal (6 Way)
3	+Harness, Wiring (Upper)
4	Cap, Terminal (6-Way) (Uses Terminal 94614)
5	Cap, Terminal (Console Harness)
6	+Harness, Wiring (Lower)
7	Plug, Mult- Terminal (Uses Terminals 94613)
8	Receptacle, 3-Way Terminal (Use W/94614)
9	Receptacle, Latching (2-Way) (Uses Terminal 94614)
