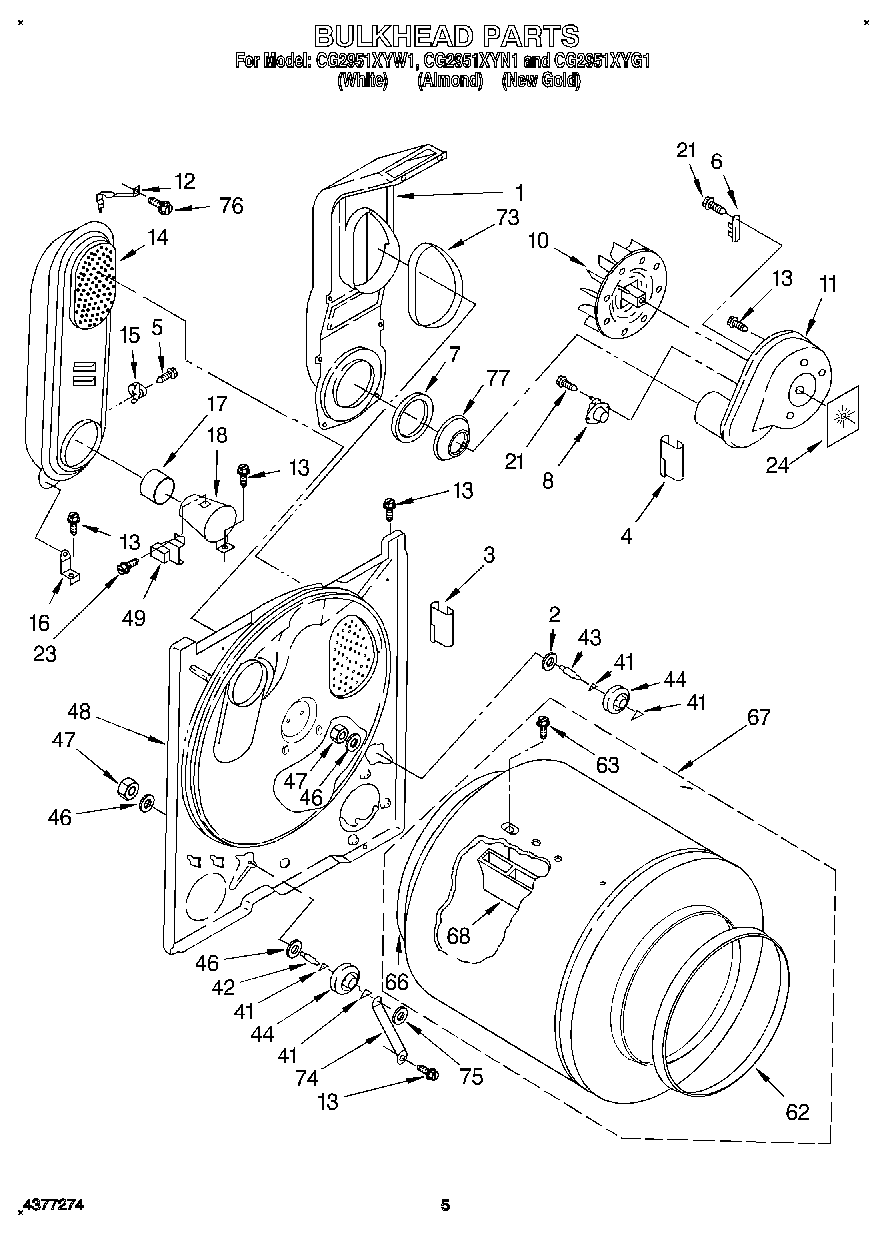

CG2951XYW1 03 – BULKHEAD, LIT/OPTIONAL
Written by
in
CG2951XYW1 03 – BULKHEAD, LIT/OPTIONAL
Products
Position
Product
350930 Whirlpool White Spray Paint
WPL LIT348772
WPL LIT692257
Golden Harvest (Uncut)
Golden Harvest
72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
Instructions, Installation
Label, Wiring Diagram
Almond (Uncut)
350938 Whirlpool Spray Gun
350956 Whirlpool Spray Assembly
72017 Whirlpool Appliance Touch-Up Paint White
799344 Whirlpool Refrigerator Paint
WP72107 Whirlpool Touchup
1
279505 Whirlpool Chute
2
WP3388703 Whirlpool Washer
4
686889 Whirlpool Pad
5
WP90767 Whirlpool Screw
6
WP3392519 Whirlpool Dryer Thermal Fuse
7
W11415783 Whirlpool Seal
8
WP3387134 Whirlpool Dryer Cycling Thermostat
10
WP694089 Whirlpool Dryer Blower Wheel
11
Housing, Blower
12
279771 Whirlpool Clip
13
SCREW
15
W11568973 Whirlpool Thermostat Fix
16
Support, Heater Box (2)
17
279900 Whirlpool Box O/S1
21
WP965173 Whirlpool Dishwasher Screw
23
WP3390631 Whirlpool Screw
24
Seal, Blower
41
WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
42
SHAFT SUPPORT ROLLER DRYER
43
SHAFT SUPPORT ROLLER DRYER
44
349241T Whirlpool Dryer Drum Support Roller Kit
46
WP348197 Whirlpool Washer Assembly
47
WP3359452 Whirlpool Nut
48
Bulkhead
49
WP338906 Whirlpool Dryer Gas Sensor
62
WP3394508 Whirlpool Bearing Ring
63
WPW10109200 Whirlpool Screw
66
239087 Whirlpool Dryer Rear Drum Seal Green Stitches
67
3396775 Whirlpool Drum Assembly
68
WP342847 Whirlpool Drum Baffle
73
SEAL
74
Bracket, Support
75
WP90296 Whirlpool Clip
76
WP489463 Whirlpool Refrigerator Screw
77
W11233063 Whirlpool Shield Assembly
←
