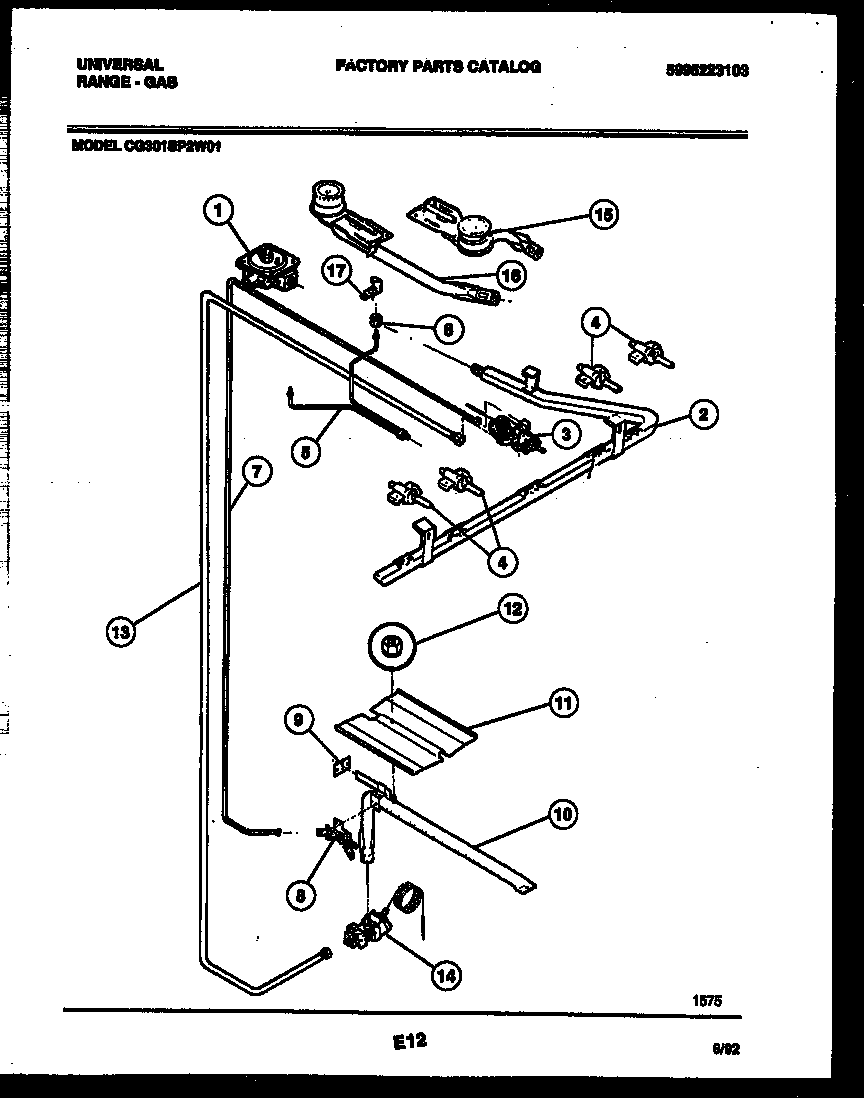

CG301SP2W1 06 – BURNER PARTS

Products

Position	Product
*58428	SCREW-THERMOSTAT, (2) (NOT ILLUSTRATED)
1	WCI 5303016997
2	WCI 5303280588
3	THERMOSTAT
4	VALVE-TOP BURNER, 2 POSITION, (4), W/SCREWS
4A	316048200 Frigidaire Oven Screw
5	TUBING-TOP PILOT, DUAL
6	CAP-TOP PILOT, (2)
7	Tubing`thermo/pilot `3/16 ,alum
8	WCI 5303280589
9	WCI 3018603
10	WCI 5303280585
11	WCI 3203265
12	5303013272 Frigidaire Oven Nut
13	TUBE - ALUM THERMO/SAFETY W/ FIT
14	WCI 5303280593
15	5304506427 Frigidaire Oven Range Surface Burner (White)
16	5304506426 Frigidaire Oven Top Rear Burner
17	SHIELD-PILOT, STAINLESS STEEL, (2)
