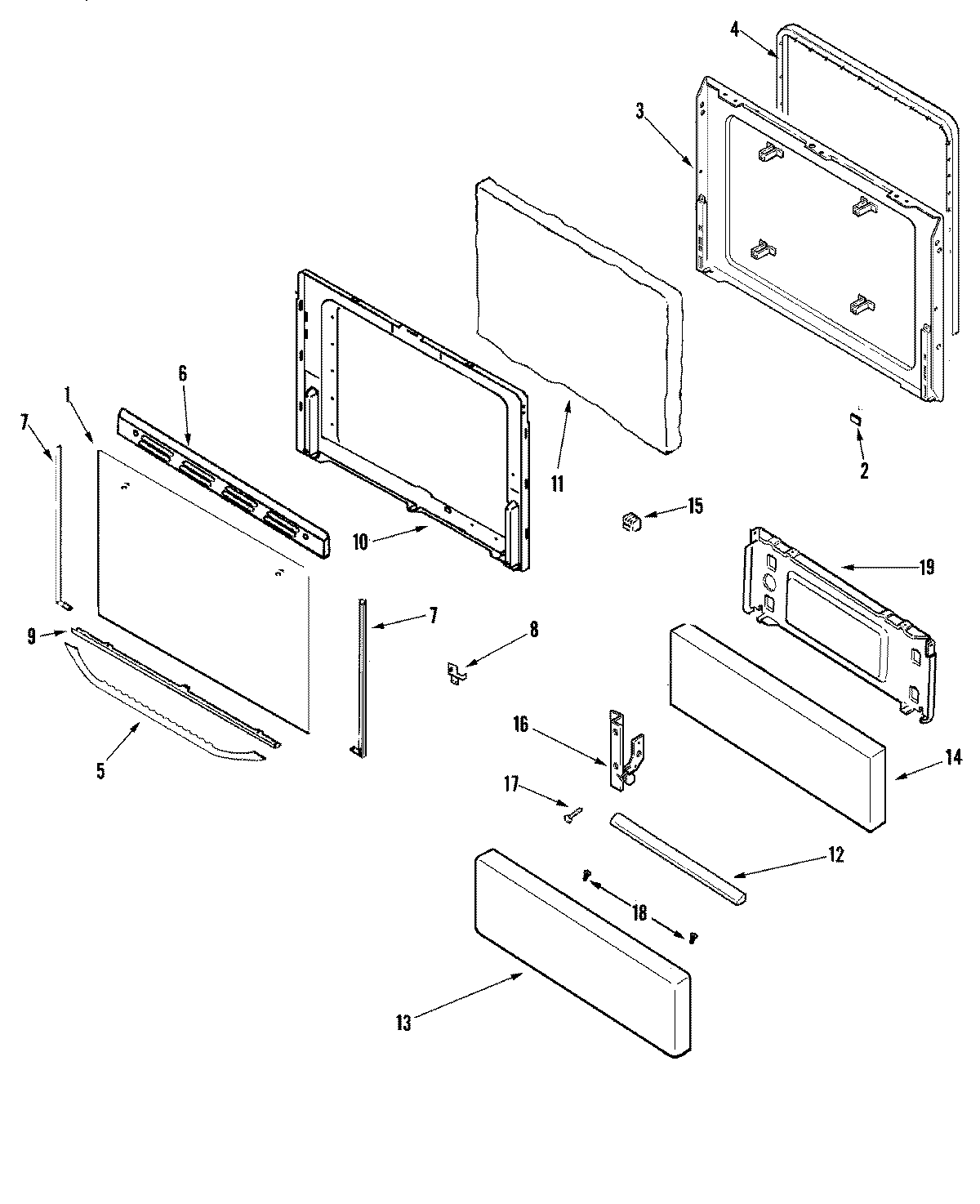

CG31200ADW 03 – DOOR/DRAWER (ADW)

CG31200ADW 03 – DOOR/DRAWER (ADW)

Written by

in

CG31200ADW 03 – DOOR/DRAWER (ADW)

Products

PositionProduct
1MAY 74010447
1MAY 74010335
2WP74005546 Whirlpool RU Spacer
3MAY 74009377
4WP7212P043-60 Whirlpool Oven Door Seal Gasket
5MAY 74010338
5WP74006515 Whirlpool Washer Screw
6MAY 74010239
7WP3608F117-70 Whirlpool Door Trim
7WP3608F116-70 Whirlpool Door Trim
7WP74004224 Whirlpool Tape
7NUT, SNAP (ROUND-BLK)
7MAY 74009801
83801F832-45 Whirlpool Bracket
83801F831-45 Whirlpool Bracket Assembly
9SUPPORT, GLASS (BLK)
10MAY 3601F218-51
11MAY 74001842
12MAY 74010423
13MAY 74001729
14MAY 74001814
15MAY 74001663
17MAY 74009897
18SCREW
19SPACER, RUBBER (BLK-SQUARE)
19MAY 74007553
