CG31200BDQ 05 – OVEN/BASE

CG31200BDQ 05 – OVEN/BASE

Written by

in

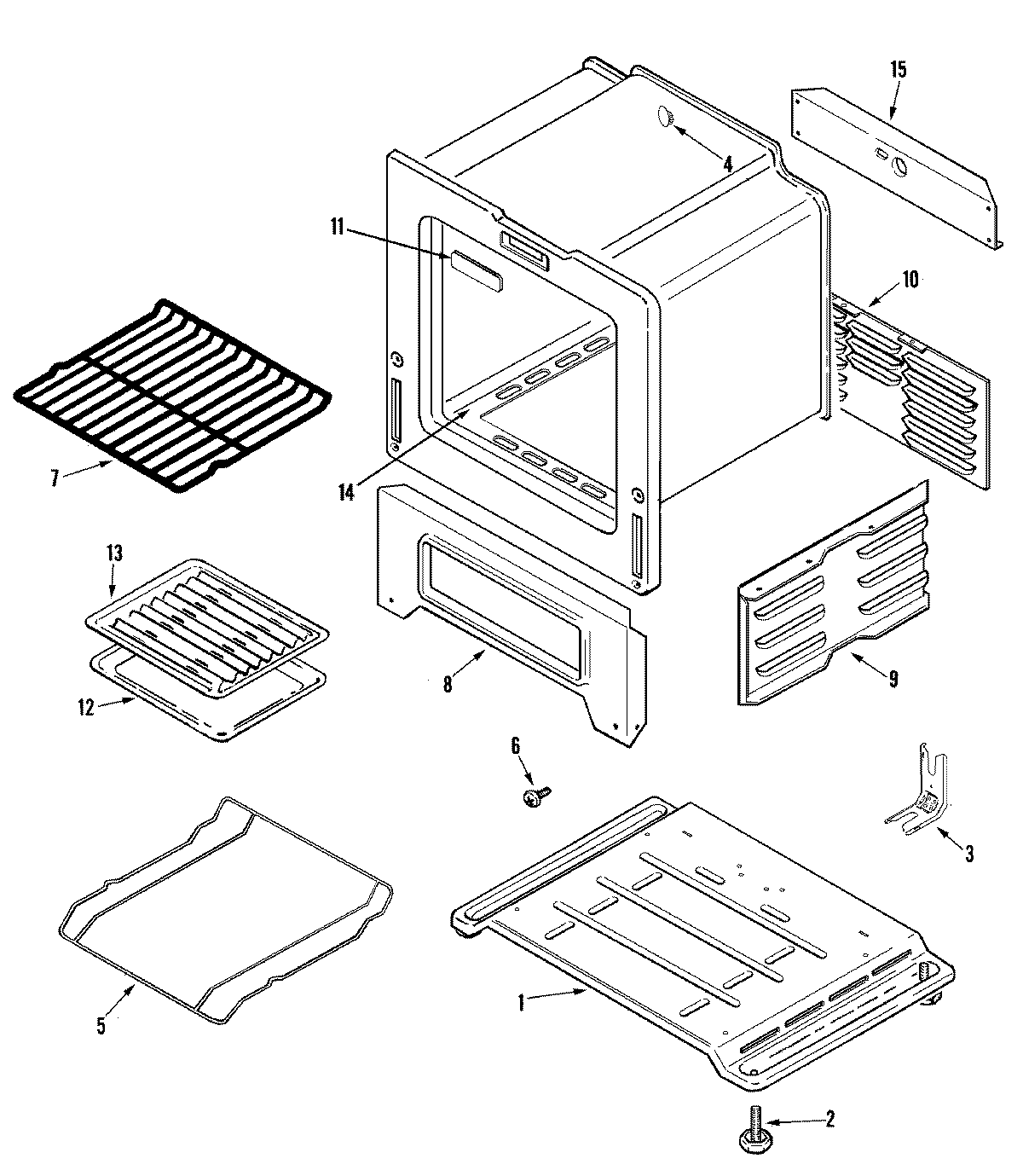

CG31200BDQ 05 – OVEN/BASE

Products

PositionProduct
1MAY 74010140
2W11665456 Whirlpool Range Level Foot
3WP7101P485-60 Whirlpool Anchor Tip
3WP3801F656-51 Whirlpool Range Anti-Tip Bracket
4MAY 74002380
5MAY 74002381
6WP98008545 Whirlpool Screw
7WPW10282492 Whirlpool Oven Rack
8MAY 74002327
9MAY 74002375
9MAY 74002374
10MAY 74002379
11PLUG, LOCK SLOT
12MAY Y3401F02019
13MAY Y3413F01619
14MAY 74002393
14MAY 71001394
14MAY 74011228
14MAY 74010812
15SCREW
15MAY 74010139
