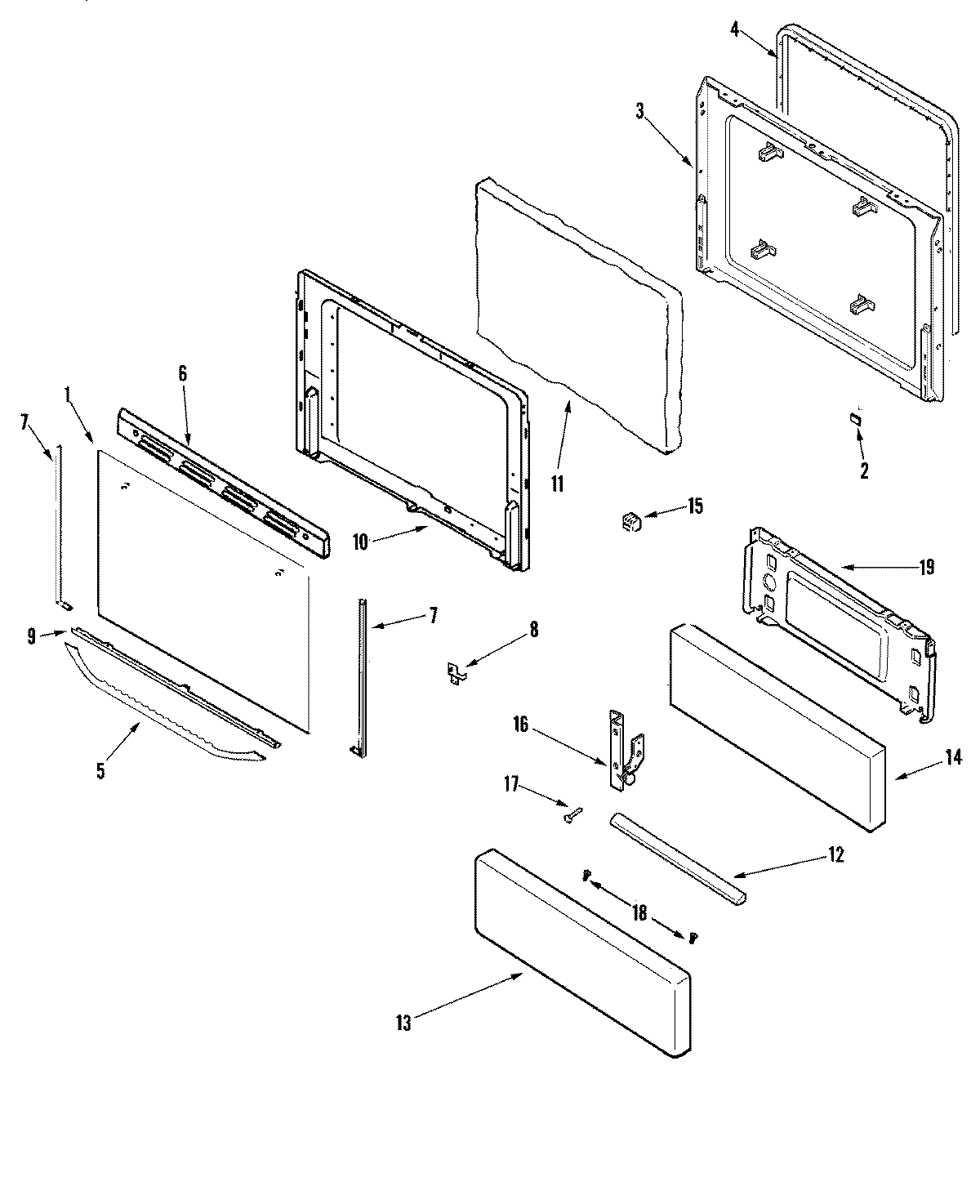

CG31200BDW 03 – DOOR/DRAWER (BDW)

Products

Position	Product
1	MAY 7701P539-60
1	MAY 74010335
2	WP74005546 Whirlpool RU Spacer
3	NUT, SNAP (ROUND-BLK)
3	MAY 74009377
4	WP7212P043-60 Whirlpool Oven Door Seal Gasket
5	MAY 74010338
5	WP74006515 Whirlpool Washer Screw
6	MAY 74010239
7	WP3608F117-70 Whirlpool Door Trim
7	WP74004224 Whirlpool Tape
7	WP3608F116-70 Whirlpool Door Trim
8	WP98008545 Whirlpool Screw
8	3801F832-45 Whirlpool Bracket
8	3801F831-45 Whirlpool Bracket Assembly
9	SUPPORT, GLASS (BLK)
10	MAY 74010933
11	MAY 74001842
12	MAY 74010423
13	MAY 74001729
14	MAY 74001814
15	MAY 74001663
17	MAY 74009897
18	SCREW
19	SPACER, RUBBER (BLK-SQUARE)
19	MAY 74007553
