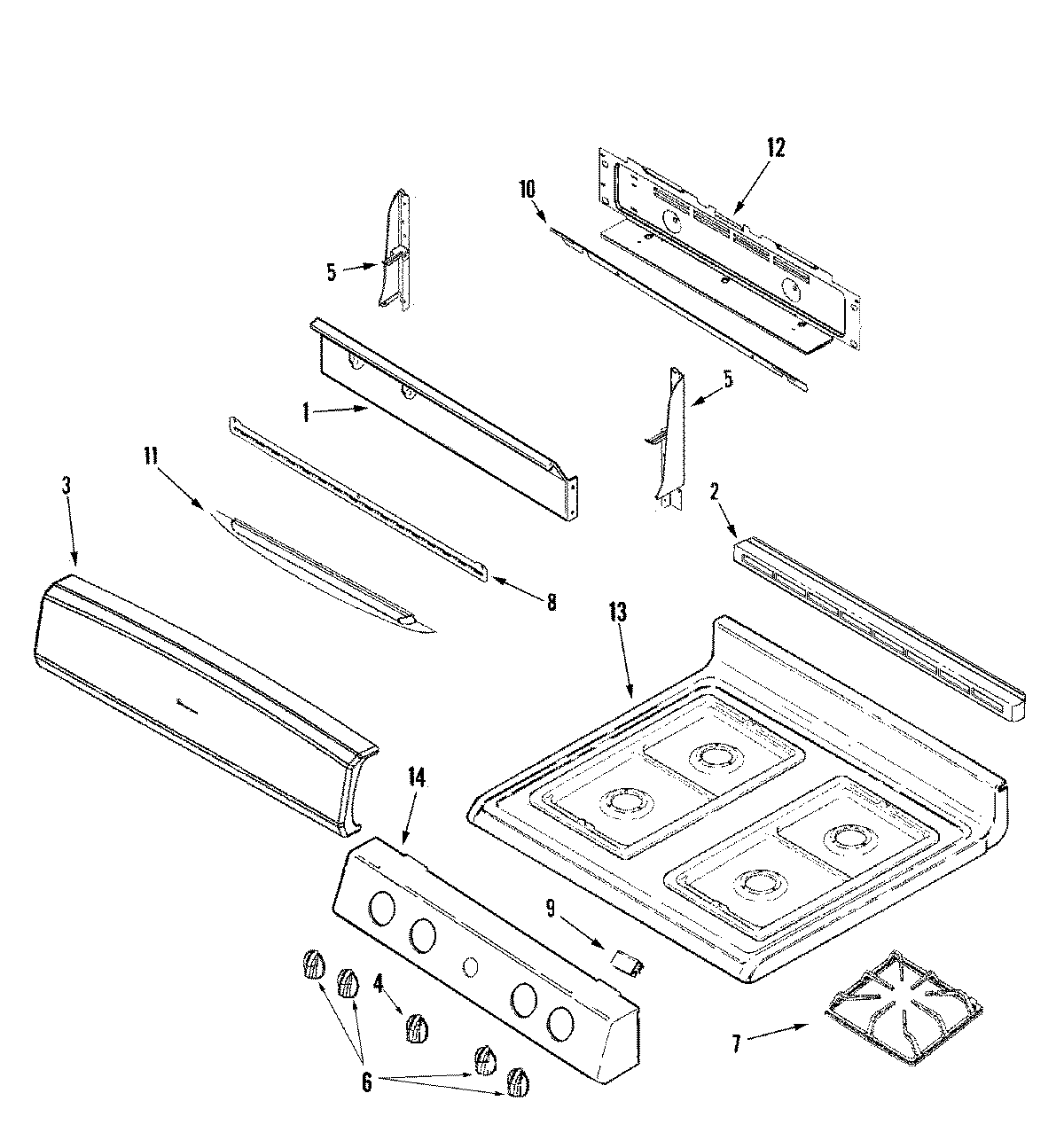

CG31400ADW 02 – CONTROL PANEL/TOP ASSEMBLY – Aparts

CG31400ADW 02 – CONTROL PANEL/TOP ASSEMBLY

Products

Position	Product
1	MAY 7101P147-60
1	MAY 74009779
2	MAY 74009797
2	SCREW (10ABX1/4P TR ZN)
3	MAY 74010464
5	WP74003976 Whirlpool Screw
5	MAY 74010202
5	MAY 74010201
7	WP7518P464-60 Whirlpool Burner Grate
8	MAY 74009780
9	MAY 74004827
10	SCREW
10	MAY 74009708
11	WP98008545 Whirlpool Screw
11	MAY 74009800
12	MAY 74006536
12	MAY 74009943
12	WP90767 Whirlpool Screw
12	MAY 71001394
13	WP74005546 Whirlpool RU Spacer
13	MAY 74003512
13	W11189172 Whirlpool Glide Drawer
14	MAY 74010465
