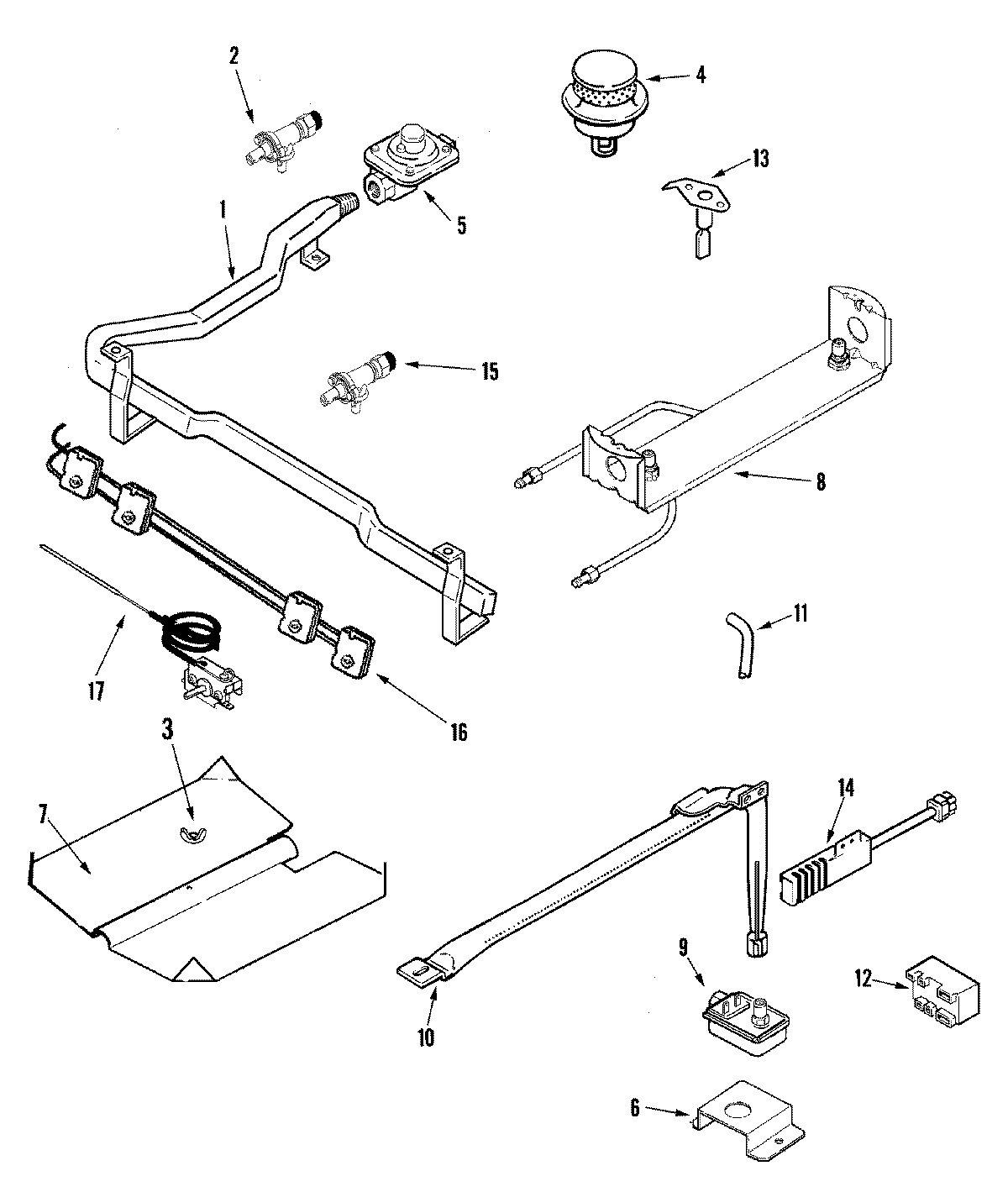

CG31400ADW 04 – GAS CONTROLS
Products
Position
Product
1
MAY 74009886
2
MAY 74009770
2
MAY 74009462
3
NUT, WING
4
WP3412D024-09 Whirlpool Oven Burner Head
4
WP3412D021-09 Whirlpool Burner Assembly
5
MAY 74006282
6
MAY 74005051
7
MAY 74002393
8
MAY 74009832
8
WP5787D105-60 Whirlpool Orifice
9
MAY 74009416
9
MAY 74009891
10
SCREW
10
MAY 74002434
11
MAY 74006417
12
8215557 Whirlpool Gas Stove Range Oven Cooktop Spark Module
13
74004053 Whirlpool Range Cooktop Top Burner Electrode Spark Igniter
13
MAY 74004410
14
74007498 Whirlpool Range Flat Igniter
14
SCREW (10-24X5/16-NI)
15
MAY 74009460
15
MAY 74009427
16
WPW10180490 Whirlpool Wire Harness
17
WP74002390 Whirlpool Oven Thermostat
17
MAY 7101P280-60
