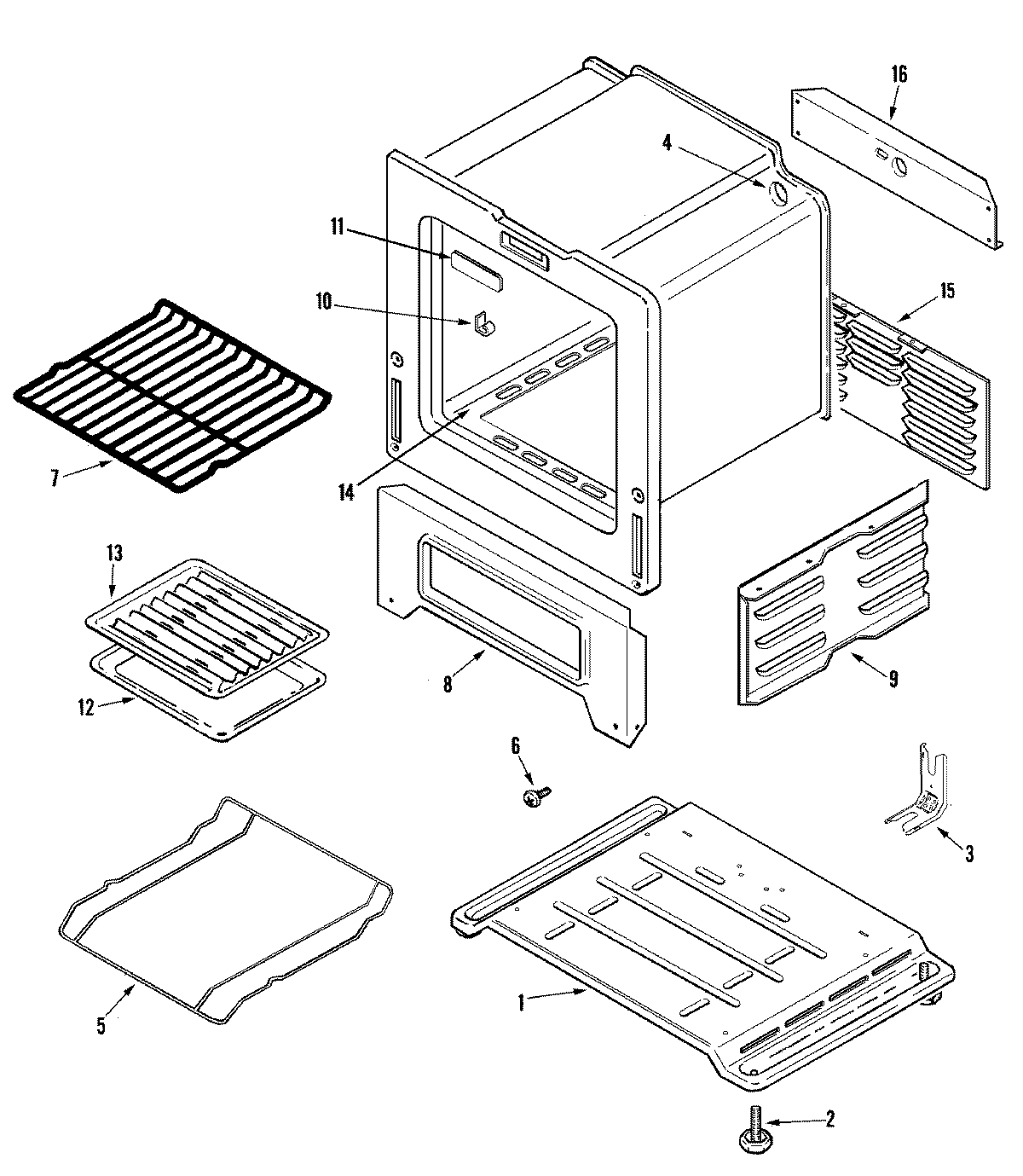

CG31400ADW 05 – OVEN/BASE

Products

Position	Product
1	MAY 74005215
2	W11665456 Whirlpool Range Level Foot
3	WP7101P485-60 Whirlpool Anchor Tip
3	WP3801F656-51 Whirlpool Range Anti-Tip Bracket
4	MAY 74002380
5	MAY 74002381
6	SCREW (8ABX1/2“-BLK)
7	WPW10282492 Whirlpool Oven Rack
8	MAY 74002327
9	MAY 74002374
9	MAY 74002375
10	WP7112P004-60 Whirlpool Thermal Clip
11	PLUG, LOCK SLOT
12	MAY Y3401F02019
13	MAY Y3413F01619
14	MAY 74002393
14	MAY 71001394
14	MAY 74002377
14	MAY 74002376
14	MAY 74011347
15	MAY 74002378
16	SCREW
16	MAY 74002379
