CG31600ADB 03 – DOOR/DRAWER

CG31600ADB 03 – DOOR/DRAWER

Written by

in

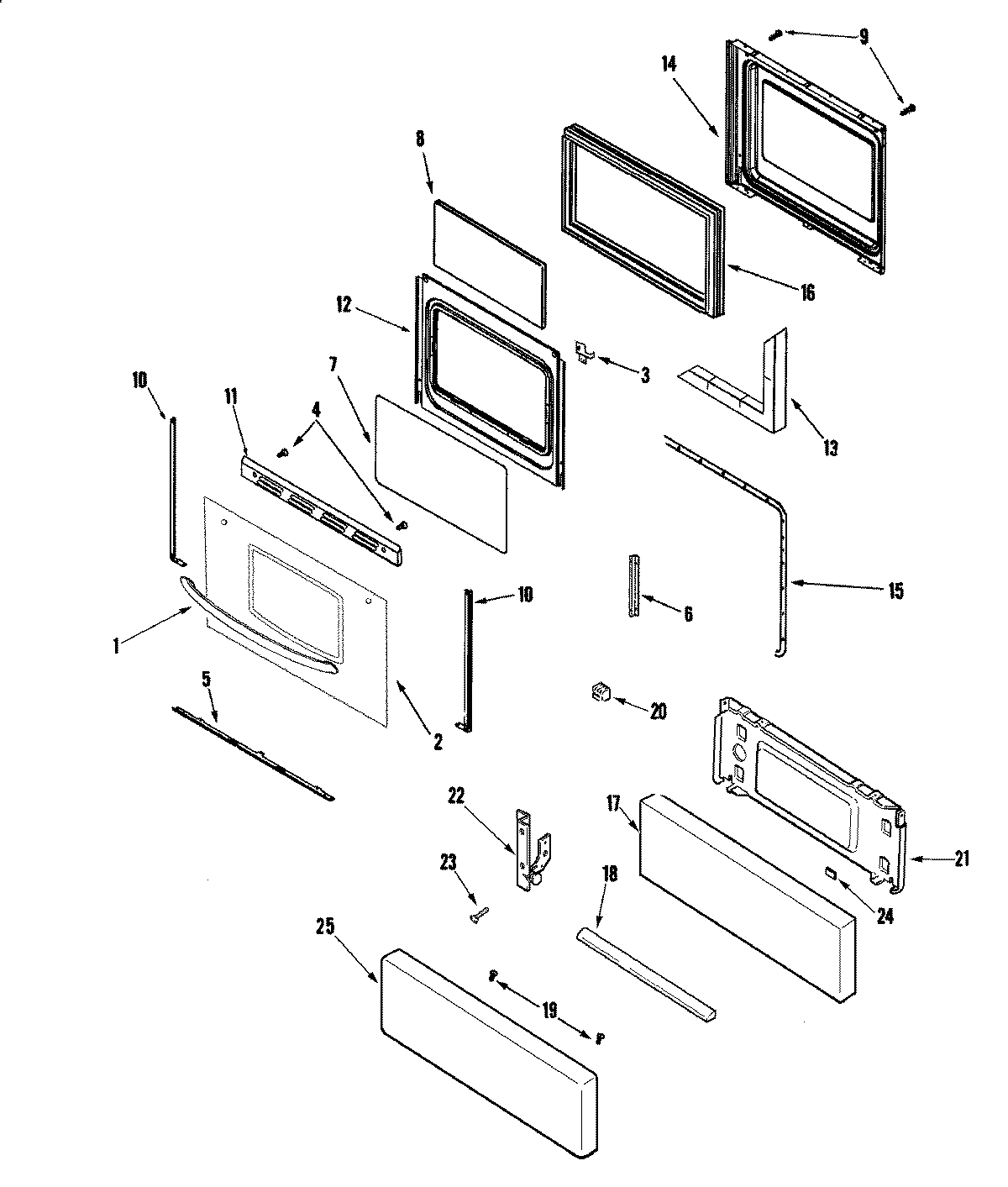

CG31600ADB 03 – DOOR/DRAWER

Products

PositionProduct
1MAY 74010338
1MAY 7701P539-60
2MAY 74010362
33801F832-45 Whirlpool Bracket
33801F831-45 Whirlpool Bracket Assembly
4WP74006515 Whirlpool Washer Screw
5SUPPORT, GLASS (BLK)
6MAY 74003650
7WP98008545 Whirlpool Screw
874003645 Whirlpool Range Oven Door Inner Glass
9SCREW
10WP3608F117-70 Whirlpool Door Trim
10WP3608F116-70 Whirlpool Door Trim
10WP74009014 Whirlpool Double Tape
11MAY 74010239
12MAY 7101P356-60
12MAY 74009502
13INSULATION, OVEN DOOR
14NUT, SNAP (ROUND-BLK)
14MAY 74009909
15WP7212P043-60 Whirlpool Oven Door Seal Gasket
16FRAME, GLASS
17MAY 74001814
18MAY 74010423
20MAY 74001663
21MAY 74007553
23MAY 74009897
24SPACER, RUBBER (BLK-SQUARE)
24WP74005546 Whirlpool RU Spacer
25MAY 74002551
