CG31600ADQ 03 – DOOR/DRAWER

CG31600ADQ 03 – DOOR/DRAWER

Written by

in

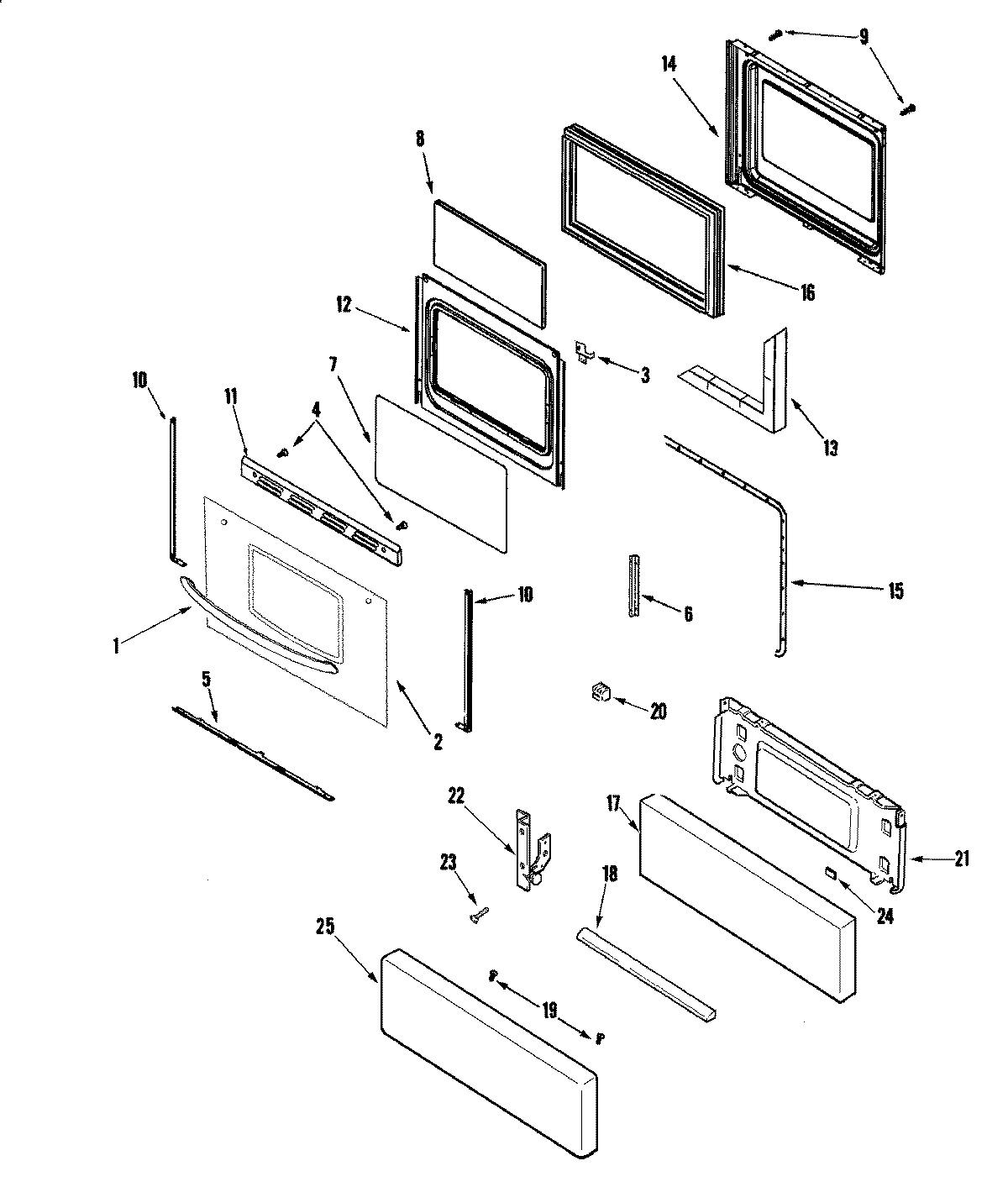

CG31600ADQ 03 – DOOR/DRAWER

Products

PositionProduct
1MAY 74010336
2MAY 74010364
33801F832-45 Whirlpool Bracket
33801F831-45 Whirlpool Bracket Assembly
4WP74006515 Whirlpool Washer Screw
4WP98008545 Whirlpool Screw
5SUPPORT, GLASS (BSQ)
6MAY 74003650
7WP74009541 Whirlpool Screw Assembly
874003645 Whirlpool Range Oven Door Inner Glass
9SCREW
10WP74009014 Whirlpool Double Tape
10TRIM, DOOR (BSQ-LT)
10TRIM, DOOR (BSQ-RT)
11MAY 74010237
12MAY 7101P356-60
12MAY 74009502
13INSULATION, OVEN DOOR
14NUT, SNAP (ROUND-BLK)
14MAY 74009909
15WP7212P043-60 Whirlpool Oven Door Seal Gasket
16FRAME, GLASS
17MAY 74001814
18MAY 74010425
20MAY 74001663
21MAY 74007553
23MAY 74009897
24WP74005546 Whirlpool RU Spacer
24SPACER, RUBBER (BLK-SQUARE)
25MAY 74005046
