CG3177VRV 02 – CONTROL PANEL – Aparts

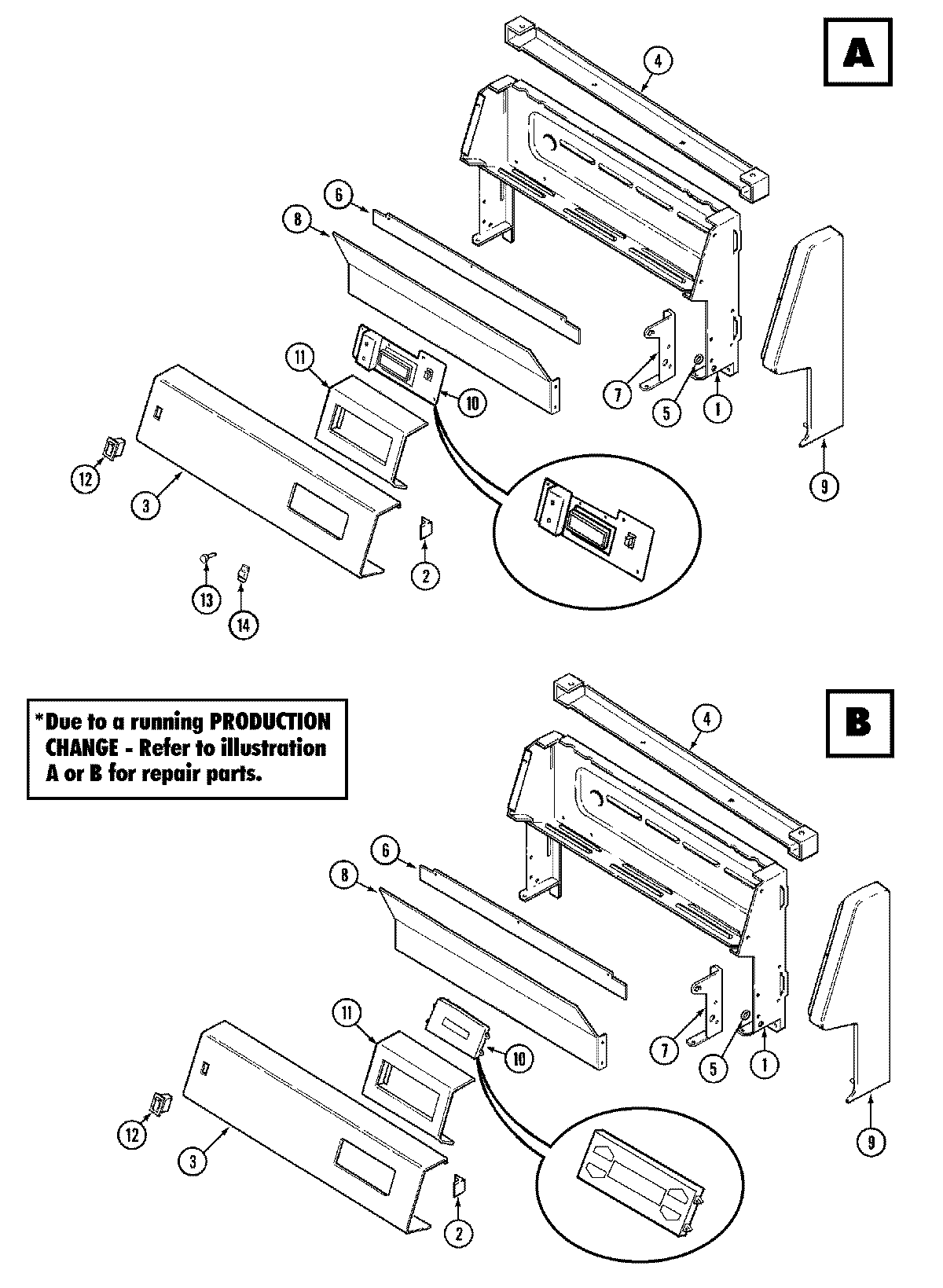

CG3177VRV 02 – CONTROL PANEL

Products

Position	Product
NI	MAY 8113P043-60
NI	MAY 16002080
NI	MAY 5180D138-60
NI	MAY 16007436
1	MAY 4005F448-45
1	MAY 4001F091-51
2	MAY 8010P083-60
3	MAY 12001094
3	MAY 7703P637-60
4	MAY 4001F064-51
5	WP3195558 Whirlpool Nut
6	MAY 8036P003-60
7	MAY 3807F454-51
7	MAY 3807F453-51
8	MAY 3604F188-09
9	MAY 7726P086-60
9	MAY 7726P085-60
10	W10799767 Whirlpool Clock Timer
11	MAY 3801F340-45
11	MAY 3801F266-45
12	MAY 7403P314-60
13	MAY 7711P473-60
14	MAY 7711P472-60
