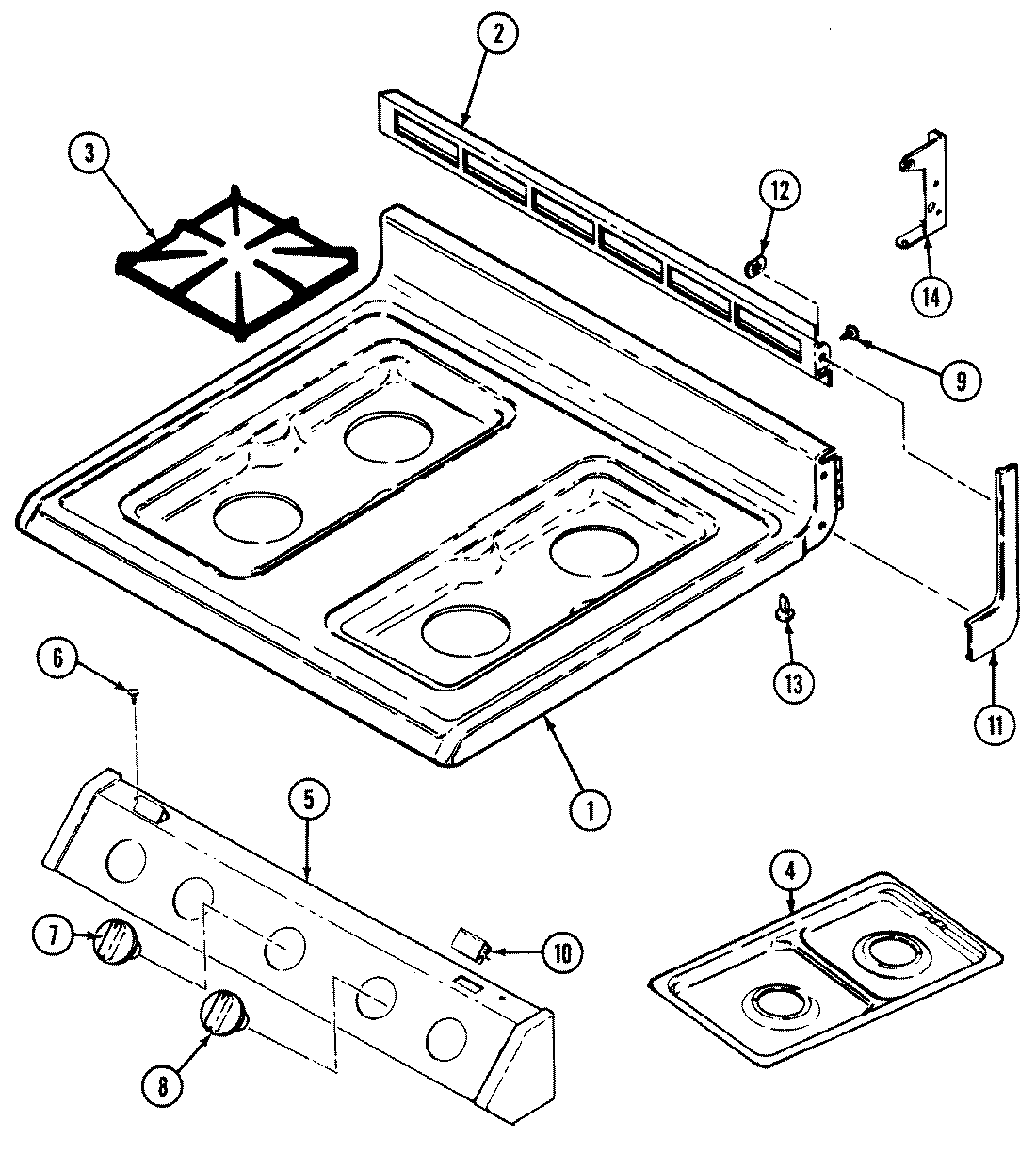

CG3177VUV 04 – TOP ASSEMBLY

CG3177VUV 04 – TOP ASSEMBLY

Written by

in

CG3177VUV 04 – TOP ASSEMBLY

Products

PositionProduct
1MAY 2001W085-81
2MAY 3608F042-26
3MAY 2003W027-26
4MAY 5401A452-60
5MAY 7712P163-60
6MAY 7118P015-60
7MAY 7731P091-60
8MAY 7733P091-60
9SCREW (10ABX1/4P TR ZN)
10MAY 7112P087-60
11MAY 8270P095-60
11MAY 7746P033-60
11MAY 7746P032-60
12MAY 7103P129-60
13MAY 8016P015-60
14MAY 3807F454-51
14MAY 3807F453-51
