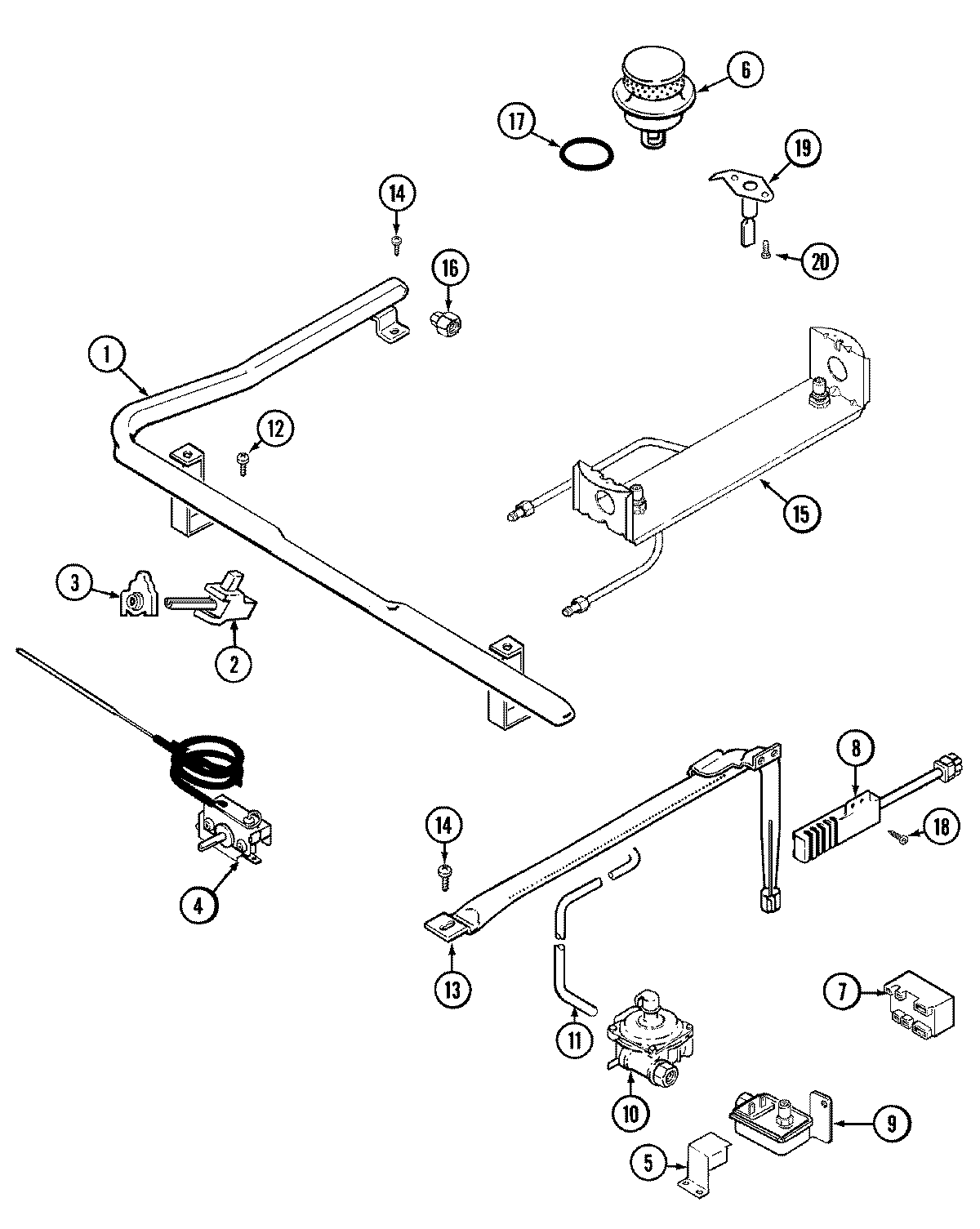

CG3177XRA 04 – GAS CONTROLS

Products

Position	Product
NI	MAY 5140D038-60
NI	MAY 5195D078-60
NI	MAY 5125A312-60
1	MAY 7513P120-60
2	MAY 7502P250-60
2	MAY 7502P217-60
3	WP7403P279-60 Whirlpool Igniter Switch
4	MAY 7101P280-60
4	MAY 7404P087-60
5	MAY 4005F433-51
6	MAY 3412D018-09
7	MAY 3807F432-45
7	MAY 7431P027-60
8	MAY 7432P076-60
9	MAY 7501P137-60
10	MAY 7507P123-60
10	WP74006429 Whirlpool Regulator
11	MAY 1555251
11	MAY 3414F104-44
12	MAY 7101P044-60
13	MAY 3403D023-45
14	SCREW
15	MAY 5187D034-60
15	MAY 5187D035-60
16	MAY 7103P130-60
17	MAY 7201P050-60
18	WP3351614 Whirlpool Screw
19	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
20	MAY 7101P315-60
