CG3177XUA 02 – CONTROL PANEL – Aparts

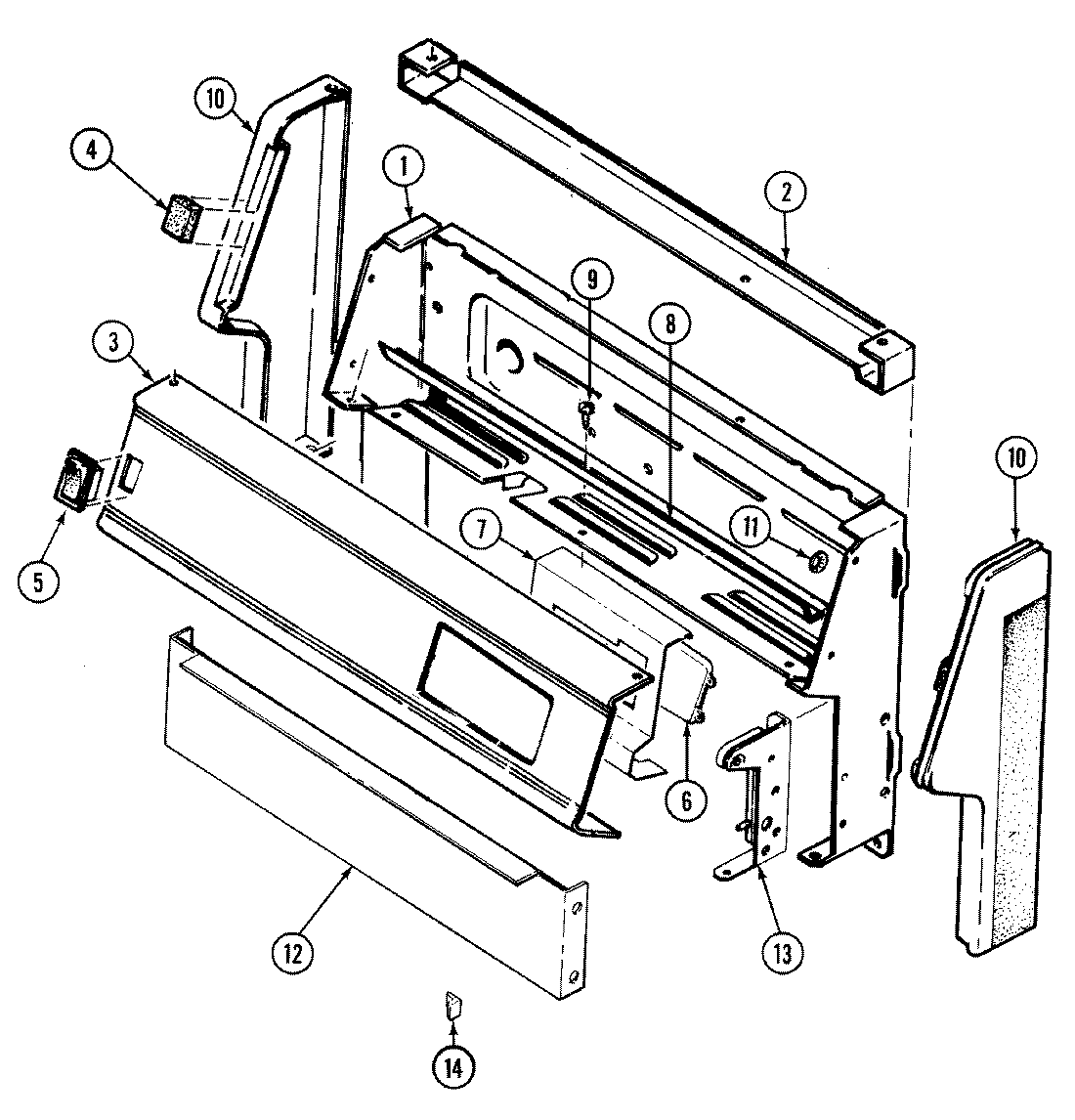

CG3177XUA 02 – CONTROL PANEL

Products

Position	Product
NI	MAY 8113P043-60
1	MAY 4001F097-51
2	MAY 4001F064-51
3	MAY 7101P331-60
3	MAY 7703P633-60
4	MAY 8010P085-60
5	7403P067-60 Whirlpool Light Switch
6	MAY 7602P118-60
7	MAY 7101P147-60
7	MAY 3801F340-45
8	MAY 8036P003-60
9	MAY 7101P303-60
10	MAY 7726P059-60
10	MAY 7726P060-60
11	MAY 7103P129-60
12	MAY 3604F188-09
13	MAY 3807F454-51
13	MAY 3807F453-51
13	SCREW (8BX3/8-NI)
14	MAY 8010P083-60
14	MAY 5180D138-60
14	MAY 5185D250-60
