CG34300ADT 01 – BODY

CG34300ADT 01 – BODY

Written by

in

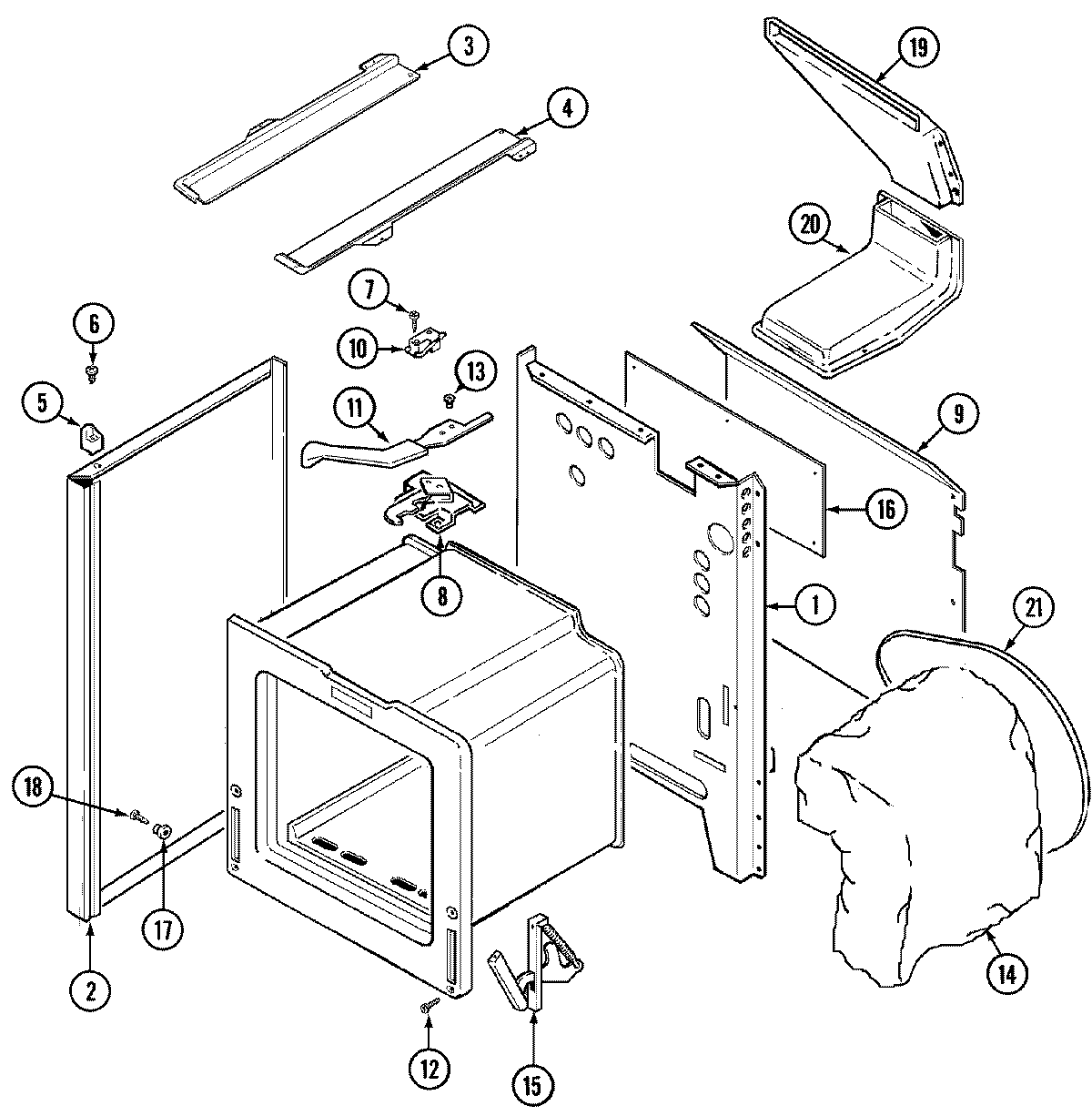

CG34300ADT 01 – BODY

Products

PositionProduct
1MAY 74003451
2MAY 74004965
2TAPE, FOIL (3“ WIDE)
3MAY 74002633
4MAY 74002632
5SPACER, MAIN TOP (RT)
5SPACER, MAIN TOP (LT)
6MAY 7101P313-60
7MAY 7101P330-60
8MAY 74003502
8MAY 74001084
9MAY 74003816
10MAY 74003383
12SCREW (10-24X5/16-NI)
13SCREW, LEVER
14MAY 74003381
14WP74010942 Whirlpool Insulation
15W10876639 Whirlpool Door Hinge Assembly
16MAY 3604F165-51
17MAY 8004P024-60
18W11693756 Whirlpool Screw Assembly
18MAY 74001449
19MAY 4022W007-19
20MAY 74002367
21MAY 74003385
