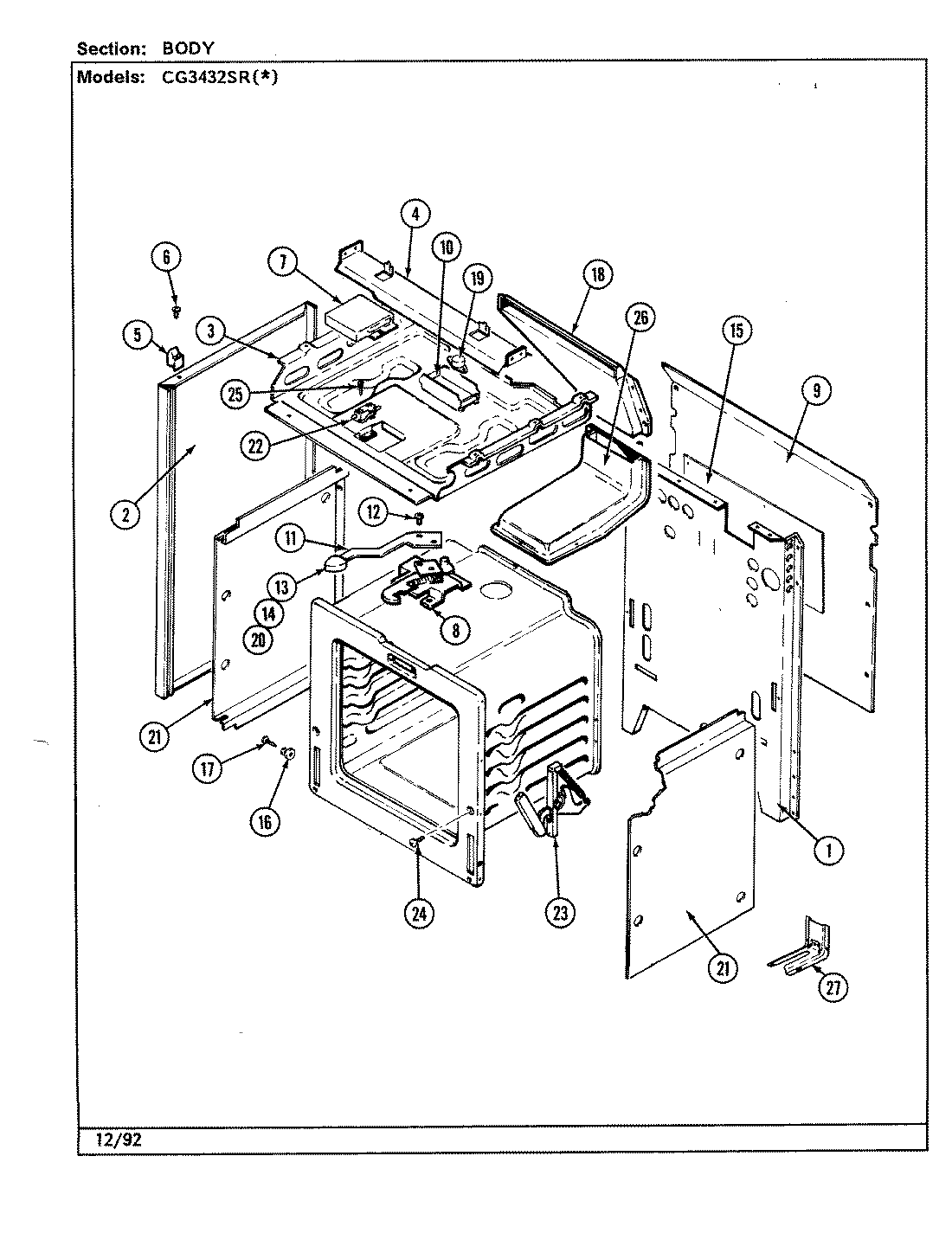

CG3432XRA 01 – BODY – Aparts

CG3432XRA 01 – BODY

Products

Position	Product
1	MAY 4002F179-80
2	MAY 2618F085-74
3	MAY 4011F210-80
3	MAY 4011F250-80
4	MAY 3807F411-51
5	SPACER, MAIN TOP (LT)
5	SPACER, MAIN TOP (RT)
6	MAY 7118P013-60
7	MAY 4005F347-51
8	MAY 4804F028-60
8	MAY 7101P290-60
8	MAY 8002P024-60
9	MAY 4005F331-51
10	MAY 3807F420-51
10	MAY 7101P076-60
11	MAY 7109P015-60
11	MAY 8009P015-60
12	SCREW, LEVER
13	MAY 7701P088-60
14	MAY 7101P289-60
14	MAY 3801F218-51
15	MAY 3604F165-51
16	MAY 8004P024-60
17	MAY 7101P300-60
18	MAY 4022W005-19
19	MAY 7403P275-60
20	MAY 7112P003-60
21	MAY 3804F103-51
22	MAY 7403P228-60
22	MAY 3801F267-45
22	MAY 7403P361-60
23	MAY 7106P032-60
24	SCREW, HINGE
25	MAY 7101P031-60
26	MAY 4006W113-45
