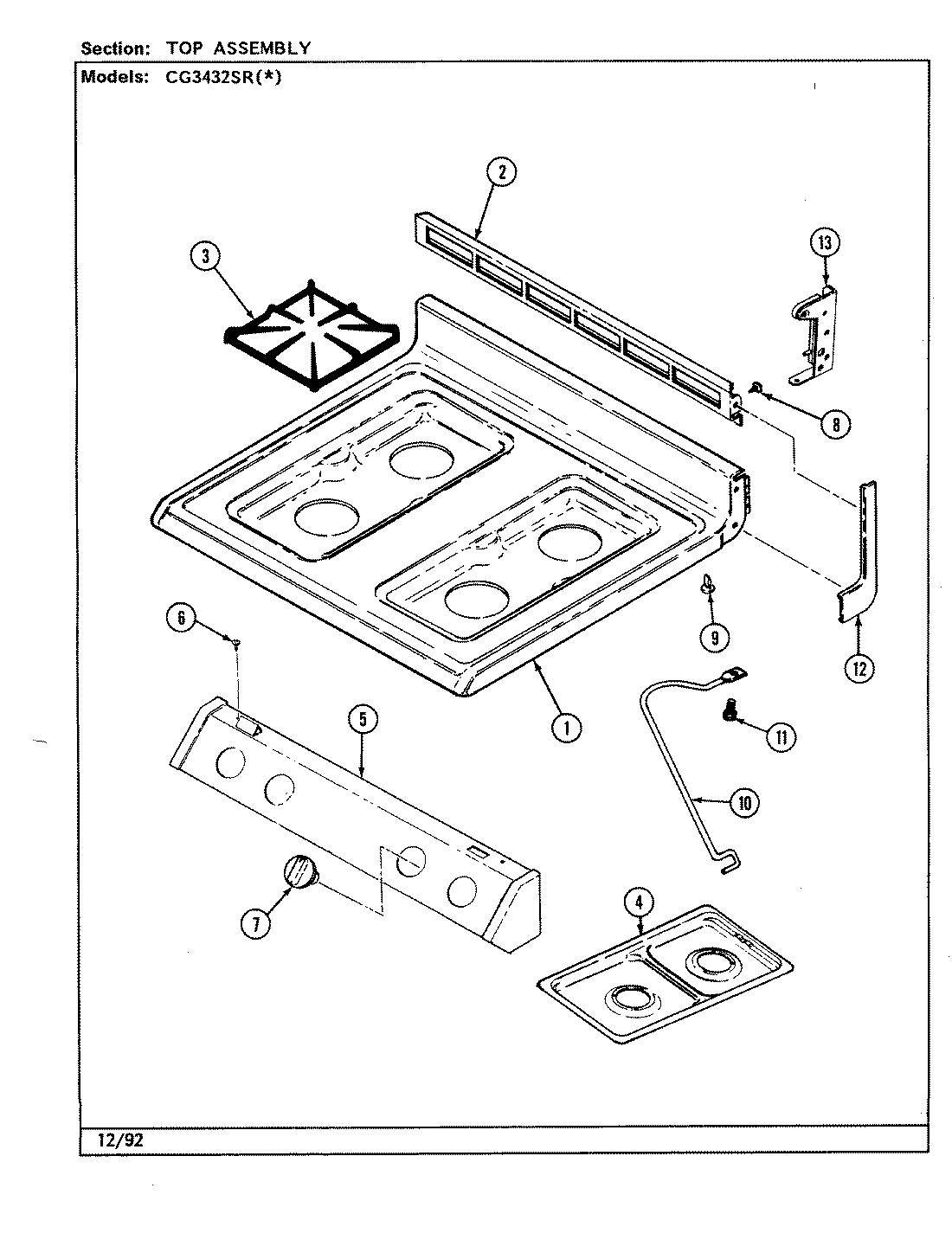

CG3432XRA 06 – TOP ASSEMBLY

CG3432XRA 06 – TOP ASSEMBLY

Written by

in

CG3432XRA 06 – TOP ASSEMBLY

Products

PositionProduct
1MAY 2001W081-84
2MAY 3608F042-09
3MAY 2003W023-00
3MAY 2003W027-00
4MAY 5401A452-60
5MAY 7712P162-60
6MAY 7118P015-60
7MAY 7733P057-60
8SCREW (10ABX1/4P TR ZN)
9MAY 8016P013-60
10MAY 7809P014-60
11MAY 7101P280-60
12MAY 7746P031-60
12MAY 7746P030-60
12MAY 8270P095-60
12MAY 7103P129-60
13MAY 3418A088-34
13MAY 3418A087-34
13MAY 8114P348-60
