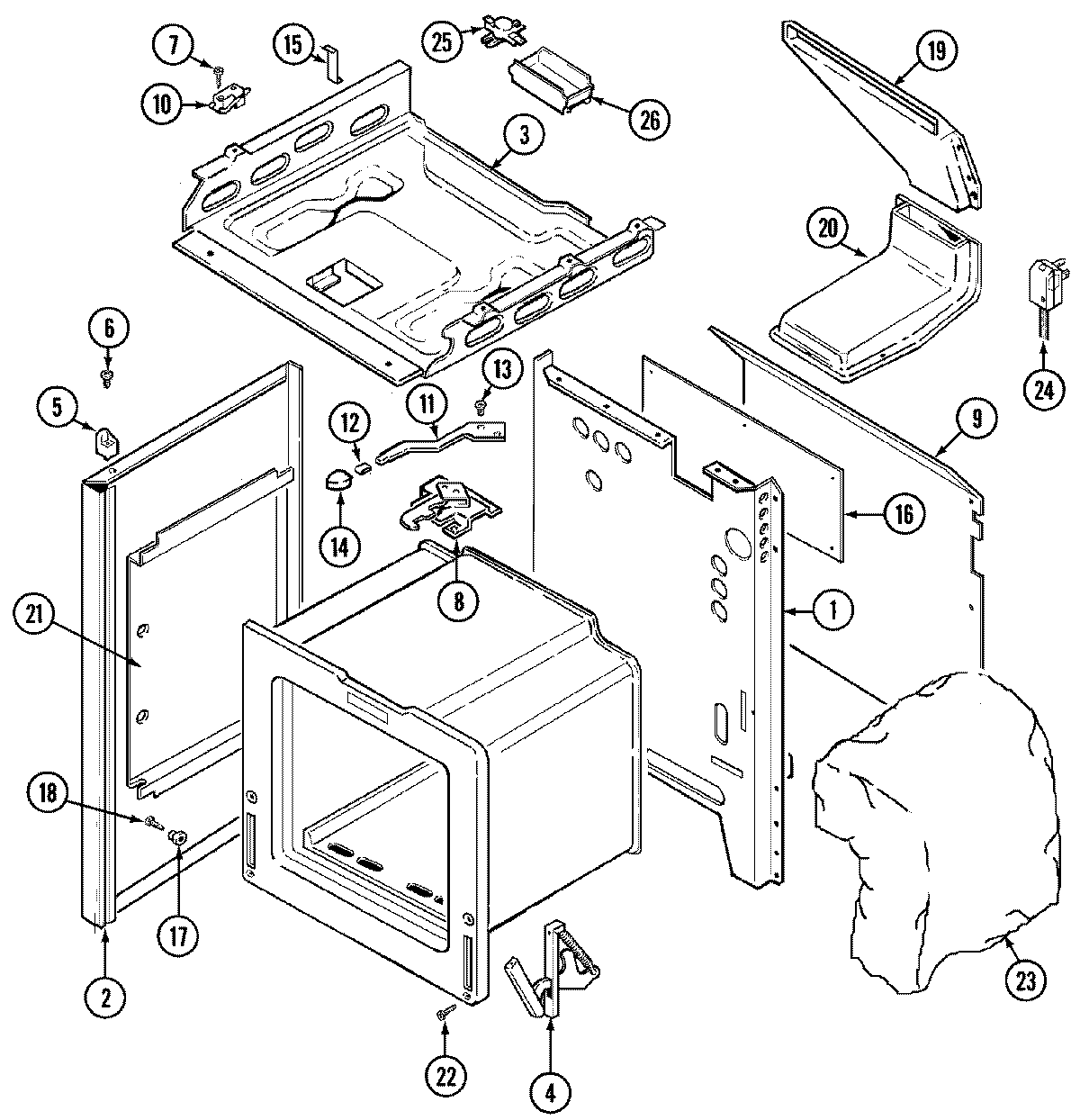

| 1 | MAY 4002F211-80 |
| 2 | MAY 74001885 |
| 2 | MAY 7003P067-60 |
| 3 | MAY 4011F231-80 |
| 3 | MAY 4011F250-80 |
| 4 | W10876639 Whirlpool Door Hinge Assembly |
| 4 | MAY 7106P055-60 |
| 5 | SPACER, MAIN TOP (RT) |
| 5 | SPACER, MAIN TOP (LT) |
| 6 | MAY 7101P313-60 |
| 7 | MAY 7101P330-60 |
| 7 | MAY 7101P130-60 |
| 8 | MAY 74001084 |
| 8 | MAY 4804F028-60 |
| 8 | MAY 7101P280-60 |
| 8 | MAY 8002P027-60 |
| 8 | MAY 74001069 |
| 9 | MAY 4005F331-51 |
| 10 | MAY 7003P063-60 |
| 10 | MAY 7403P361-60 |
| 10 | MAY 7403P363-60 |
| 11 | MAY 8009P023-60 |
| 11 | LEVER, LATCH (BLK) |
| 11 | MAY 8009P029-60 |
| 12 | MAY 7112P112-60 |
| 13 | SCREW, LEVER |
| 14 | MAY 74001719 |
| 14 | NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED) |
| 15 | MAY 3807F431-45 |
| 16 | SCREW |
| 16 | MAY 3604F165-51 |
| 17 | MAY 8004P024-60 |
| 18 | MAY 74001449 |
| 19 | SCREW (8BX3/8-NI) |
| 19 | MAY 4022W007-19 |
| 20 | WP74003976 Whirlpool Screw |
| 20 | MAY 4006W113-45 |
| 21 | MAY 3804F103-51 |
| 22 | SCREW (10-24X5/16-NI) |
| 23 | MAY 4804F036-60 |
| 23 | MAY 74001800 |
| 24 | MAY 7402P043-60 |
| 25 | SCREW |
| 25 | MAY 7403P275-60 |
| 26 | MAY 3807F420-51 |
